Home > Products > Rollers &Balls > AXK7095 70*95*4mm thrust needle roller bearing and bearing washer

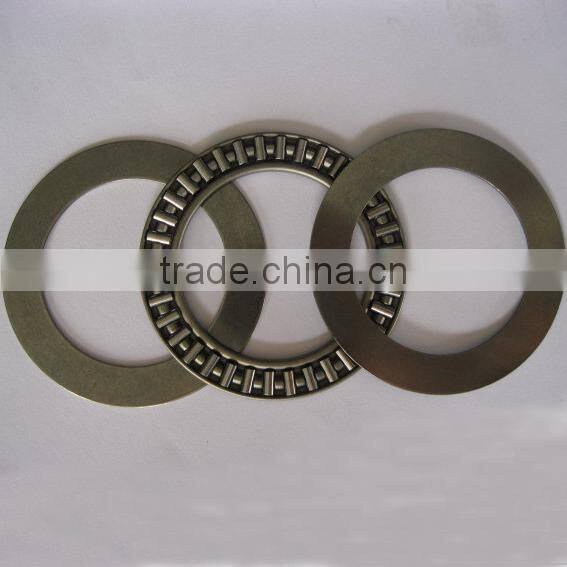

AXK7095 70*95*4mm thrust needle roller bearing and bearing washer
- 100000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Brand Name: | NTL | Bore Size: | 0, 70 | Outside Diameter: | 0, 95 |
Model Number: | AXK7095+2AS | Precision Rating: | ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5), ABEC-7(P4) | Seals Type: | Open |
Number of Row: | Single Row | Place of Origin: | Jiangsu, China |
Product Description
AXK7095 70*95*4mm thrust needle roller bearing and bearing washer
Details:
1. The thrust needle roller bearing can support the bearings with the axial directional load and so they can be used as a tray for the rolling needles and the holding stand assembly, configuration of bearings can be very compacted.
2. In case this deposition can not be realized, as series tray assembly should be recommended when the support space is big enough so that a small axial cross sectional altitude can be achieved.
|
|
| |||||||||
|
| dw | dg | Dw | Dg | dr | h | s | a | rs | |
mm | mm | ||||||||||
4 | AXK0414TN | 4 | - | - | 14 | 2 | |||||
5 | AXK0515TN | 5 | - | - | 15 | 2 | |||||
6 | AXK0619TN | 6 | - | - | 19 | 2 | |||||
8 | AXK0821TN | 8 | - | - | 21 | 2 | |||||
10 | AXK1024 | AS1024 | 10 | - | - | 24 | 2 | 2.75 | 1 | 0.5 | - |
12 | AXK1226 | AS1226 | 12 | - | - | 26 | 2 | 2.75 | 1 | 0.5 | - |
15 | AXK1528 | AS1528 | 15 | 16 | 28 | 28 | 2 | 2.75 | 1 | 0.5 | 0.3 |
17 | AXK1730 | AS1730 | 17 | 18 | 30 | 30 | 2 | 2.75 | 1 | 0.5 | 0.3 |
20 | AXK2035 | AS2035 | 20 | 21 | 35 | 35 | 2 | 2.75 | 1 | 0.5 | 0.3 |
25 | AXK2542 | AS2542 | 25 | 26 | 42 | 42 | 2 | 3 | 1 | 1 | 0.6 |
30 | AXK3047 | AS3047 | 30 | 32 | 47 | 47 | 2 | 3 | 1 | 1 | 0.6 |
35 | AXK3552 | AS3552 | 35 | 37 | 52 | 52 | 2 | 3.5 | 1 | 1 | 0.6 |
40 | AXK4060 | AS4060 | 40 | 42 | 60 | 60 | 3 | 3.5 | 1 | 1 | 0.6 |
45 | AXK4565 | AS4565 | 45 | 47 | 65 | 65 | 3 | 4 | 1 | 1 | 0.6 |
50 | AXK5070 | AS5070 | 50 | 52 | 70 | 70 | 3 | 4 | 1 | 1 | 0.6 |
55 | AXK5578 | AS5578 | 55 | 57 | 78 | 78 | 3 | 5 | 1 | 1 | 0.6 |
60 | AXK6085 | AS6085 | 60 | 62 | 85 | 85 | 3 | 4.75 | 1 | 1.5 | 1 |
65 | AXK6590 | AS6590 | 65 | 67 | 90 | 90 | 3 | 5.25 | 1 | 1.5 | 1 |
70 | AXK7095 | AS7095 | 70 | 72 | 95 | 95 | 4 | 5.25 | 1 | 1.5 | 1 |
75 | AXK75100 | AS75100 | 75 | 77 | 100 | 100 | 4 | 5.75 | 1 | 1.5 | 1 |
80 | AXK80105 | AS80105 | 80 | 82 | 105 | 105 | 4 | 5.75 | 1 | 1.5 | 1 |
85 | AXK85110 | AS85110 | 85 | 87 | 110 | 110 | 4 | 5.75 | 1 | 1.5 | 1 |
90 | AXK90120 | AS90120 | 90 | 92 | 120 | 120 | 4 | 6.5 | 1 | 1.5 | 1 |
100 | AXK100135 | AS100135 | 100 | 102 | 135 | 135 | 4 | 7 | 1 | 1.5 | 1 |
110 | AXK100145 | AS110145 | 110 | 112 | 145 | 145 | 4 | 7 | 1 | 1.5 | 1 |
120 | AXK120155 | AS120155 | 120 | 122 | 155 | 155 | 4 | 7 | 1 | 1.5 | 1 |
130 | AXK130170 | AS130170 | 130 | 132 | 170 | 170 | 5 | 9 | 1 | 1.5 | 1 |
140 | AXK140180 | AS140180 | 140 | 142 | 178 | 180 | 5 | 9.5 | 1 | 1.5 | 1 |
150 | AXK150190 | AS150190 | 150 | 152 | 188 | 190 | 5 | 9.5 | 1 | 1.5 | 1 |
160 | AXK160200 | AS160200 | 160 | 162 | 198 | 200 | 5 | 9.5 | 1 | 1.5 | 1 |
Contact information
Changsha Terry Machinery Co.,Ltd
E-mail: emily @ntl-bearing.com
Skype: Emily Cosmic
Mobile: 0731-85782665
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy.
We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields.
Our Advantages
Products
Big volume in Stock, No MOQ required
We comply with all the international standards, such as ISO9001 and TS16949 standards.
Personnel
Our sales persons are well trained to accommodate your requests and speak English for your convenience.
Our technicians and engineers have 23 years of Experience in the Bearing Industry.
Service & Quality control
We supply detailed drawings and offer whenever necessary.
We inspect every piece of bearing by ourselves before delivery.
