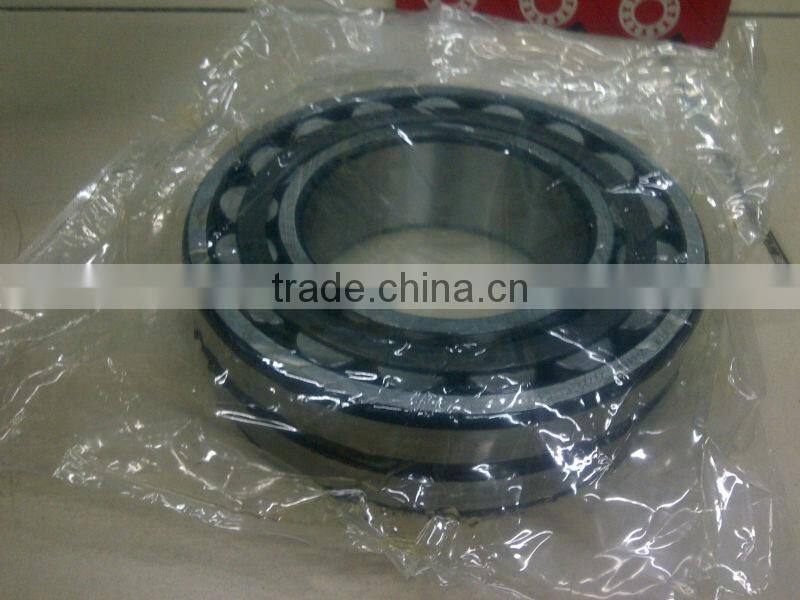

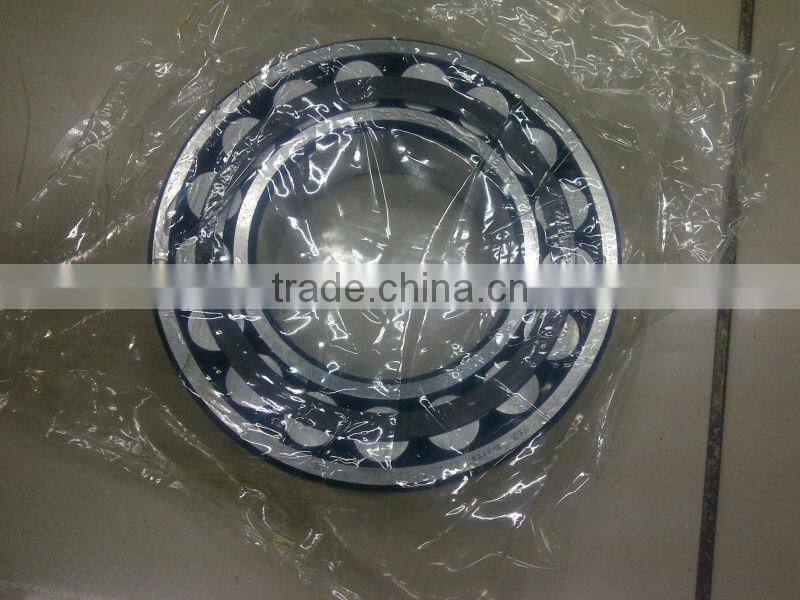

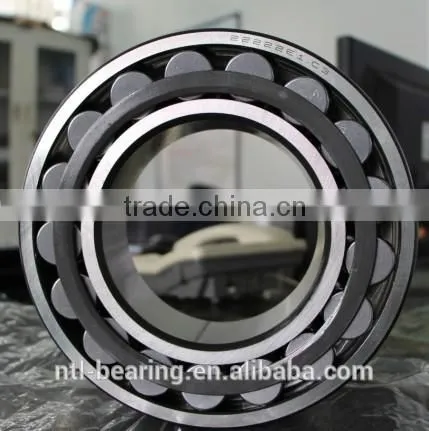

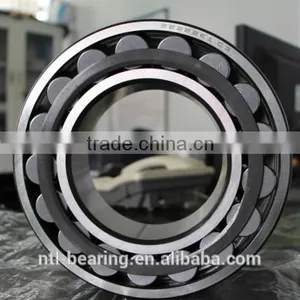

High clearance spherical roller bearing 22222 E1.C3
roller bearings are inherently self-aligning and very robust. They have two rows of rollers which make the bearings able to carry heavy loads. The TVB spherical roller bearings mainly includes CC, CA, CAE, MB and E type. TVB can provide a wide range of sizes of several ISO Dimension Series and also includes special designs, for example, for vibrating screens and other applications. Special bearings can also be customized as required based on the standard bearings.
Spherical Roller Bearing CC series
Spherical Roller Bearing CA series
Spherical Roller Bearing CAE series
Spherical Roller Bearing MB series
Spherical Roller Bearing E series Parts Of Other Spherical Roller Bearing Types
1,Dimension
Overall dimension of bearing listed in beaing table accords to ISO015-1981.
2,Angular alignment tolerance
Self-aligning roller bearing is designed in such a way that it is self-aligning.That means that bearing can adjust itself and angular alignment tolerance between outer rings.Under normal load and working condition and inner ring rotates,the unsymmetrical value listed in below table is allowed.Achieving completely specifide value is subject to design and seal type of configured bearing.
3,Tolerance
The self-anligning roller bearing with cylindrical bore or tapered core is of common tolerance level .
4,Internal clearance
According to the WQK standard,self-aligning roller bearing is of common tolerance level in internal clearance in its radial direction.Almost all bearings can be supplied at C3 clearance,or even higher level C4 clearance.Bearings with dimension less than common level:C2 clearance can also be supplide.Please consult first to check supply status for bearing with non-standard radial clearance (includingC5).These clearance values are used for zero load testing and shaft,which remains uninstalled.
Besides CA type, we can provide CC and MB structure for special clients.
5.Lubrication
Open spherical roller bearings can be lubricated with oil or grease.
Most spherical roller bearings have a circumferential groove and three lubrication holes in the outer ring for lubrication. In bearings of series 239 with an outside diameter < 320 mm, this is indicated by the suffix S.
Bearings of series 213 with a bore diameter up to 35 mm do not have a lubrication groove and lubrication hole.
If shafts with a vertical axis are supported using spherical roller bearings, particular attention must be paid to ensuring the reliable provision of lubricant. In such cases, oil lubrication should be used.
Operating temperature
Spherical roller bearings are dimensionally stable up to +200 ° C. Bearings with metal cages can be used at operating temperatures from -30 °C to +200 °C.
Bearings with cages made from glass fibre reinforced polyamide are suitable up to +120 °C.
Cages
The standard cages for spherical roller bearings are shown in the table and link.
Spherical roller bearings with a rigid central rib on the inner ring (design without suffix E1) have solid cages or sheet metal cages made from brass. Bearings with sheet metal cages do not have a cage suffix.
In bearings with the suffix MB, the solid brass cages are guided on the inner ring while, in bearings with the suffix MA, they are guided on the outer ring, Figure 2. Bearings with the suffix M have a roller-guided solid brass cage, Figure 2.
X-life bearings
Bearings of series 213..-E1, 222..-E1, 223..-E1, 240..-E1 and 241..-E1 without a cage suffix have sheet steel cages. The two cage halves are retained by a guidance ring in the outer or inner ring, Figure 1.
In bearings of series 223..-E1, 240..-E1 and 241..-E1, all sheet steel cages have special protection against wear by means of surface hardening or coating.
The other bearings of E1 design have solid cages made from glass fibre reinforced polyamide 66 or solid brass cages (suffix TVPB or M), Figure 2.
Check the chemical resistance of polyamide to synthetic greases and lubricants with EP additives.
Aged oil and additives in the oil can impair the operating life of plastic cages at high temperatures.
The oil change intervals must be observed
Name | Spherical roller bearing | ||
Certificate | ISO9001:2001 | ||
Precision | P0,P6,P5 | Clearance | C1, C2, C3, C4, C5, C6 |
Bore Size: | 100mm-1800mm | Outside diameter | 150mm-2180mm |
Retainer | CC, CA, CCK, CAK, E, EK, ECAC, ECA, MB, MA, F, FA | ||
Features | Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending. Spherical roller bearings are leading in design and can, in addition to high radial loads, accommodate high axial loads acting in both directions. – open bearings – sealed bearings – Bearings for vibratory applications. | ||
Package | Plastic paper+Kraft paper+ blue belt + plywood case outer | ||
Price | FOB,CFR, CIF | Delivery Time | 15-30 days |
If any questions,just contact with us.
Regards
Sophia
