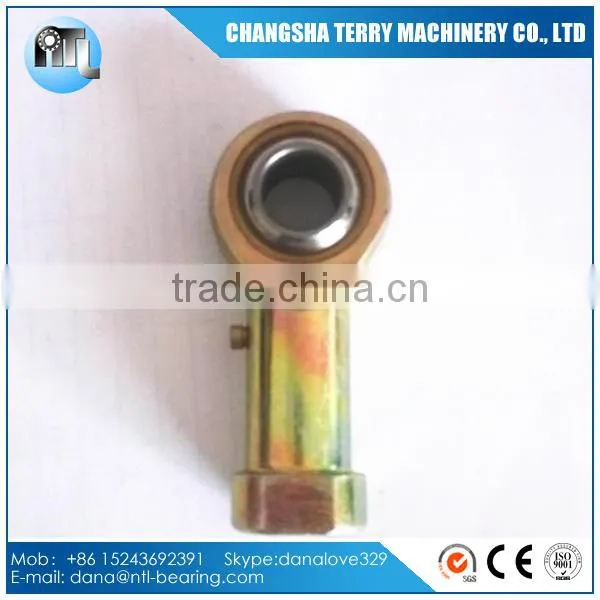

PHS16 Female Rod End Bearing
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
5, 30
Model Number:
PHS16
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Male Thread Ball Joint Rod End Bearing POS8US$ 0.7 - 0.7MOQ: 10 Perches -
Good Quality Radial Spherical Plain Bearing GEBK10 PB10US$ 1 - 1.2MOQ: 10 Pieces
-
Reliable GX30S Spherical Plain Thrust BearingUS$ 3.2 - 3.3MOQ: 1 Piece
-
Straight Swivel Ball Joint Rod End Bearing SQD6 SQD8US$ 1.6 - 1.9MOQ: 100 Pieces
-
Angular Contact Spherical Plain Bearing GAC70SUS$ 10.8 - 11MOQ: 1 Piece
Brand Name
NTL
Bore Size
5, 30
Model Number
PHS16
Place of Origin
Jiangsu, China
Precision Rating
High precision
rod end joint bearing rod end bearing
Aplication
Joint bearing is widely used in engineering hydraulic cylinder, forming machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industry. The joint bearing and classification of joint bearing is spherical plain bearing, the basic type is composed of a spherical sliding spherical contact surface, within the outer ring.
Datasheet
| Dimensions (mm) | ||||||||||
| d | Threads | D | B | B1 | d1 | L | L1 | L2 | W | |
| PHS 5 | 5 | M5×0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 14 | 9 |
| PHS 6 | 6 | M6×1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 14 | 11 |
| PHS 8 | 8 | M8×1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 17 | 14 |
| PHS 10 | 10 | M10×1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 21 | 17 |
| PHS 12 | 12 | M12×1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 19 |
| PHS 14 | 14 | M14×2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 22 |
| PHS 16 | 16 | M16×2 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 22 |
| PHS 18 | 18 | M18×1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 27 |
| PHS 20 | 20 | M20×1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 30 |
| PHS 22 | 22 | M22×1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 43 | 32 |
