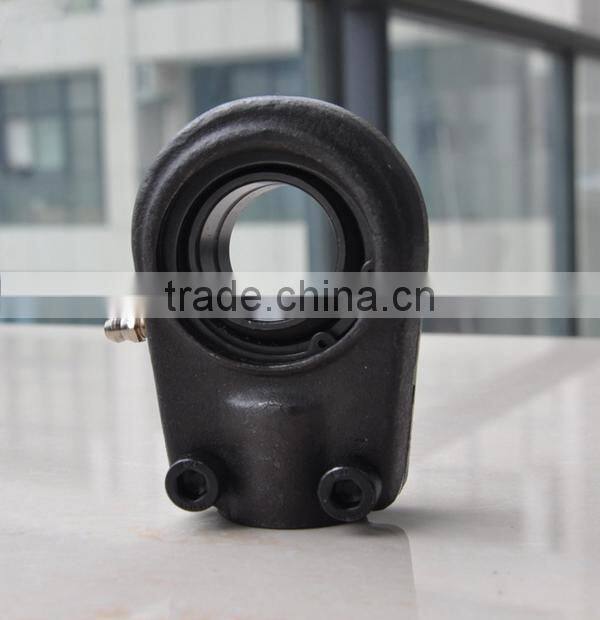

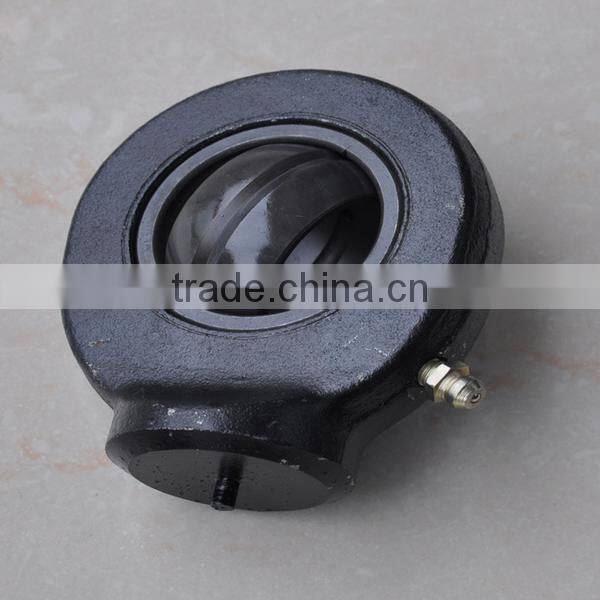

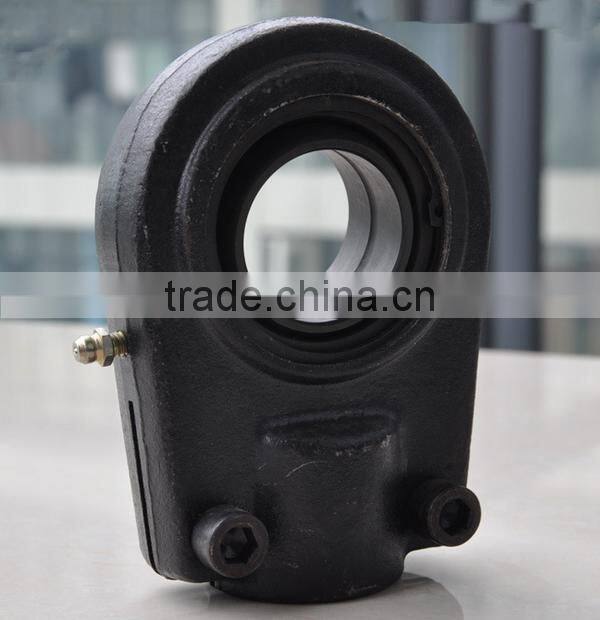

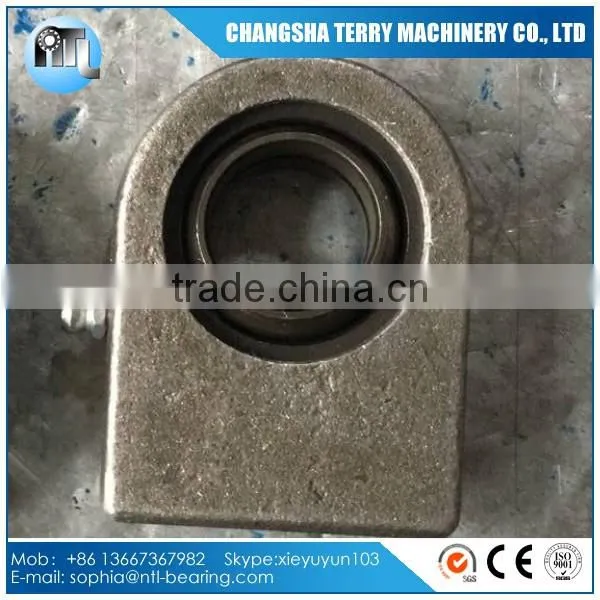

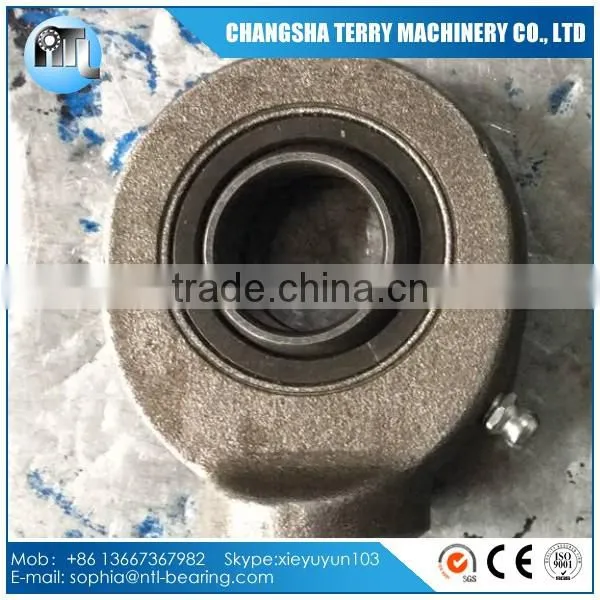

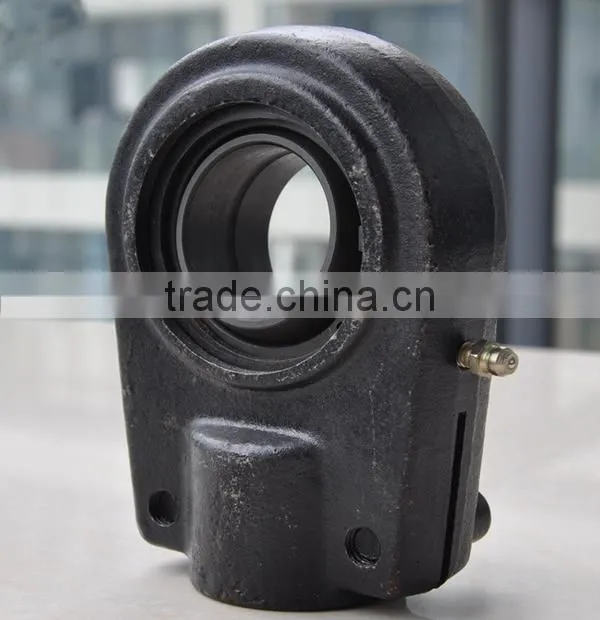

Oil Cylinder Earrings Spherical Plain Bearing GF40DO
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.
Introduction:
1. Bearings stretching rod or housing is made up of weldable steel.
2. The type GK..DO is made up of a spherical plain bearing of type GE..ES and a stretching rod with welding slope, there is a dowel pin at the end of the rod.
3. Spherical plain bearing is a special structure of the sliding bearing. Its structure is simpler than the Rolling by an inner and outer one within the sphere of spherical, can withstand a larger load, according to their different types and structures that can withstand the radial load, shaft to load or radial, axial joint load at the same time.
Material:
Ball: Chromium Steel GCr15, heat treated, surface phosphate-treated
Race: Chromium Steel GCr15, heat treated, surface phosphate-treated
Body: Low carbon steel, heat treated, nickle plated
| Bearing no. | Size (mm) | basic load rating | weight | |||||||||
| (g) | ||||||||||||
| d | C1 | B | d2 | L | h2 | dk | d1 | D | Cd | Cs | ||
| GF20DO | 20 | 19 | 16 | 50 | 63 | 38 | 29 | 24.1 | 35 | 30 | 67 | 350 |
| GF25DO | 25 | 23 | 20 | 55 | 72.5 | 45 | 35.5 | 29.3 | 42 | 48 | 69.5 | 530 |
| GF30DO | 30 | 28 | 22 | 65 | 83.5 | 51 | 40.7 | 34.2 | 47 | 62 | 118 | 870 |
| GF35DO | 35 | 30 | 25 | 83 | 103 | 61 | 47 | 39.7 | 55 | 80 | 196 | 1500 |
| GF40DO | 40 | 35 | 28 | 100 | 119 | 69 | 53 | 45 | 62 | 100 | 300 | 2400 |
| GF45DO | 45 | 40 | 32 | 110 | 132 | 77 | 60 | 50.7 | 68 | 127 | 380 | 3400 |
| GF50DO | 50 | 40 | 35 | 123 | 150 | 88 | 66 | 55.9 | 75 | 156 | 440 | 4400 |
| GF60DO | 60 | 50 | 44 | 140 | 170 | 100 | 80 | 66.8 | 90 | 245 | 570 | 7100 |
| GF70DO | 70 | 55 | 49 | 164 | 197 | 115 | 92 | 77.8 | 105 | 315 | 695 | 10500 |
| GF80DO | 80 | 60 | 55 | 180 | 231 | 141 | 105 | 89.4 | 120 | 400 | 780 | 15000 |
| GF90DO | 90 | 65 | 60 | 226 | 263 | 150 | 115 | 98.1 | 130 | 490 | 1340 | 23500 |
If you need,just feel free to contact with us.
