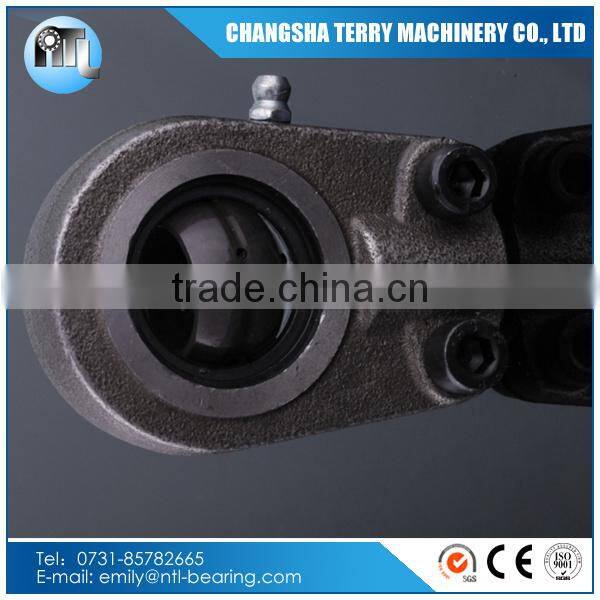

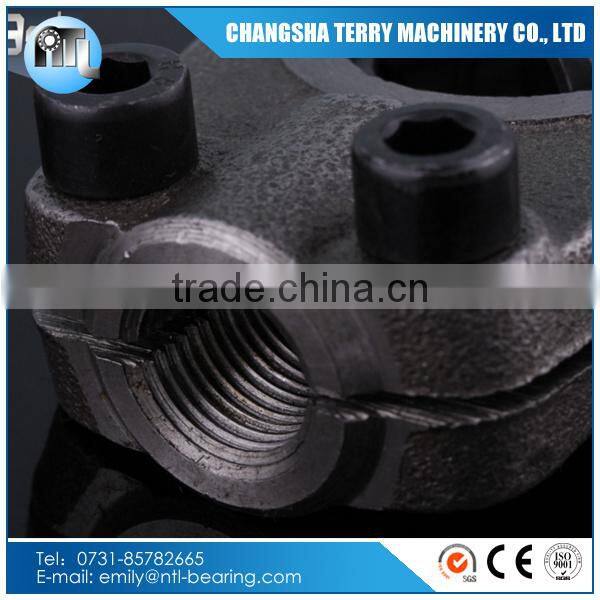

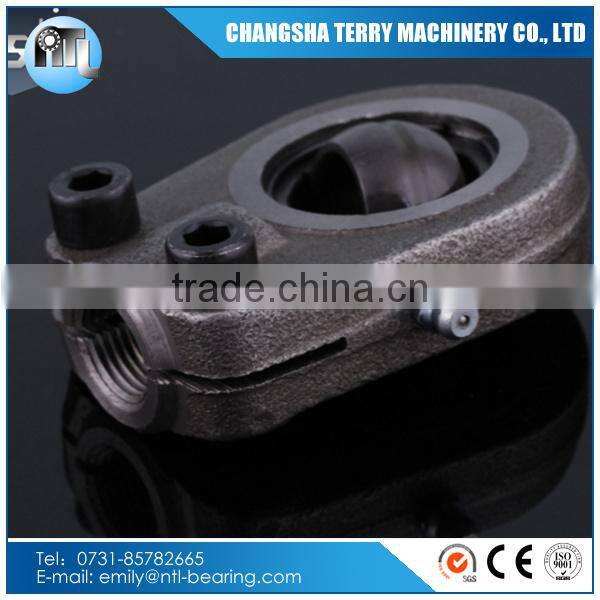

GK 25DO factory supply hydraulic rod end bearing
Specification
| GK..DO | Dimensions (mm) | Load Ratings (kn) | Weight (kg) | ||||
| Type | d | B | dk | a° | Dynamic | Static | |
| GK25DO | 25 | 20 | 35.5 | 7 | 48 | 66 | 0.43 |
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.
Introduction:
1. Bearings stretching rod or housing is made up of weldable steel.
2. The type GK..DO is made up of a spherical plain bearing of type GE..ES and a stretching rod with welding slope, there is a dowel pin at the end of the rod.
3. Spherical plain bearing is a special structure of the sliding bearing. Its structure is simpler than the Rolling by an inner and outer one within the sphere of spherical, can withstand a larger load, according to their different types and structures that can withstand the radial load, shaft to load or radial, axial joint load at the same time.
Material:
Ball: Chromium Steel GCr15, heat treated, surface phosphate-treated
Race: Chromium Steel GCr15, heat treated, surface phosphate-treated
Body: Low carbon steel, heat treated, nickle plated
Data sheet:
| Designation | d | B | dk | C1 max | d2 max | h | L2 max | d5 max | d6 | e | rs min | α | Dynamic | Static | Weight |
| load(KN) | load(KN) | (Kg) | |||||||||||||
| GK10DO | 10 | 9 | 16 | 7 | 29 | 24 | 38.5 | 15 | 3 | 2 | 0.3 | 12 | 8.1 | 15 | 0.041 |
| GK12DO | 12 | 10 | 18 | 8 | 34 | 27 | 44 | 17.5 | 3 | 2 | 0.3 | 10 | 10 | 20 | 0.066 |
| GK15DO | 15 | 12 | 22 | 10 | 40 | 31 | 51 | 21 | 4 | 2.5 | 0.3 | 8 | 16 | 24 | 0.12 |
| GK17DO | 17 | 14 | 25 | 11 | 46 | 35 | 58 | 24 | 4 | 2.5 | 0.3 | 10 | 21 | 31 | 0.19 |
| GK20DO | 20 | 16 | 29 | 13 | 53 | 38 | 64.5 | 27.5 | 4 | 2.5 | 0.3 | 9 | 30 | 42 | 0.23 |
| GK25DO | 25 | 20 | 35.5 | 17 | 64 | 45 | 77 | 33.5 | 4 | 3 | 0.6 | 7 | 48 | 66 | 0.43 |
| GK30DO | 30 | 22 | 40.7 | 19 | 73 | 51 | 87.5 | 40 | 4 | 3 | 0.6 | 6 | 62 | 87 | 0.64 |
| GK35DO | 35 | 25 | 47 | 21 | 82 | 61 | 102 | 47 | 4 | 3 | 0.6 | 6 | 79 | 99 | 0.96 |
| GK40DO | 40 | 28 | 53 | 23 | 92 | 69 | 115 | 52 | 4 | 4 | 0.6 | 7 | 99 | 122 | 1.3 |
| GK45DO | 45 | 32 | 60 | 27 | 102 | 77 | 128 | 58 | 6 | 5 | 0.6 | 7 | 127 | 160 | 1.8 |
| GK50DO | 50 | 35 | 66 | 30 | 112 | 88 | 144 | 62 | 6 | 5 | 0.6 | 6 | 156 | 193 | 2.5 |
| GK60DO | 60 | 44 | 80 | 38 | 135 | 100 | 167.5 | 70 | 6 | 5 | 1 | 6 | 245 | 294 | 3.9 |
| GK70DO | 70 | 49 | 92 | 42 | 160 | 115 | 195 | 80 | 6 | 6 | 1 | 6 | 313 | 406 | 6.6 |
| GK80DO | 80 | 55 | 105 | 47 | 180 | 141 | 231 | 95 | 6 | 6 | 1 | 6 | 400 | 494 | 8.7 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
9. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
GK 25DO Turkey market popular Oil Cylinder earrings
Skype:emily-xin
Whatsapp:+8618374976461
Welcome to enquire for more details!
