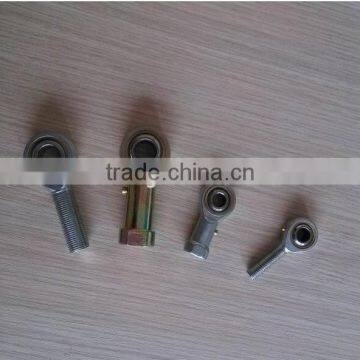

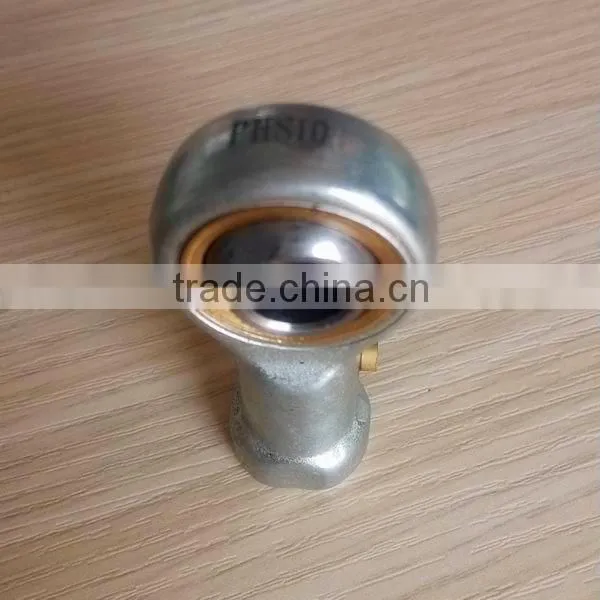

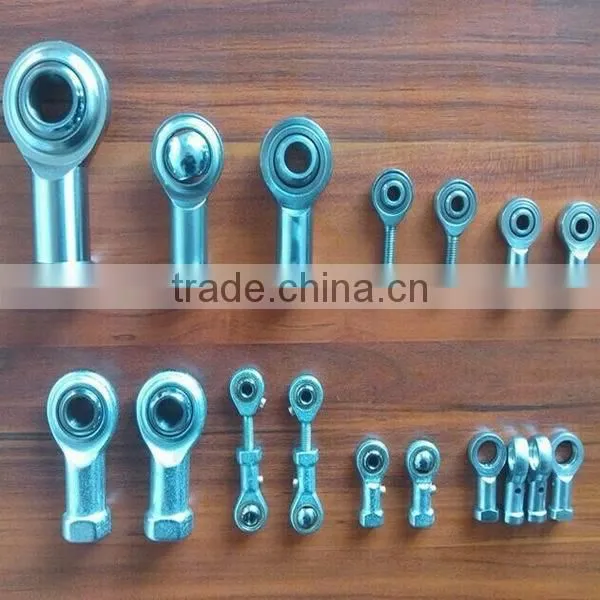

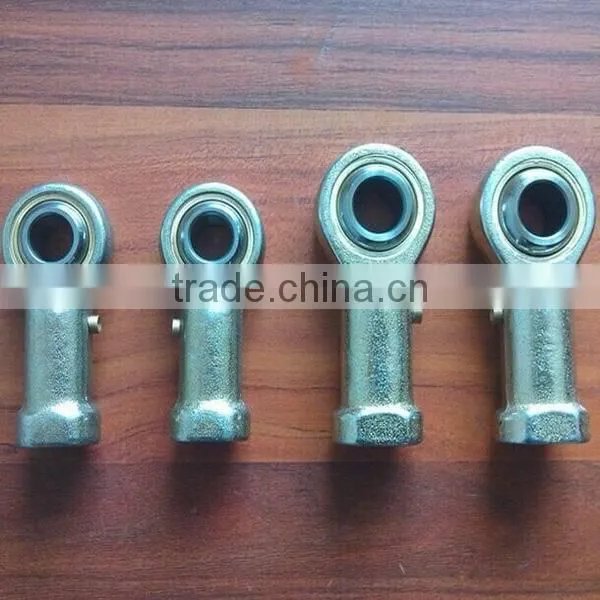

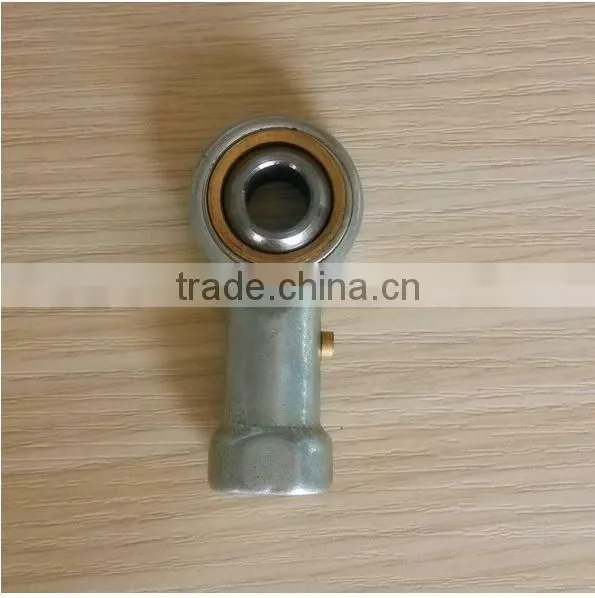

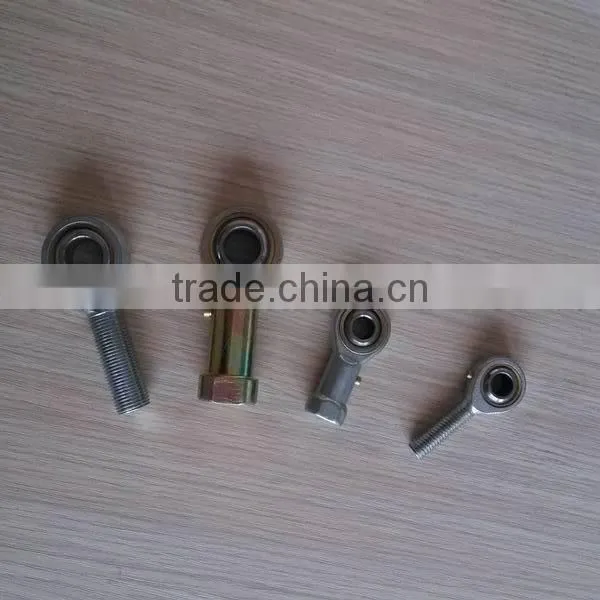

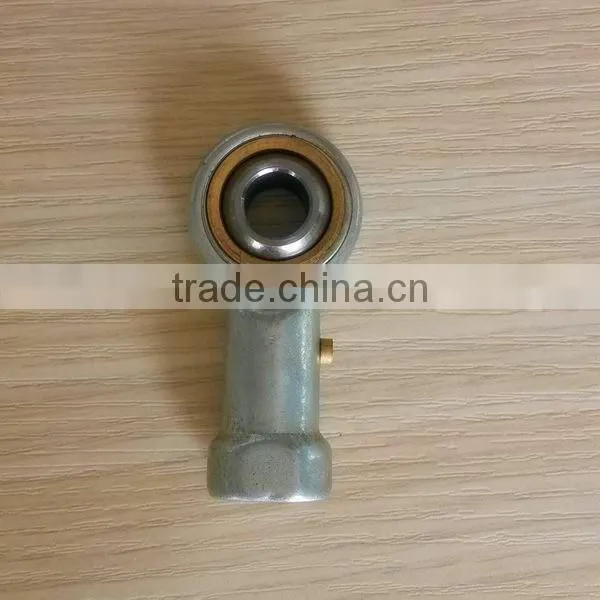

PHS12 right hand female thread aluminum joint bearing
Introduction
Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
Feature
Wear resistance of the joint bearing is very good, can rotate freely, and strong, able to withstand a variety of load from the outside, the joint bearing life is very long, and the flexibility to use. This kind of joint bearing in our life is very common, such as the piston rod of the hydraulic cylinder is connected with the fixed shaft place, you should use the joint bearing, from the design point of view, with the ordinary bearing the words can not meet such high concentricity, just meet the performance of joint bearing.
Aplication
Joint bearing is widely used in engineering hydraulic cylinder, forming machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industry. The joint bearing and classification of joint bearing is spherical plain bearing, the basic type is composed of a spherical sliding spherical contact surface, within the outer ring.
Datasheet
| Pillo..Ball PHS | Dimensions (mm) | |||||||||
| d | Threads | D | B | B1 | d1 | L | L1 | L2 | W | |
| PHS 5 | 5 | M5×0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 14 | 9 |
| PHS 6 | 6 | M6×1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 14 | 11 |
| PHS 8 | 8 | M8×1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 17 | 14 |
| PHS 10 | 10 | M10×1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 21 | 17 |
| PHS 12 | 12 | M12×1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 19 |
| PHS 14 | 14 | M14×2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 22 |
| PHS 16 | 16 | M16×2 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 22 |
| PHS 18 | 18 | M18×1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 27 |
| PHS 20 | 20 | M20×1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 30 |
| PHS 22 | 22 | M22×1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 43 | 32 |
Welcome to enquire for more details!
