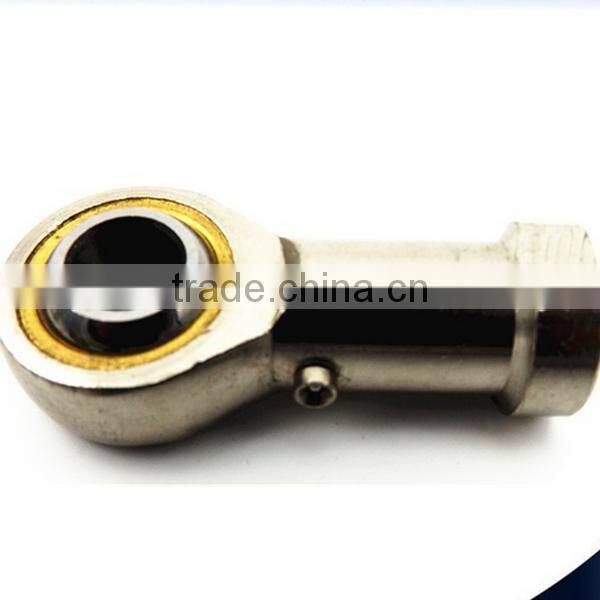

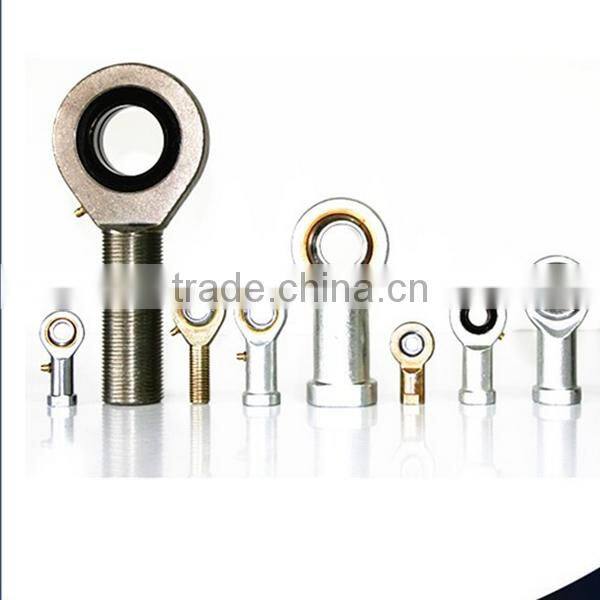

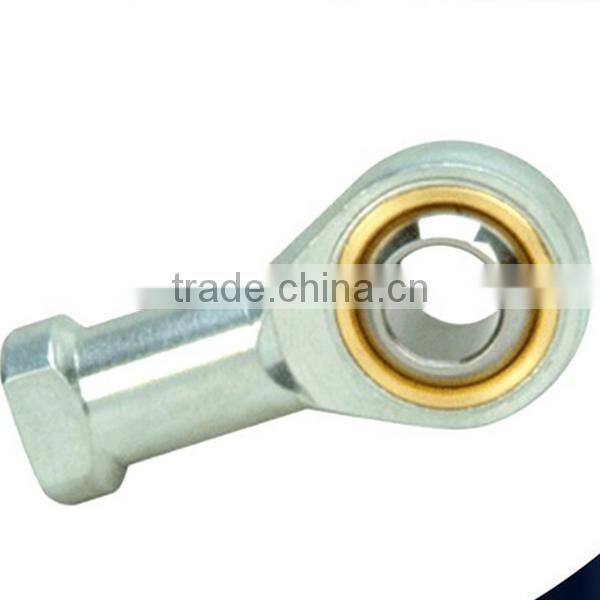

Help CenterPOS Series Rod End Bearing POS14 POS16 POS 18 POS20
Related Products
-
Cheap GEZ76ES Joint Bearing Radial Spherical Plain BearingsUS$ 19 - 22MOQ: 1 Piece -
Heavy Type Nylon Ball and Steel Body Mini Transfer Unit Ball SP12 KSM-12US$ 1 - 1.68MOQ: 10 Pieces
-
Good Quality CSM8 SPQ8 Swivel Ball Joint Bearing Rod End BearingsUS$ 0.66 - 1MOQ: 50 Pieces
-
Good Price Rod End Ball Joint Linkages CSM6 SPQ6US$ 0.66 - 1MOQ: 50 Pieces
-
High Precision Nylon Ball and Steel Body Mini Transfer Unit Ball SP15US$ 1 - 1.68MOQ: 10 Pieces
POS28 male combination bearings rod ends
Introduction
Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
Feature
1. Bearings with a stretching rod, stretching with right or left-hand male thread.
2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.
Application
It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.
Datasheet
| Item No. | Dimensions mm | Load ratings KN | Weight | ||||||||||||
| d | d3 | B | C1 | l1 | d2 | h | l2 | dk | R1s | d1 | α° | C | Co | ≈kg | |
| max | max | max | max | min | ≈ | ||||||||||
| POS5 | 5 | M5 | 8 | 6 | 20 | 18 | 33 | 42 | 11.11 | 0.3 | 7.7 | 13 | 3.25 | 5.7 | 0.013 |
| POS6 | 6 | M6 | 9 | 6.75 | 23 | 20 | 36 | 46 | 12.7 | 0.3 | 8.9 | 13 | 4.3 | 72 | 0.02 |
| POS8 | 8 | M8 | 12 | 9 | 25 | 24 | 42 | 54 | 15.875 | 0.3 | 10.3 | 14 | 7.2 | 11.6 | 0.03 |
| POS10 | 10 | M10 | 14 | 10.5 | 30 | 26 | 48 | 61 | 19.05 | 0.3 | 12.9 | 13 | 10 | 14.5 | 0.055 |
| POS12 | 12 | M12 | 16 | 12 | 34 | 30 | 54 | 69 | 22.225 | 0.3 | 15.4 | 13 | 13.4 | 17 | 0.085 |
| POS14 | 14 | M14 | 19 | 13.5 | 37 | 34 | 60 | 77 | 25.4 | 0.3 | 16.8 | 16 | 17 | 24 | 0.14 |
| POS16 | 16 | M16 | 21 | 15 | 41 | 40 | 66 | 86 | 28.575 | 0.3 | 19.3 | 15 | 21.6 | 28.5 | 0.21 |
| POS18 | 18 | M18X1.5 | 23 | 16.5 | 45 | 44 | 72 | 94 | 31.75 | 0.3 | 21.8 | 15 | 26 | 42.5 | 0.28 |
| POS20 | 20 | M20X1.5 | 25 | 18 | 48 | 48 | 78 | 102 | 34.925 | 0.3 | 24.3 | 14 | 31.5 | 52.5 | 0.38 |
| POS22 | 22 | M22X1.5 | 28 | 20 | 52 | 54 | 84 | 111 | 38.1 | 0.3 | 25.8 | 15 | 38 | 57 | 0.48 |
| POS25 | 25 | M24X2 | 31 | 22 | 58 | 60 | 94 | 124 | 42.85 | 0.3 | 29.5 | 15 | 47.5 | 68 | 0.64 |
| POS28 | 28 | M27X2 | 35 | 24 | 63 | 66 | 103 | 136 | 47.6 | 0.3 | 33.7 | 15 | 58 | 75.5 | 0.96 |
| POS30 | 30 | M30X2 | 37 | 25 | 67 | 70 | 110 | 145 | 50.8 | 0.3 | 34.8 | 17 | 64 | 88 | 1.1 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
Our service
Quick reply
We will reply your inquiry within 12 hours , phone, email and skype/ whatsapp/ wechat prompt reply.
Free samples supply
If you need samples, we can provide free samples of small quantity reassure you do business. If you need large quantity samples, you have to pay the samples charges.
After sale
For after-sales problems , we solved promptly and carefully, to make sure you satisfied.
Customized service
OEM&ODM hydraulic hose fitting available. We can make the production as customers’ drawing or samples. We provide OEM custom packaging service to customers in order to produce the strongest support
FAQ
1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by shipping.
4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more
.
