DC7221B Wet Clutch Sprag Clutch Starter Clutch One Way Bearing for Motorcycle

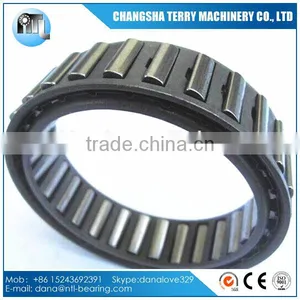

DC7221B Wet Clutch Sprag Clutch Starter Clutch One Way Bearing for Motorcycle thumbnail-1
DC7221B Wet Clutch Sprag Clutch Starter Clutch One Way Bearing for Motorcycle photo-1
US$ 5 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
5, 150
Outside Diameter:
10, 300
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 5, 150
Outside Diameter 10, 300
Model Number DC7221B
Precision Rating high precsion
Seals Type Open
Number of Row Other

one way clutch bearing


One way clutch also named back stop,overrunning clutch,can overrun freely in one direction of rotation.Can be widely applicated in general industrial transmission machines,printer,textile machinery...etc.



CSK type-Bearing/freewheel.Dimensions identical to ball bearing series 62

As type-Roller type freewheel.Mounting dimensions similar to bearing series 62

ASNU type-Roller type freewheel.Outer race connection via press fit and/or face key

AA type-Roller type freewheel.Outer race connection via through screws

AE type-Oller type freewheel.Outer race connection via press fit and/or face key

DC type-Double cage sprag type freewheel.Delivered without inner and outer race

KI type-Mini freewheel delivered without outer race

GFKtype-Bearing/freewheel.Dimensions identical to ball bearing series 59



Model   Detail size(mm) Rated torque(N.m)
a 0.008 b 0.013 e
-0.005 -0.013
DC2222G 22.225 38.885 10 50
DC2776 27.762 44.422 13.5 95
DC3034 30.34 47 13.5 99
DC3175 31.75 48.41 13.5 127
DC3809A 38.092 54.752 16 220
DC4127 41.275 57.935 13.5 179
DC4445A 44.45 61.11 16 290
DC4972 49.721 66.381 13.5 245
DC5476A 54.765 71.425 16 420
DC5476B 54.765 71.425 21 615
DC5476C 54.765 71.425 25.4 792
DC5776A 57.76 74.42 16 483
DC6334B 63.34 80 21 645
DC7221 72.217 88.877 13.5 540
DC7221B 72.217 88.877 21 1023
DC7969C 79.698 96.358 25.4 1630
DC8334C 83.34 100 25.4 1645
DC8729A 87.29 103.96 16 1000
DC10323A 103.231 119.891 16 1290
DC12334C 123.34 140 25.4 3840
DC12388C 123.881 142.88 25.4 3900





earing no. d D B
ASNU8 8 35 13
ASNU12 12 35 13
ASNU15 15 42 18
ASNU17 17 47 19
ASNU20 20 52 21
ASNU25 25 62 24
ASNU30 30 72 27
ASNU35 35 80 31
ASNU40 40 90 33
ASNU45 45 100 36
ASNU50 50 110 40
ASNU60 60 130 46
ASNU70 70 150 51
ASNU80 80 170 58
ASNU90 90 190 64
ASNU100 100 215 73
ASNU120 120 260 86
ASNU150 150 320 108
ASNU200 200 420

138





Designation Bearing Series  Dimensions Mass
d (mm) D (mm) L (mm) (kg)
CSK8       8 22 9 0.015
CSK12  CSK12 P   6201 12 32 10 0.04
CSK15  CSK15 P CSK15 PP 6202 15 35 11 0.06
CSK17 CSK17 P CSK17 PP 6203 17 40 12 0.07
CSK20 CSK20 P CSK20 PP 6204 20 47 14 0.11
CSK25  CSK25 P CSK25 PP 6205 25 52 15 0.14
CSK30  CSK30 P CSK30 PP 6206 30 62 16 0.21
CSK35  CSK35 P CSK35 PP 6207 35 72 17 0.3
CSK40 CSK40 P CSK40 PP -  40 80 22 0.5



    AS(NSS/TSS) Toeque(N.m) dimensions[mm] mass[Kg]
D L d bxt
[n6] [H7]
ROLA0619      AS06 2.1 19 6 6 no 0.01
ROLA0822      AS08 5 22 9 8 no 0.02
ROLA1030      AS10 6.8 30 9 10 3x1.4 0.03
ROLA1232      AS12 28 32 10 12 4x1.8 0.04
ROLA1535      AS15 42 35 11 15 5x1.2 0.05
ROLA1740      AS17 60 40 12 17 5x1.2 0.1
ROLA2047      AS20 89 47 14 20 6x1.6 0.12
ROLA2552      AS25 150 52 15 25 8x2.0 0.14
ROLA3062      AS30 180 62 16 30 8x2.0 0.22
ROLA3572      AS35 220 72 17 35 10x2.4 0.31
ROLA4080      AS40 270 80 22 40 12x2.2 0.39
ROLA4585      AS45 275 85 19 45 14x3.8 0.44
ROLA5090      AS50 290 90 20 50 14x3.8 0.49
ROLA55100    AS55 308 100 21 55 16x4.3 0.66
ROLA60110    AS60 508 110 22 60 18x4.4 0.81
ROLA80140    AS80 1063 140 26 80 22x5.4 1.41



Contact us.



Changsha Terry Machinery Co.,Ltd

sales manager:dana xu

Mobile:86 152 4369 2391

Fax:86-731-85515405

Email:dana(at)

Skype:danalove329



DC7221B Wet Clutch Sprag clutch Starter clutch One Way Bearing for motorcycle
