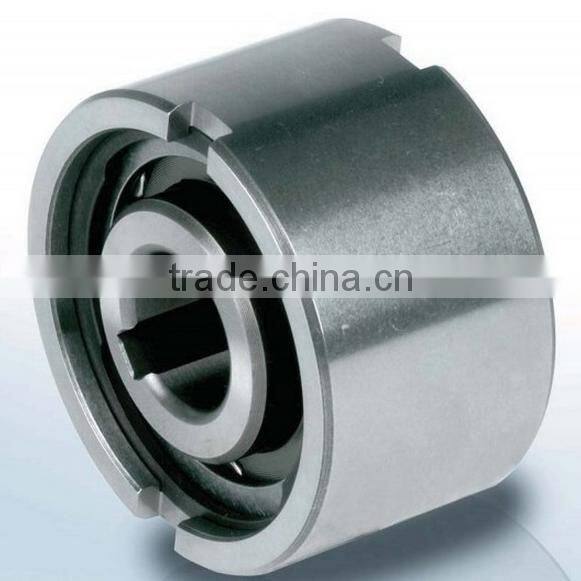

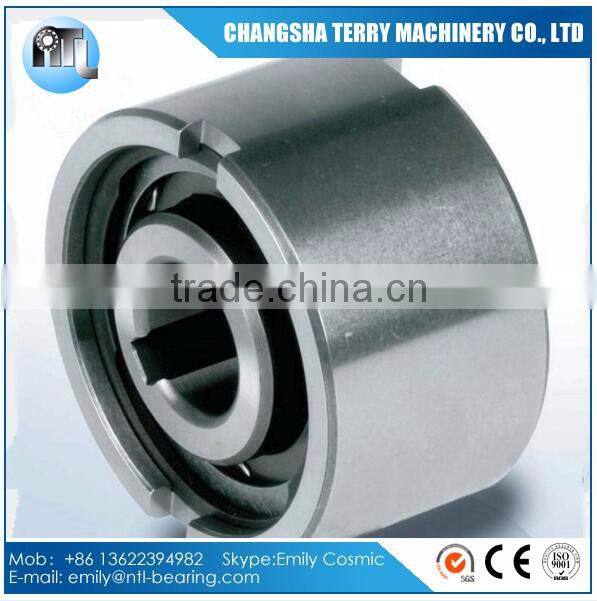

NF90 90*215*140mm Roller Type Freewheel One Way Overrunning Clutch
NF90: bore sizes: 90mm
outer diameter: 215mm
width: 140mm
NF production introduction:
Type NF is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Standard lubrication is oil.
Nominal outside dia-meter is a standard ball bearing dimension.
A typical arrangement is to install this type alongside a bearing with the same housing tolerances, .
The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a H7 housing. Additional side notches provide for positive torque transmission. If the housing tolerance is to K6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.
Datasheet
