CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP

CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP thumbnail-1
CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP thumbnail-2
CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP thumbnail-3
CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP thumbnail-4
CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP photo-1

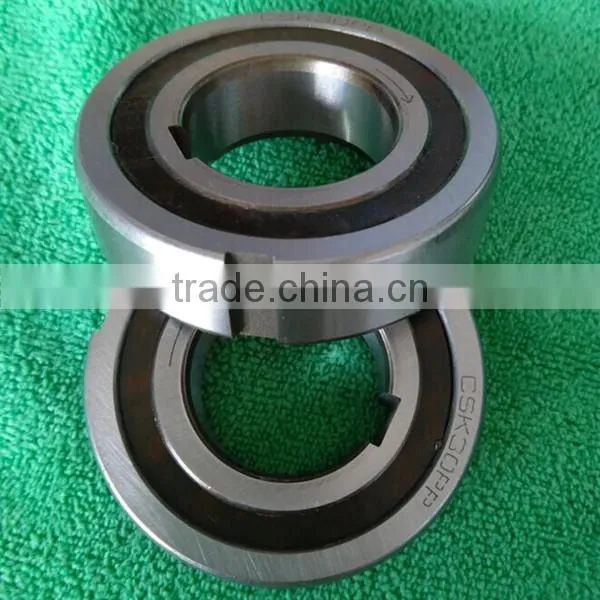

CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP photo-2
CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP photo-3

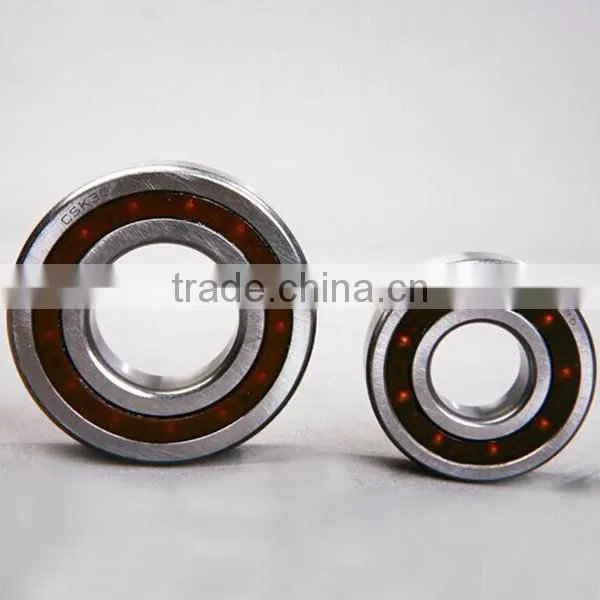

CSK30PP Bearing 30*62*16 mm One Way Clutch Bearing CSK30PP photo-4
US$ 3.6 - 5.6 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
30,
Outside Diameter:
62,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 30,
Outside Diameter 62,
Model Number csk30pp
Precision Rating P0 P6 P5 P4 P2
Seals Type ZZ 2RS OPEN
Number of Row Single Row
Place of Origin Jiangsu, China

CSK30PP bearing 30*62*16 mm One way clutch bearing CSK30PP



CSK series one way bearings is a sprag type freewheel , integrated into 6200 series ball bearing(except sizes 8 and 40), Also named OW BB KK etc. It provides you an one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space. It is bearing supported, shipped grease lubricated and protected against dust larger than 0.3mm diameter. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit asspecified. Operating temperature range:-20°C to +100°C. Peaks up to +120°C are acceptable for short periods.



The CSK series freewheel include CSK CSK…P CSK..PP type. CSK…P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race, The type of CSK…PP clutches have a keyway on both inner race and outer race.



The CSK series one way cluth bearings have be used widely in washing machine, grass cutter, printing machine, textile machinery and food machinery etc.



CSK30PP bearing 30*62*16 mm One way clutch bearing CSK30PP



Size Bearing series   Bearing loads Weight Drag torque
dynamic static

CSK..P

(BB..-1K)

(KK..P)

(OW..P)

 d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 – 325 3000 80 22     15.54 12.25 0.5 7

CSK..PP

(BB ..-2K)

(KK..PP)

(OW..PP)

 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7

CSK..P-2RS

(BB..-2GD-1K)

(KK..PP-2RS)

(OW..P-2RS)

 12 – 9.3 10000 32 14     6.1 2.77 0.05 3
15 – 17 8400 35 16     7.4 3.42 0.07 4
17 – 30 7350 40 17     7.9 3.8 0.09 5.6
20 – 50 6000 47 19     9.4 4.46 0.145 6
25 – 85 5200 52 20     10.7 5.46 0.175 6
30 – 138 4200 62 21     11.7 6.45 0.27 7.5
35 – 175 3600 72 22     12.6 7.28 0.4 8.2
40 – 325 3000 80 27     15.54 12.25 0.6 10

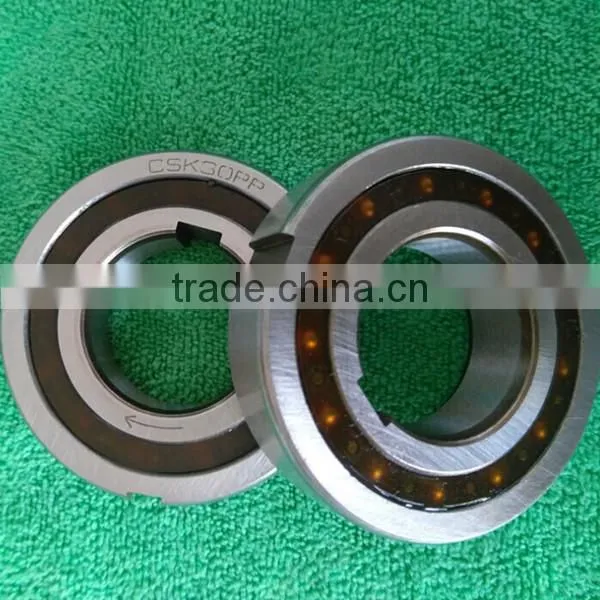

CSK30PP bearing 30*62*16 mm One way clutch bearing CSK30PPCSK30PP bearing 30*62*16 mm One way clutch bearing CSK30PPCSK30PP bearing 30*62*16 mm One way clutch bearing CSK30PPCSK30PP bearing 30*62*16 mm One way clutch bearing CSK30PP
