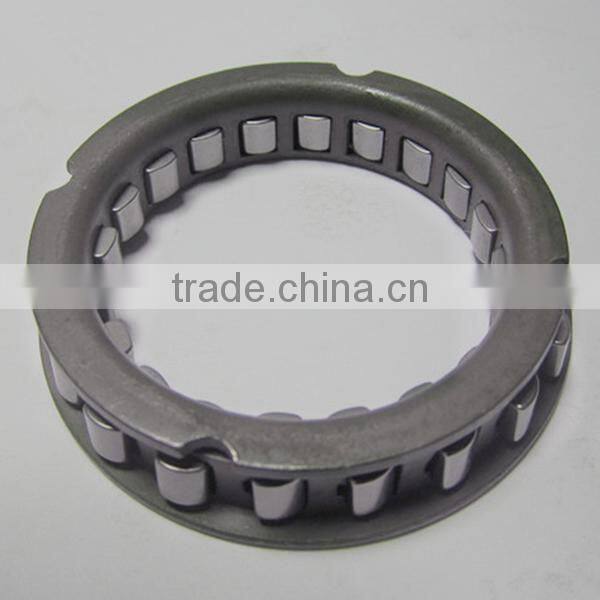

One Way Roller Clutch Bearings DC4127(3C)
1.Type DC is a sprag type freewheel cage without inner or outer races.
2.It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version -N accepts all types of lubricants currently used in power transmissions including gear oils with EP additives.

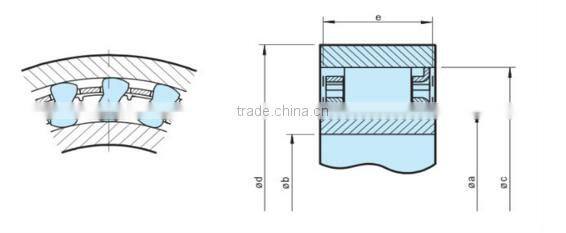

3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.
4.Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races : 0,007 mm for 25 mm width.
