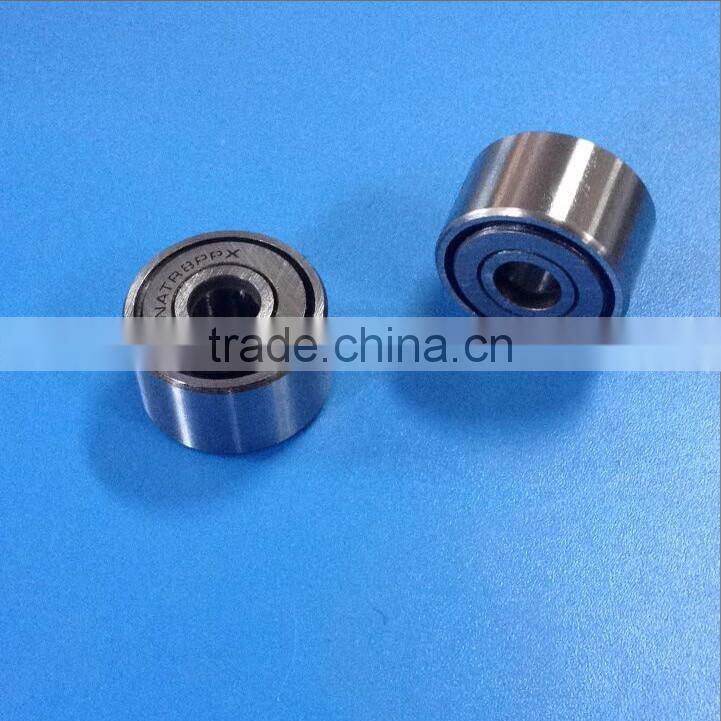

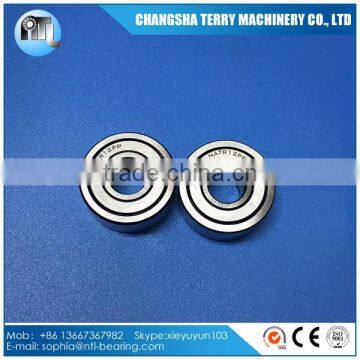

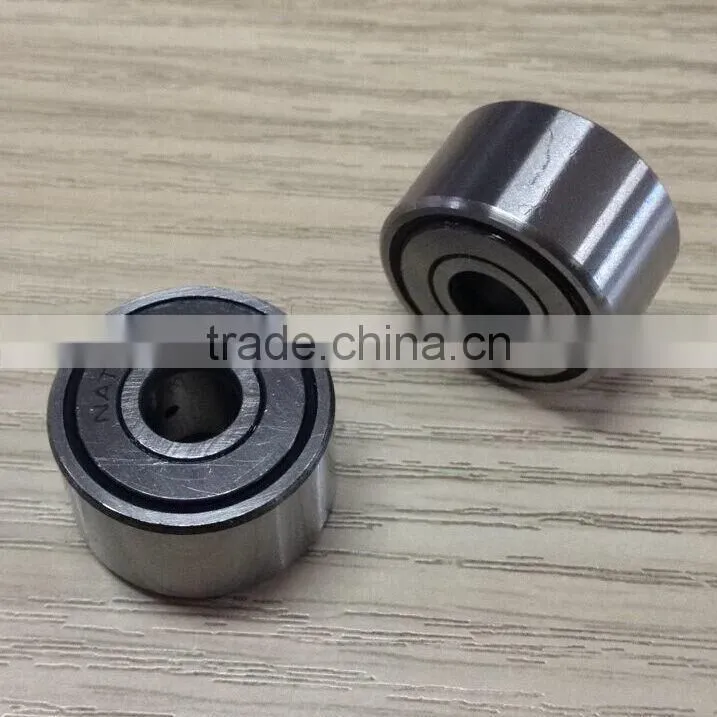

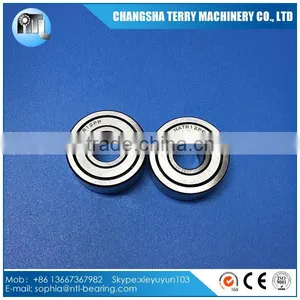

NATR12PP Yoke Type Track Rollers
Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.
Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment.
Needle roller bearing /cam follower is composed of a stud used as the tray of a group of rollers and a thick wall outer ring .The shoulder of the stud and the surface retaining ring on the stud form the guiding faces on the two sides of the outer ring. When the curve rollers are running on the plain tray or cam wheel, the inner stress on the rollers will increase due to the deformation of the outer ring.
Yoke track roller bearings
Model RSTO support roller bearing
Model STO and STO...ZZ support roller bearing
Model RNA22...2RS and NA22...2RS support roller bearing
Model NATR and NATR...PP support roller bearing
Model NUTR support roller bearing
Model NAST support roller bearing
|
Outside Dia |
Bearing Des | Boundary Dim | Basic Load Ratinf | |||||||||
| As Yoke Type track rollers | ||||||||||||
| with inner ring | without inner ring | D | d | B | C | E | rs | C | Co | Cw | Cow | |
| m m | ||||||||||||
| m m | min | N | ||||||||||
| 30 | NATR 10 | NATR 10 PP | 10 | 30 | 15 | 14 | 0.6 | 23 | 8100 | 9700 | 6800 | 8400 |
| NATV 10 | NATV 10 PP | 10 | 30 | 15 | 14 | 0.6 | 23 | 12200 | 19000 | 9500 | 14600 | |
| 32 | NATR 12 | NATR 12 PP | 12 | 32 | 15 | 14 | 0.6 | 25 | 8700 | 11000 | 6900 | 8800 |
| NATV 12 | NATV 12 PP | 12 | 32 | 15 | 14 | 0.6 | 25 | 13200 | 21700 | 9700 | 15400 | |
If you need,just feel free to contact with us.
