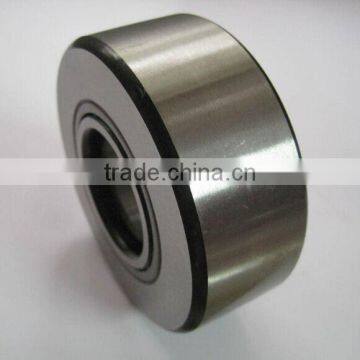

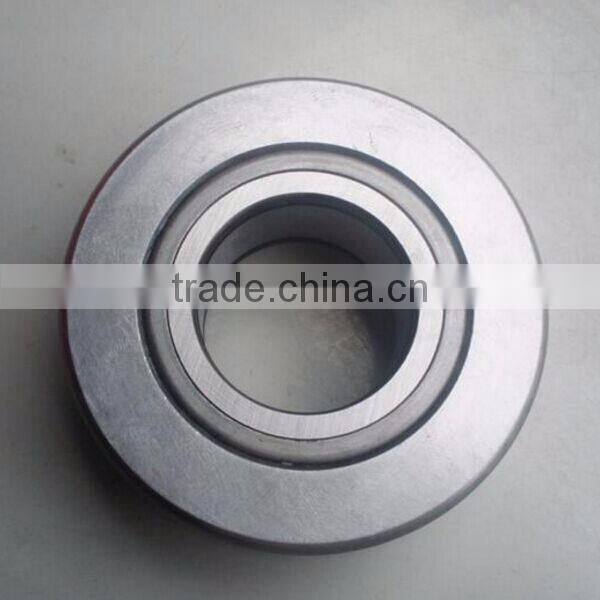

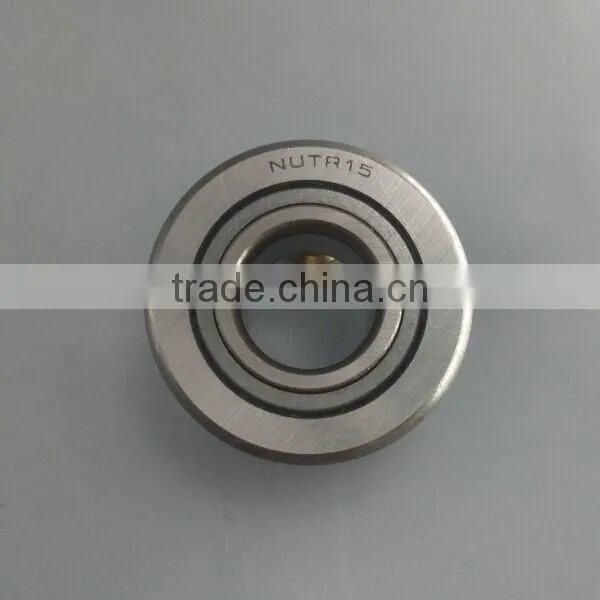

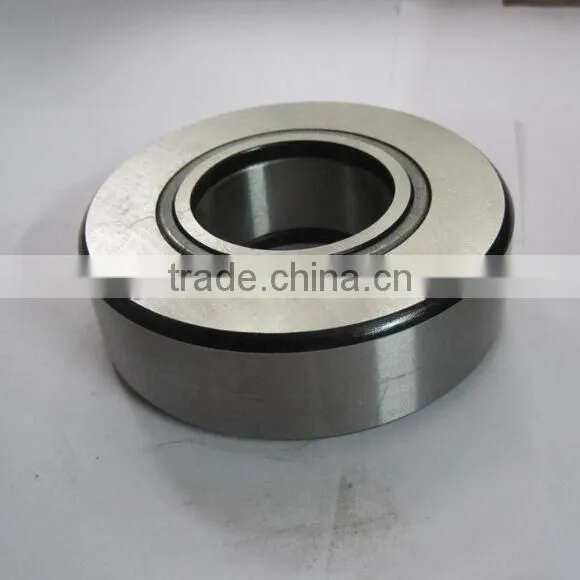

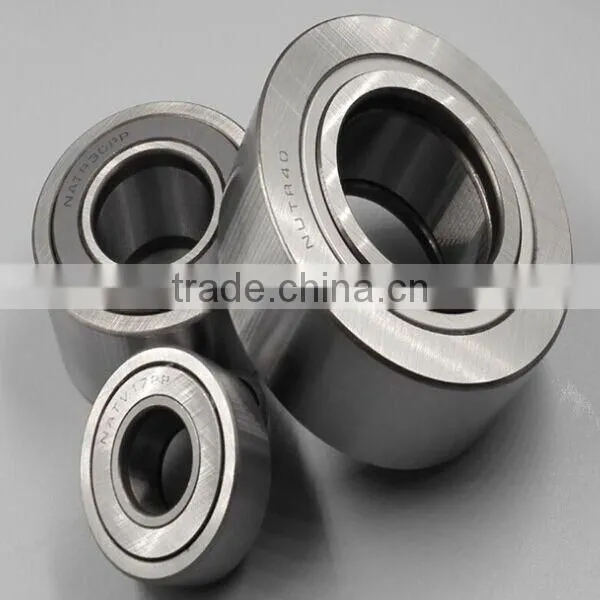

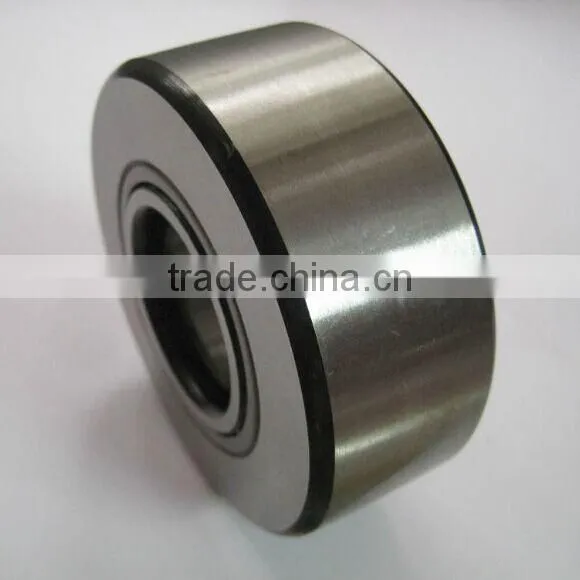

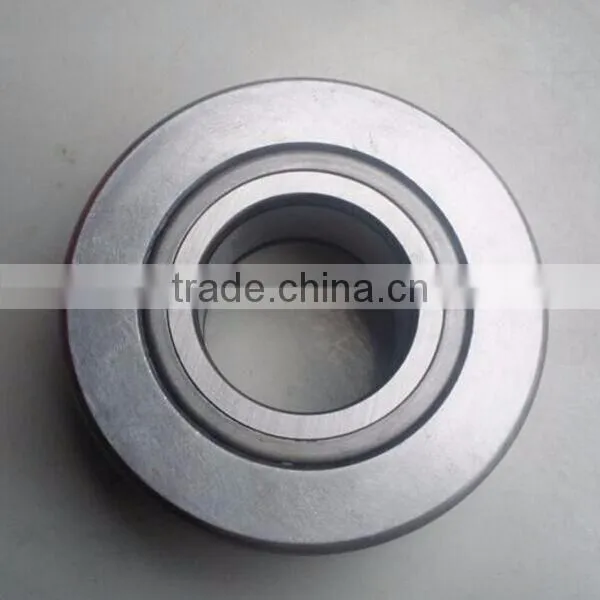

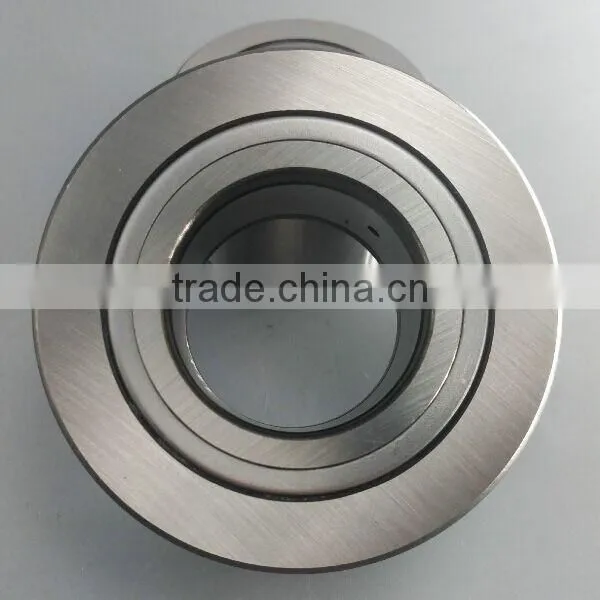

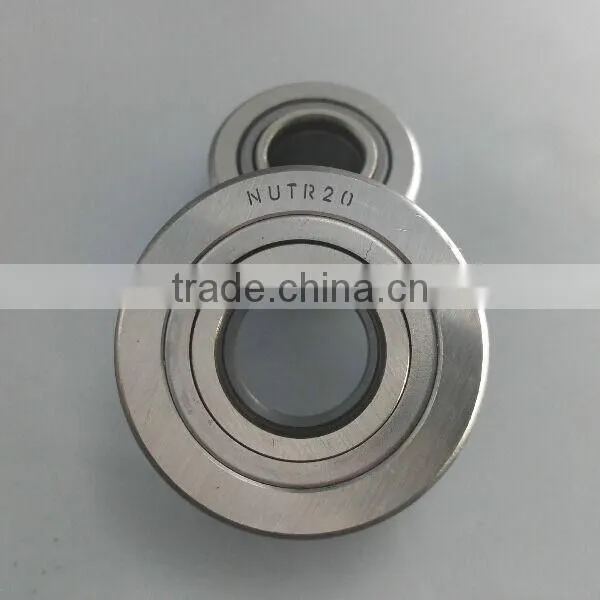

Yoke type needle roller bearing NUTR45 :
Description:
1. The drawn cup needle roller bearings are needle roller bearings with the deep drawn, thin-walled outer ring with either an open end or closed end.
2. The bearings are characterized by a very low sectional height and high load carrying capacity
3. The bearings are typically used in applications where the housing bore can not be used as a raceway for a needle roller and cage assembly but where a very compact and ecnomical bearing arrangement is required.
4. Typically, drawn cup needle roller bearings have a single row of rollers. However, wide sizes incorporate two needle roller and cage assemblies immediately asjacent to each other with a lubrication hole in the outer ring.
specifications:
1.size:45*85*32mm

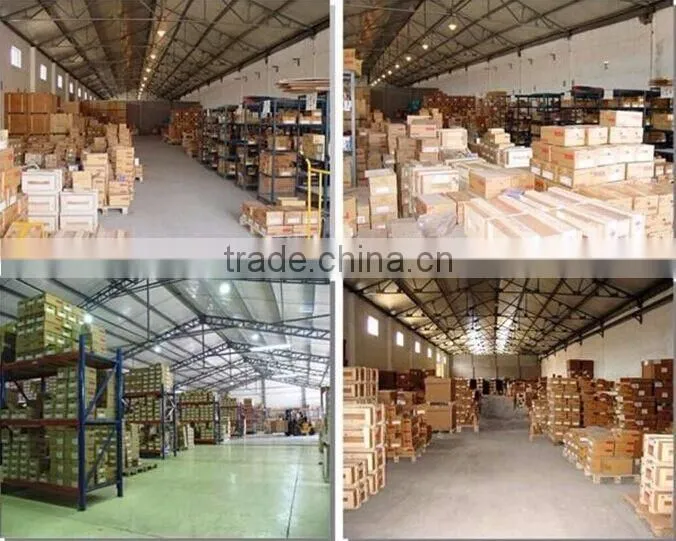

2.large stock
| SHAFT | BEARING CODE | BOUNDARY DIMENSIONS | ||||||
| d | D | B | C | d1 | r | r1 | ||
| 35 | NUTR15 | 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 |
| 40 | NUTR17 | 17 | 40 | 21 | 20 | 22 | 1 | 0.3 |
| 42 | NUTR1542 | 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 |
| 47 | NUTR1747 | 17 | 47 | 21 | 20 | 22 | 1 | 0.3 |
| NUTR20 | 20 | 47 | 25 | 24 | 27 | 1 | 0.3 | |
| 52 | NUTR2052 | 20 | 52 | 25 | 24 | 27 | 1 | 0.3 |
| NUTR25 | 25 | 52 | 25 | 24 | 31 | 1 | 0.3 | |
| 62 | NUTR2562 | 25 | 62 | 25 | 24 | 31 | 1 | 0.3 |
| NUTR30 | 30 | 62 | 29 | 28 | 38 | 1 | 0.3 | |
| 72 | NUTR3072 | 30 | 72 | 29 | 28 | 38 | 1 | 0.3 |
| NUTR35 | 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | |
| 80 | NUTR3580 | 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 |
| NUTR40 | 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | |
| 85 | NUTR45 | 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 |
| 90 | NUTR4090 | 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 |
| NUTR50 | 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | |
| 100 | NUTR45100 | 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 |
| 110 | NUTR50100 | 50 | 100 | 32 | 30 | 60 | 1.1 | 0.6 |
Packing: Industy Packing
According to your requests
Shipping: By Air / By Sea / By Express
Contact information
Changsha Terry Machinery Co.,Ltd
Attn: Connie
E-mail: Connie @ntl-bearing.com
Skype: 15073676619
