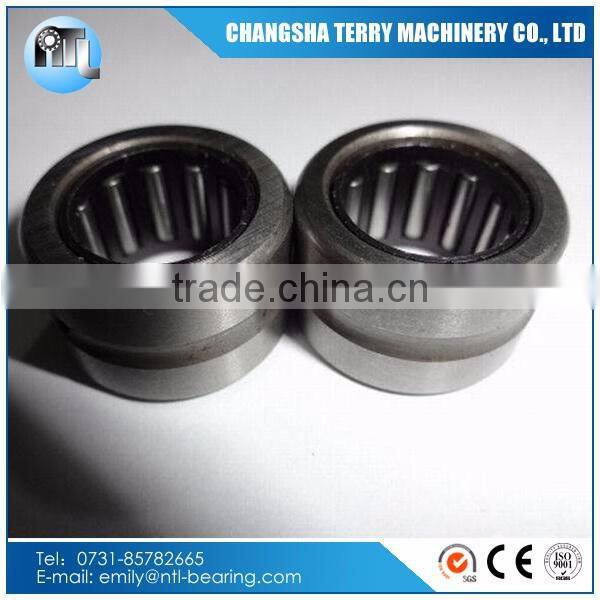

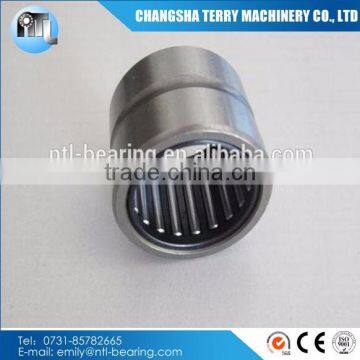

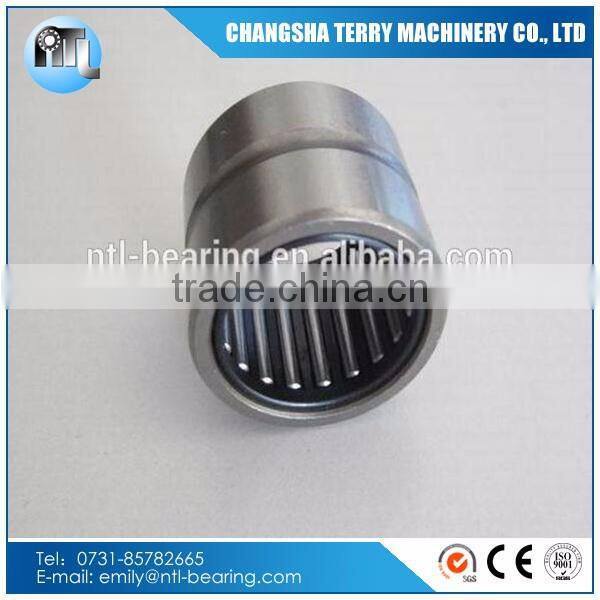

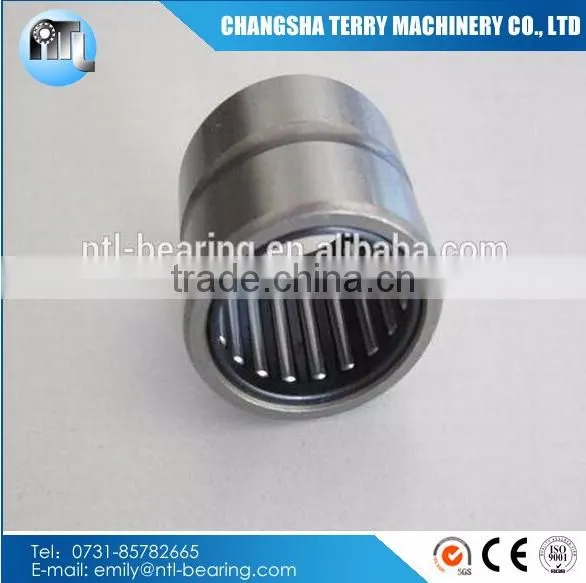

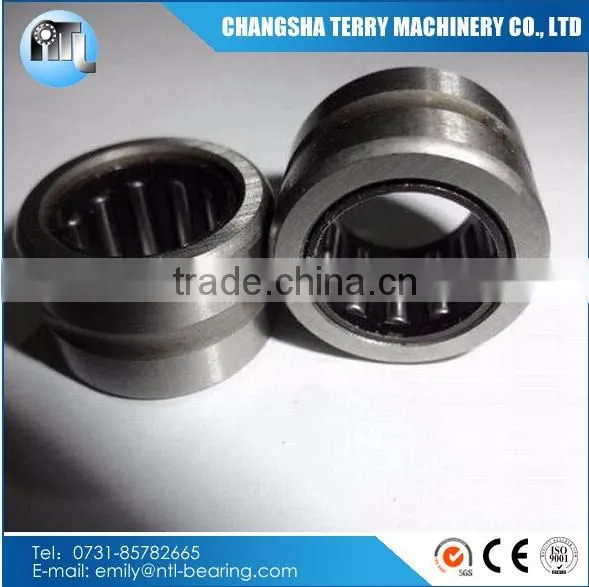

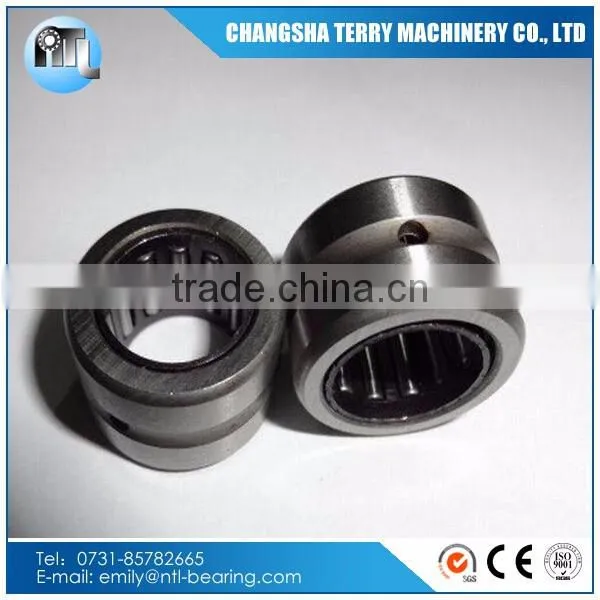

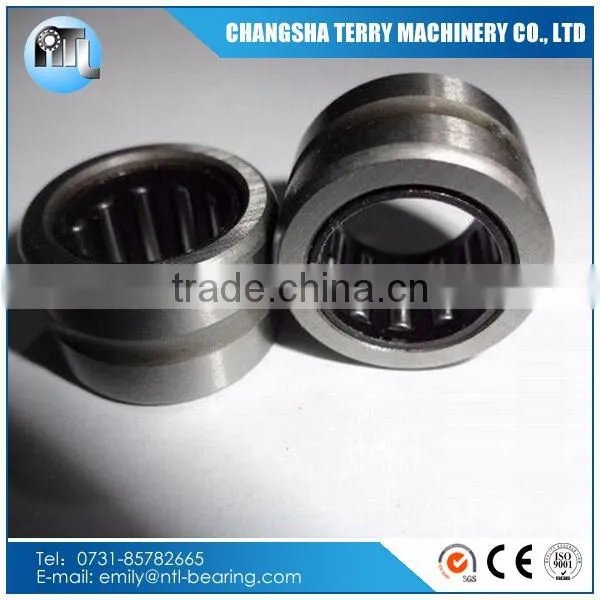

NK14/16 14X22X16 mm High quality Needle roller bearing
Introduction
Needle roller bearings have a high load carrying capacity in addition to their low cross-section and stiffness. They are especially suitable for bearing arrangements where radial space is limited. Because needle roller bearings only carry pure radial load and can not limit the axial displacement of shaft relative to the housing. It is important to ensure that inner ring axis and outer ring axis must be aligned during mounting the bearings.
Feature
NK needle roller bearings are featured by the extremely big axial load carrying capacity and meanwhile they can also carry certain radial load
Application
Needle roller bearings without inner ring offer technically the best bearing arrangement solution if the shaft raceway is hardened and ground. This allows for the use of larger shafts and design alternatives. Widely used in steel industry, oil industry,cement industry,mining&construction, papermaking machinery,rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery.
Contact information
Changsha Terry Machinery Co.,Ltd
Attn: Emily
E-mail: emily at
Skype: Emily Cosmic
Mobil: +86 13622394982
Datasheet
| Item No. | Approx Weight |
Boudary Dimensions (mm) | Basic Load Rating | Limiting Speed |
|||
| NK | g | mm | N | rpm | |||
| NK 5/10 TN | 2.9 | 5 | 10 | 10 | 2100 | 1400 | 39000 |
| NK 5/12 TN | 3.2 | 5 | 10 | 12 | 2500 | 1600 | 39000 |
| NK 6/10 TN | 3.5 | 6 | 12 | 10 | 2600 | 2280 | 37000 |
| NK 6/12 TN | 4.1 | 6 | 12 | 12 | 3350 | 3150 | 37000 |
| NK7/10TN | 4.5 | 7 | 14 | 10 | 2850 | 2650 | 34000 |
| NK7/12 | 6.8 | 7 | 14 | 12 | 3650 | 3600 | 34000 |
| NK 8/12 | 8.3 | 8 | 15 | 12 | 3050 | 3650 | 32000 |
| NK9/12 | 9.2 | 9 | 16 | 12 | 4500 | 5000 | 31000 |
| NK 10/12 | 10 | 10 | 17 | 12 | 4750 | 5350 | 23500 |
| NK 12/12 | 11.8 | 12 | 19 | 12 | 6050 | 6400 | 21640 |
| NK 12/16 | 16.8 | 12 | 19 | 16 | 8200 | 9800 | 21640 |
| NK 14/16 | 20.8 | 14 | 22 | 16 | 8260 | 9600 | 18322 |
| NK 15/12 | 18.5 | 15 | 23 | 12 | 8600 | 10070 | 21004 |
Our serice
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customer, you can choose loading port, then we can accept inland transport of short distance
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
Welcome to enquire for more details!
