Sliding Rail System SBR20uu Linear Motion Guide block Linear Bearing
Product Description
Linear guides and rails provide a smooth, precision, guiding surface on which the rolling element of a linear bearing rides. They are an integral part of linear bearings, typically ordered separately from the rolling element component. They must exhibit this in terms of speed, temperature stability, accuracy and noise levels. Our linear guide available in several sizes to accommodate loads of all types, from light to heavy, and offer suitable for use in numerous applications, such as machine design requiring incorporation of linear guide products into the machine structure. We produce a complete range of linear guide designed to satisfy the most demanding requirements.
Cylindrical linear rail and slide unit introduction:
As a professional linear motion products manufacturer with many years expriences,we could offer many kinds of linear motion guide rails and slide blocks.They are and good quality but more competitive price in this field.
SBR/TBR Cylindrical linear guide rail is composed of a rail support, a shaft (rail), and number of blocks. They are provided as a unit or as respective components as well. All components are standardized to be fully interchangable.

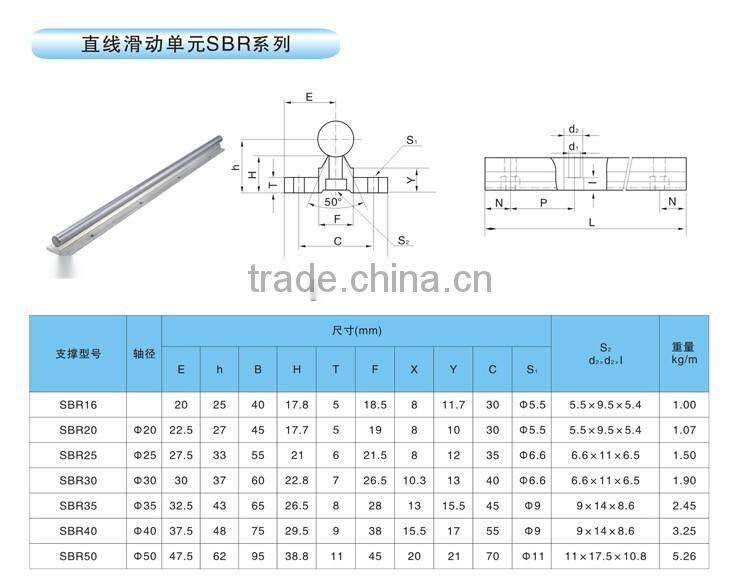

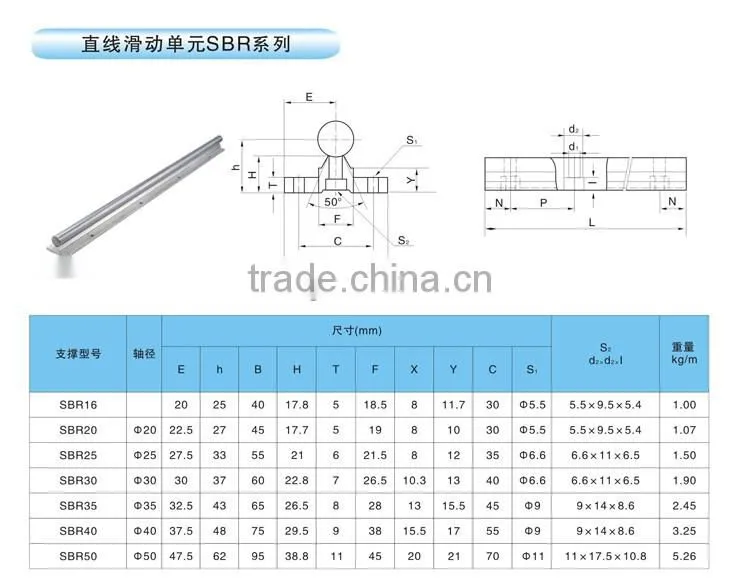

Support Rail (SBS/TBS)
Support Rail provides maximum rigidity and stiffness to the shaft throughout the whole stroke,andensure the performance of the unit.
Case (SBR/TBR /SMD)
Effective for high load or long stroke application with maximum rigidity and excelent motion in combination with Open type Linear Bushing. Moreover , preload can be applied on SBR/TBR/SMD series for high precision performance.

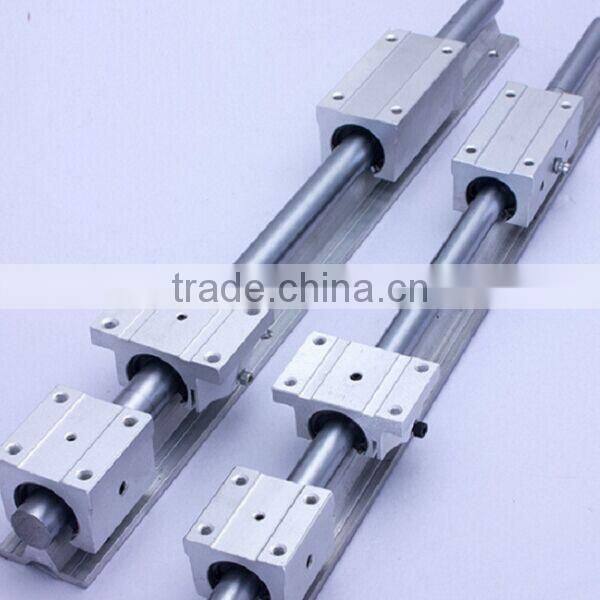

Support Rail Unit (SBR-S/TBR-S)
SBR-S and TBR-S type are optimum guide units for high precision and deflection free sliding system with smooth motion and maximum rigidity,and less cost and time.
Aluminum linear support rail application:
Linear motion guide rail and block TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.
Advantages of Linear Guideway
(1) the positioning precision is high
(2) less abrasion can long time maintain precision
(3) high speed movement and greatly reduced the power needed for drive
(4) can also withstand the loadfrom up and down or other directions
(5) easy assembling and a replacement
(6) the lubrication simple structure
if you need this product, please contact me freely.
Attn:connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
