Home > Products > Ceramic Bearing&Plastic Bearing > 684-2RS Miniature ball bearing

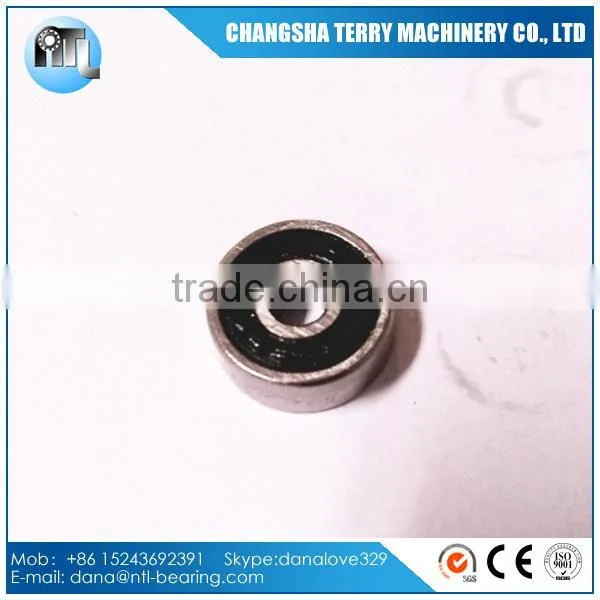

684-2RS Miniature ball bearing
- 100000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card Credit Card
Product Details
Brand Name: | NTL | Bore Size: | 1, 100 | Outside Diameter: | 3, 200 |
Model Number: | 684-2RS | Precision Rating: | high precision | Seals Type: | ZZ 2RS OPEN |
Number of Row: | Single Row |
Product Description
ball bearing
Flange | Open | Shield | Boundary Diameter | ||
d | D | Df | |||
F | 681 | 1 | 3 | 3.8 | |
F | 691 | 1 | 4 | 5 | |
F | 682 | ZZ | 2 | 5 | 6.1 |
F | 602 | ZZ | 2 | 7 | 8.5 |
F | 603 | ZZ | 3 | 9 | 10.5 |
F | 623 | ZZ | 3 | 10 | 11.5 |
F | 684 | ZZ | 4 | 9 | 10.3 |
F | 685 | ZZ | 5 | 11 | 12.5 |
F | 605 | ZZ | 5 | 14 | 16 |
F | 606 | ZZ | 6 | 17 | 19 |
F | 626 | ZZ | 6 | 19 | 22 |
F | 607 | ZZ | 7 | 19 | 22 |
F | 688 | ZZ | 8 | 16 | 18 |
F | 608 | ZZ | 8 | 22 | 25 |
ID | OD | Width | chamfer | LOADING(KN) | BALL | WEIGHT | |||
Dynamic | Static | No. | Size | KG | |||||
Cr | Cor | mm | |||||||
6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 7 | 4.763 | 0.019 |
6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 8 | 4.763 | 0.021 |
6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 9 | 4.763 | 0.035 |
6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 10 | 4.763 | 0.04 |
6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 9 | 6.35 | 0.068 |
6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 10 | 6.35 | 0.079 |
6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 11 | 7.144 | 0.113 |
6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 11 | 7.938 | 0.149 |
6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 12 | 7.938 | 0.185 |
6009 | 45 | 75 | 16 | 1 | 21 | 15.1 | 12 | 8.731 | 0.231 |
6010 | 50 | 80 | 16 | 1.1 | 21.8 | 16.6 | 13 | 8.731 | 0.256 |
6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 8 | 4.763 | 0.032 |
6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 7 | 5.953 | 0.037 |
6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 8 | 5.953 | 0.045 |
6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 8 | 6.747 | 0.066 |
6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 8 | 7.938 | 0.106 |
6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 9 | 7.938 | 0.128 |
6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 9 | 9.525 | 0.199 |
6207 | 35 | 72 | 17 | 1.1 | 25.7 | 15.3 | 9 | 11.112 | 0.288 |
6208 | 40 | 80 | 18 | 1.1 | 29.1 | 17.8 | 9 | 12 | 0.366 |
6209 | 45 | 85 | 19 | 1.1 | 32.5 | 20.4 | 10 | 12 | 0.398 |
6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 10 | 12.7 | 0.454 |
6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 6 | 7.144 | 0.053 |
6301 | 12 | 37 | 12 | 1 | 9.7 | 4.2 | 6 | 7.938 | 0.06 |
6302 | 15 | 42 | 13 | 1 | 11.4 | 5.45 | 7 | 7.938 | 0.082 |
6303 | 17 | 47 | 14 | 1 | 13.5 | 6.55 | 7 | 8.731 | 0.115 |
6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 7 | 9.525 | 0.144 |
6305 | 25 | 62 | 17 | 1.1 | 21.2 | 10.9 | 7 | 11.5 | 0.232 |
6306 | 30 | 72 | 19 | 1.1 | 26.7 | 15 | 8 | 12 | 0.36 |
6307 | 35 | 80 | 21 | 1.5 | 33.5 | 19.1 | 8 | 13.494 | 0.457 |
6308 | 40 | 90 | 23 | 1.5 | 40.5 | 24 | 8 | 15.081 | 0.63 |
6309 | 45 | 100 | 25 | 1.5 | 53 | 32 | 8 | 17.462 | 0.814 |
6310 | 50 | 110 | 27 | 2 | 62 | 38.5 | 8 | 19.05 | 1.07 |
Contact us.
Changsha Terry Machinery Co.,Ltd
sales manager:dana xu
Mobile:86-152 4369 2391
Fax:86 731 85515405
Email:dana(at)
Skype:danalove329
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy.
We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields.
Our Advantages
Products
Big volume in Stock, No MOQ required
We comply with all the international standards, such as ISO9001 and TS16949 standards.
Personnel
Our sales persons are well trained to accommodate your requests and speak English for your convenience.
Our technicians and engineers have 23 years of Experience in the Bearing Industry.
Service & Quality control
We supply detailed drawings and offer whenever necessary.
We inspect every piece of bearing by ourselves before delivery.
