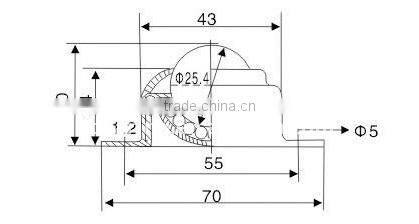

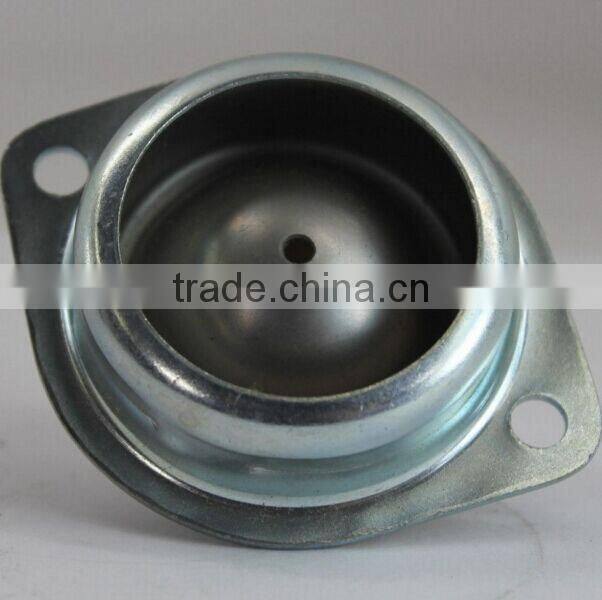

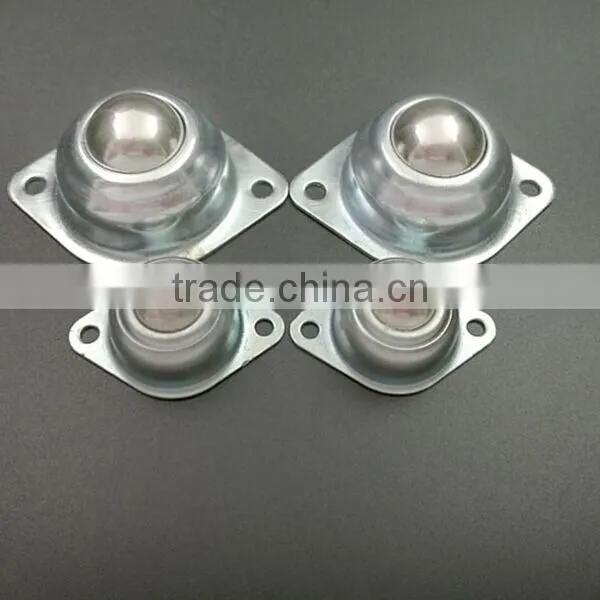

Ball Transfer unit CY-25A
Ball transfer units are a multi-directional, material handling system. Moving in all directions, ball transfer units enable the easy transfer of light and heavy loads - changing the direction of motion instantly.
As a component that can transport unit product turning, circumgyratetion and pushing conveniently, ball transfer has wide application transmission, feeding, maching system, processes the machinery and in the pack machinery supporting facility. Ball transfer material may be selected according to the different using environment, situation and purpose. (please use lubricating oil when it works.
They consist of a large load-bearing ball which sits upon many smaller balls encapsulated in a hemi-spherical cup. The design greatly reduces friction and allows heavy loads to be moved with a minimum of effort.
Model No. | Ball size | Loading capacity Maximum/Breaking |
CY-15A | 15MM | 10KG/15KG |
CY-18A | 18MM | 20KG/25KG |
CY-25A | 25.4MM | 25KG/30KG |
CY-30A | 30MM | 40KG/50KG |
CY-38A | 38MM | 60KG/80KG |
|
|
|
CY-16B | 16MM | 10KG/15KG |
CY-25B | 25MM | 25KG/30KG |
CY-30B | 30MM | 35KG/40KG |
CY-38B | 38MM | 45KG/55KG |
|
|
|
CY-8H | 8MM | 3KG/5KG |
CY-15H | 15MM | 15KG/25KG |
CY-22H | 22MM | 40KG/55KG |
CY-30H | 30MM | 70KG/85KG |
