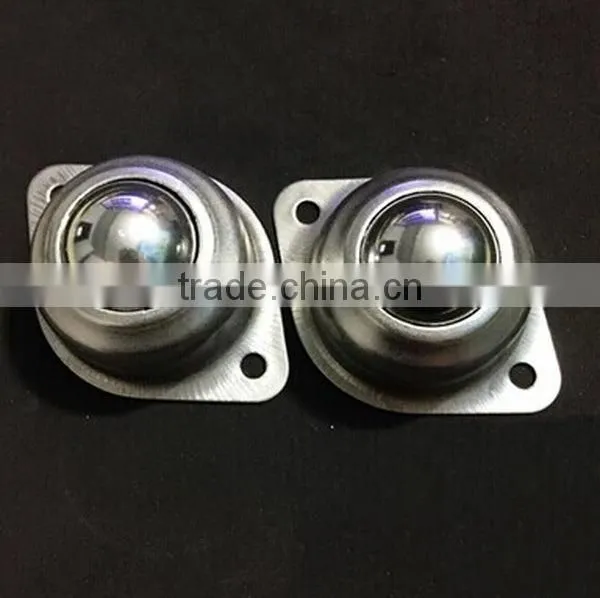

High quality steel ball transfer unit CY30A
Feature:
As the universal ball rolling flexible, so that the work of the work board, material boxes and other objects can be very flexible slip, which greatly reduce the labor intensity of workers, according to different requirements can be arbitrarily set universal ball Distribution density, you can also choose a different carrying capacity of the universal ball. Wanxiang ball with carbon steel zinc and stainless steel two materials.
Application:
ball transfer unit is applicable to various industries such as electronics, hardware, machinery, chemical industry, food, forest, mining, books, supermarkets and rubber.It is widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.
1. ball transfer unit used in conveyor
The universal ball conveyor is a non-powered conveyor that uses ball to transport. As the items in the ball can be transported in any direction, so called the universal ball conveyor. The conveyor is often used to transport the bottom surface smooth, smooth items, such as trays and so on. Not suitable for conveying the bottom of the uneven (such as ordinary turnover box), and soft bottom (such as cloth wrapped, etc.) delivery. Universal ball conveyor easy to install (only the universal ball can be fixed on the platform), flexible transmission, reliable performance, easy maintenance.
2.ball transfer unit used in universal table
universal table is a number of bearing capacity of the universal ball with a certain density fixed on the plate to form a platform, because the universal ball rolling flexibility, so that the work of the work board, material boxes and other objects can be very flexible slippage, thus Greatly reduce the labor intensity of workers; according to different bearing requirements can be arbitrarily set the distribution density of universal ball, you can also choose a different carrying capacity of the universal ball. Universal ball with carbon steel galvanized and stainless steel two materials. Due to the flexible structure of the universal table, is widely used in the pipeline transport, transition, turn and other occasions.
Model No. | Ball size | Loading capacityMaximum/Breaking |
SP-8 | 8MM | 8KG/15KG |
SP-12 | 12MM | 25KG/30KG |
SP-15 | 15.875MM | 40KG/50KG |
SP-22 | 22.23MM | 140KG/160KG |
SP-25 | 25.4MM | 180KG/200KG |
SP-30 | 30.16MM | 250KG/300KG |
SP-45 | 45MM | 450KG/500KG |
SP-60 | 60MM | 800KG/1200KG |
SP-76 | 76MM | 2000KG/2500KG |
SP-90 | 90MM | 3000KG/3500KG |
|
|
|
SP-8FL | 8MM | 8KG/15KG |
SP-15FL | 15.875MM | 40KG/45KG |
SP-22FL | 22.23MM | 140KG/160KG |
SP-30FL | 30.16MM | 200KG/230KG |
SP-45FL | 45MM | 400KG/450KG |
if you are interested in this product, please contact me freely.
Attn:connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
