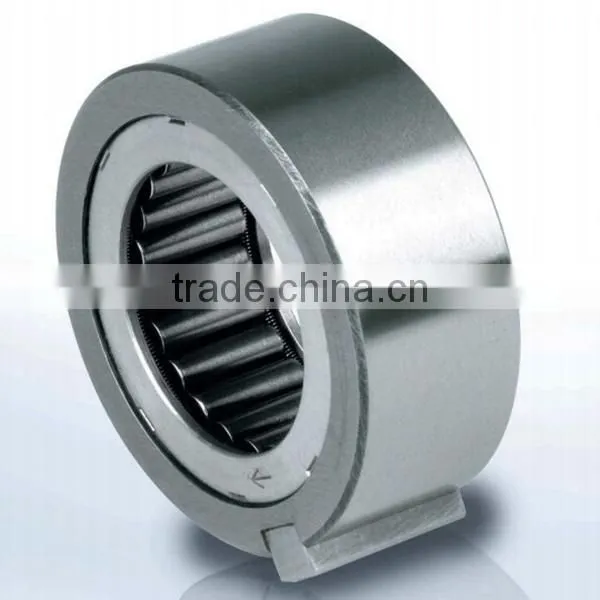

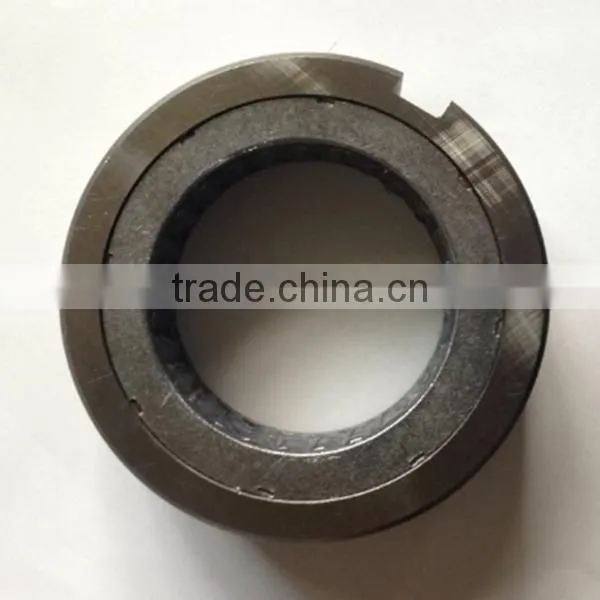

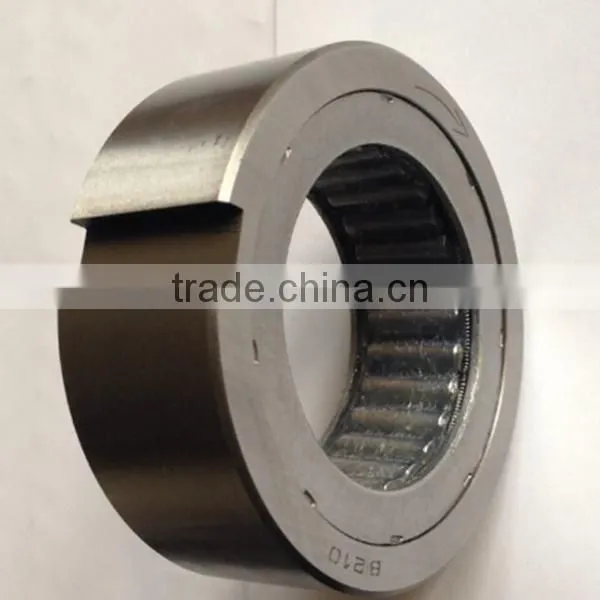

one way clutch bearing B210 for packing machinery
B210 is without inner ring without support of the sphenoid starting clutch bearing.When using the shaft directly installed in the clutch.So for the clutch shaft need after grinding hardening treatment to HRC58-62, the shaft taper every 50 mm should not be more than 0.01 mm, outer ring wall and machine installation in key ways.In order to guarantee the concentricity of the shaft and outer ring of the clutch and bearing outer ring and shaft radial or axial load, must be in the ends of the clutch installed side by side or end bearing, provide lubrication oil supply and external oil seal, in order to achieve the best effect.
Applicable to the limit speed of 1000-2400r/min, the nominal torque is: 39.2-1390n. M. It is commonly used in packaging machine, bolt drill, bag machine, corrugated paper production line, reducer, hoist, electric roller, and agricultural machinery.
| part no. | overspeed | dimensions | bearing GB/T276-1994 | weight [kg] | |||||
| inner ring | outer ring | d[H7] | D[h7] | B | bw×tw | ||||
B203 | 39.2 | 2400 | 500 | 16.510 |
| 25 | 4×2.5 | 6203 | 0.23 |
B204 | 58.5 | 2400 | 500 | 18.796 |
| 25.0 | 5×3 | 6204 | 0.34 |
B205 | 98 | 1800 | 400 | 23.622 |
| 25.0 | 5×3.0 | 6205 | 0.45 |
B206 | 235 | 1800 | 350 | 32.766 |
| 28.0 | 7×4.0 | 6206 | 0.68 |
B207 | 372 | 1800 | 300 | 42.088 |
| 28.0 | 7×4.0 | 6207 | 0.80 |
B208 | 549 | 1800 | 200 | 46.761 |
| 32.0 | 10×4.5 | 6208 | 0.91 |
B209 | 549 | 1800 | 200 | 46.761 |
| 32.0 | 10×4.5 | 6209 | 0.95 |
B210 | 784 | 1200 | 200 | 56.109 |
| 32.0 | 10×4.5 | 6210 | 1.00 |
B211 | 784 | 1200 | 200 | 56.109 |
| 32.0 | 10×4.5 | 6211 | 1.40 |
B212 | 1230 | 1200 | 180 | 70.029 |
| 42.0 | 10×4.5 | 6212 | 1.80 |
B213 | 1230 | 1200 | 180 | 70.029 |
| 42.0 | 10×4.5 | 6213 | 2.30 |
B214 | 1390 | 1000 | 180 | 79.356 |
| 42.0 | 12×4.5 | 6214 | 2.40 |
