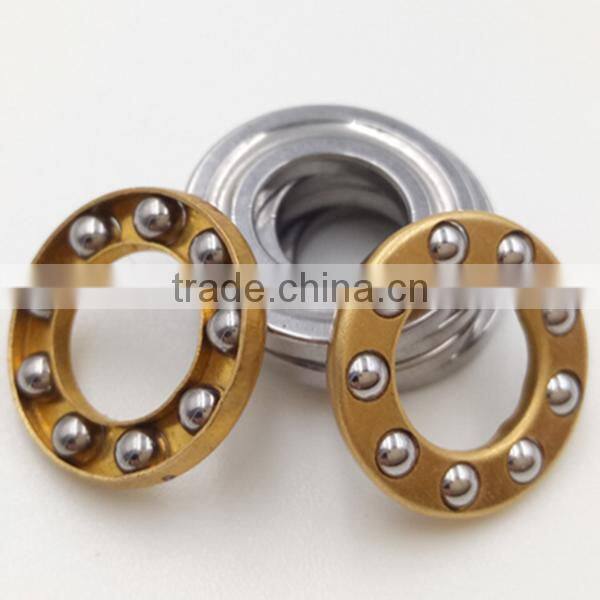

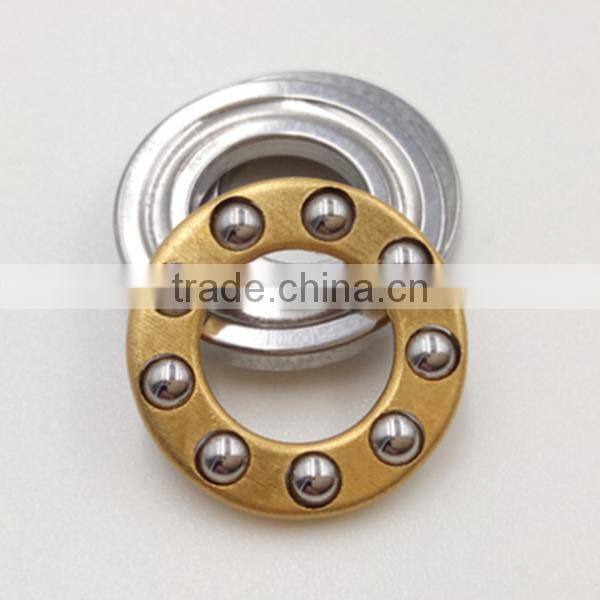

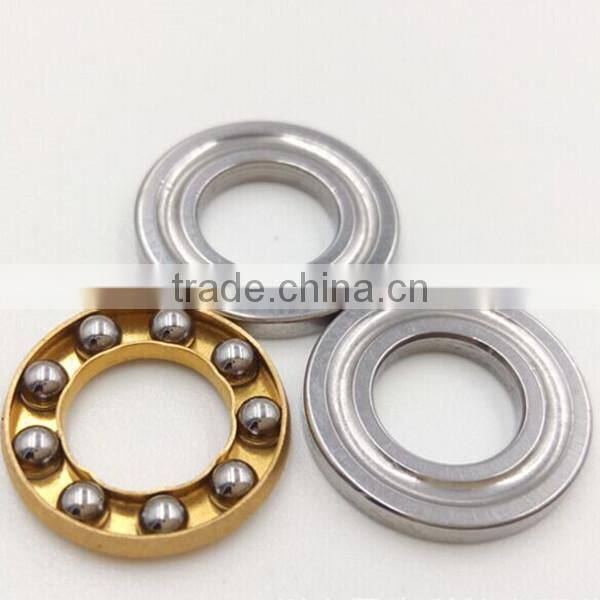

High quality thrust ball bearing 51101
Thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Features:
1.Thrust ball bearings can handle loads in the axial direction only.
2.Bearing rings mounted on the shaft are called shaft washers, while those mounted in the housing are called housing washers.
3.Both washers contain raceways for the balls.
4.Thrust ball bearings are available as both single a bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls.
5.The center washer is located in axial direction by a shaft shoulder and sleeve.
6.Care must be taken in handling to prevent damage to separate rings and ball assemblies.
7.The trust ball bearings are Available in two designs: single direction and double direction.
8.Thrust ball bearings material: bearing steel, high chrome, carbon steel, stainless steel, ect,
if you are need this product, please contact me freely.
