High Accuracy Super Thin Section Bearing JU100cp0 / Cscu100-2rs
US$ 30 - 180
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
254,
Outside Diameter:
273.05,
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
v Groove Guide Bearing Track Rollerbering RM1-2RS W1XUS$ 2.4 - 3.88MOQ: 100 Pieces -
U Groove Track Roller Bearing SG10US$ 1 - 2MOQ: 100 Pieces
-
LV20/8zz or 2rs Double Row V Groove Track Roller BearingsUS$ 1.2 - 1.3MOQ: 1 Piece
-
6300 Zz/rs 10x35x11mm Motorcycle Single Way BearingUS$ 0.2 - 0.25MOQ: 1 Piece
-
V Groove Track Roller Bearing LV20/8ZZ for Linear Motion Guide RailUS$ 1.5 - 3.2MOQ: 100 Pieces
Brand Name
NTL
Bore Size
254,
Outside Diameter
273.05,
Model Number
JU100cp0
Precision Rating
P0 or as customer's request
Seals Type
Sealed
Number of Row
Single Row
Place of Origin
Zhejiang, China

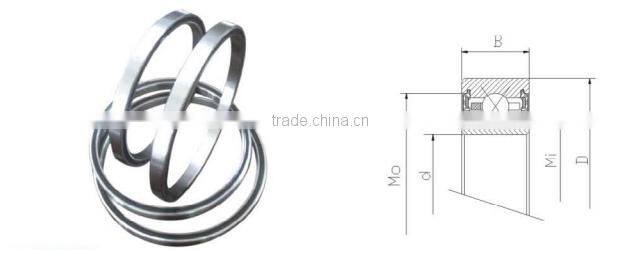

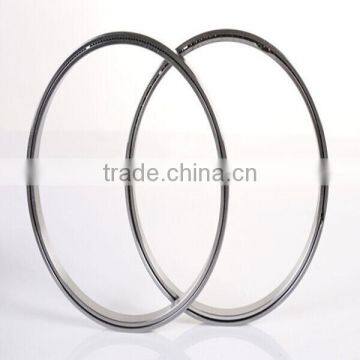

High accuracy super thin section bearing JU100cp0 / cscu100-2rs
Features
- This C-Type, radial contact ball bearing is designed with deep ball grooves to withstand high loads. Although this bearing is used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads, and moment loads.
- Lubricated with MIL-PRF-23827 grease, external surfaces are lightly coated with the same grease for corrosion resistance, vacuum sealed in a plastic bag for shipping.
- Manufactured to ABEC 1F precision tolerances related to the bearing bore, outer diameter, radial runout, axial runout and radial play.
- Static Thrust Rating 7140 pounds, Dynamic Thrust Rating 5170 pounds, Static Moment Rating 14810 pounds, Dynamic Moment Rating 10730 pounds
- This RBC thin section ball bearing can be advantageous in a design where space limitations, combined loading, or weight restrictions are proving to be challenging to overcome with a traditional ball bearing solution.
Application
Aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery
| Type | d mm | D mm | B mm | Ball | Mass Kg | Co(N) | Cr(N) | |
| JU040CP0 | JSU040CP0 | 101.6 | 120.65 | 12.7 | 35 | 0.249 | 9,340 | 5,740 |
| JU042CP0 | JSU042CP0 | 107.95 | 127 | 12.7 | 37 | 0.263 | 9,880 | 5,870 |
| JU045CP0 | JSU045CP0 | 114.3 | 133.35 | 12.7 | 39 | 0.277 | 10,410 | 6,010 |
| JU047CP0 | JSU047CP0 | 120.65 | 139.7 | 12.7 | 41 | 0.295 | 10,940 | 6,090 |
| JU050CP0 | JSU050CP0 | 127 | 146.05 | 12.7 | 43 | 0.308 | 11,520 | 6,180 |
| JU055CP0 | JSU055CP0 | 139.7 | 158.75 | 12.7 | 47 | 0.336 | 12,590 | 6,410 |
| JU060CP0 | JSU060CP0 | 152.4 | 171.45 | 12.7 | 51 | 0.367 | 13,660 | 6,630 |
| JU065CP0 | JSU065CP0 | 165.1 | 184.15 | 12.7 | 55 | 0.395 | 14,720 | 6,810 |
| JU070CP0 | JSU070CP0 | 177.8 | 196.85 | 12.7 | 59 | 0.422 | 15,790 | 6,980 |
| JU075CP0 | JSU075CP0 | 190.5 | 209.55 | 12.7 | 63 | 0.449 | 16,860 | 7,120 |
| JU080CP0 | JSU080CP0 | 203.2 | 222.25 | 12.7 | 67 | 0.481 | 17,930 | 7,340 |
| JU090CP0 | JSU090CP0 | 228.6 | 247.65 | 12.7 | 75 | 0.535 | 20,060 | 7,700 |
| JU100CP0 | JSU100CP0 | 254 | 273.05 | 12.7 | 83 | 0.594 | 22,200 | 7,920 |
| JU110CP0 | JSU110CP0 | 279.4 | 298.45 | 12.7 | 91 | 0.649 | 24,330 | 8,360 |
| JU120CP0 | JSU120CP0 | 304.8 | 323.85 | 12.7 | 99 | 0.708 | 26,470 | 8,780 |
