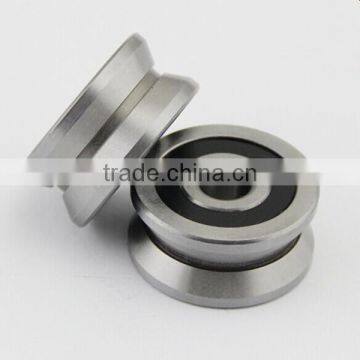

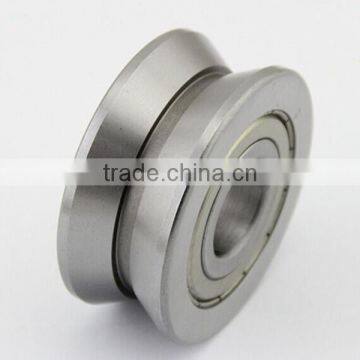

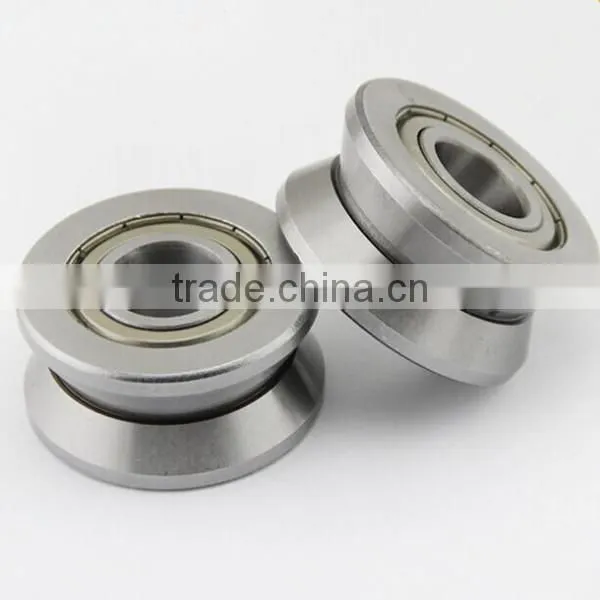

V groove track roller bearing LV20/8ZZ for linear motion guide rail
Series LV bearings can be widely used in the cylindrical track or " V " profile track with an angle of 120 degrees. Different from the series LFR bearings, series LV bearings are more adaptable to the different track sizes. Each type can be applied with a larger range of track diameters. They are widely used for the heavy-duty track, mobile equipment, wire straightening machine and so on.
• Bearings take the internal structure design of double row angular contact ball bearings and have a thick-walled outer ring, so the bearings can accommodate higher loads.
• Bearings are made of the high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Bearings take the metal shield to prevent the dust. We also can provide the bearings with concentric or eccentric pivot.
Application:
For mounting wherever axial and radial loads are expected
For most parts for torque transmission
Home appliances, electric motors, automotive component
| earings NO. | Dimensions | Basic Load Ratings | Weight | |||||||
| dw | d | D | C | A | r | Cr | Cor | |||
| min. | Dynamic | Static | ||||||||
| NJSKT | mm | kN | g | |||||||
| LV 20/7 | RV 20/7-10 | 10 | 7 | 22 | 11 | 14.5 | 0.3 | 2.45 | 1.62 | 17 |
| LV 20/8 | RV 20/8-10 | 10 | 8 | 30 | 14 | 18.1 | 0.3 | 4.49 | 2.7 | 62 |
| LV 202-38 | RV 202/15.38-10 | 10 | 15 | 38 | 17 | 22.3 | 0.5 | 7.29 | 4.55 | 86 |
| LV 202-40 | RV 202/15.40-10 | 10 | 15 | 40 | 18 | 22 | 0.5 | 7.95 | 4.95 | 110 |
| LV 201 | RV 201/12-20 | 20 | 12 | 41 | 20 | 28 | 0.3 | 8.18 | 5.1 | 130 |
| LV 202-41 | RV 202/15.41-20 | 20 | 15 | 41 | 20 | 28 | 0.5 | 8.18 | 5.1 | 120 |
| LV 203 | RV 203/17 | 20 | 17 | 58 | 25 | 35 | 0.5 | 16.58 | 9.2 | 325 |
| LV 204-57 | RV 204/20.57-30 | 30 | 20 | 57 | 22 | 41 | 0.6 | 16.91 | 9.2 | 290 |
| LV 204-58 | RV 204/20.58-30 | 30 | 20 | 58 | 25 | 41 | 0.6 | 16.79 | 9.2 | 310
|
if you are interested in our prodcts, just contact me freely:)
eamil:connie at
whatsapp:+8615073676619
wechat:empty919
