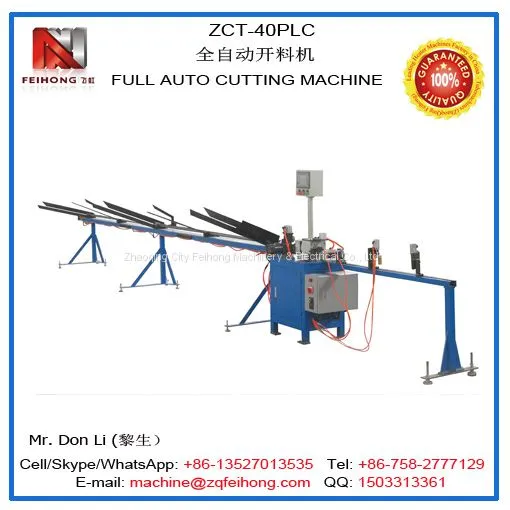

ZCT-40PLC Full-Auto Cutting Machine

This Full-Auto Cutting Machine is a special equipment.for cutting varies pipes include heated pipes.

This machine is controlled by PLC, also it shows the operating process through text.

Pneumatic mechanism controls the elastic chucks and works together with cutters，cutting tubes through fixed position of mechanism.

Stable function is the merits of the machine.Operation and preventive maintenance is very simple, a man can look after several equipments, the production efficiency is rather high.

MAIN TECHNICAL PARAMETER:

1.Voltage:AC380V±10%/50Hz

2.Air Supply:5～7KG/cm²

3.Motor Power: 0.75KW/1400rpm

4.Suit diameter :Φ6～Φ12(according to the size of elastic chunks)

5.Product efficiency:1000pcs per eight hours.
