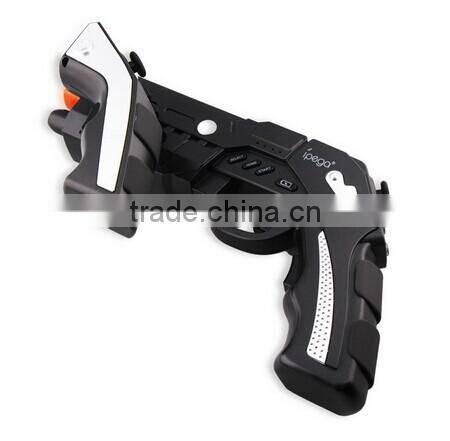

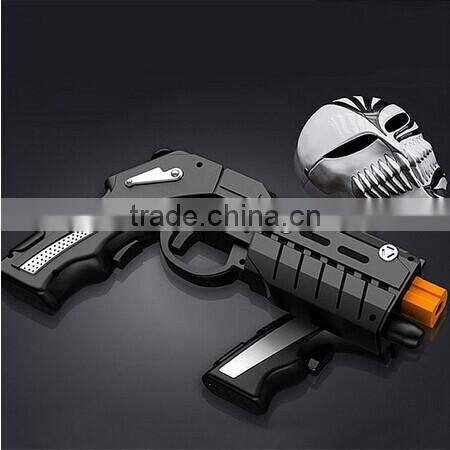

IPEGA 9057 PG-9057 Gun Style Wireless Bluetooth Game Controller Joysticker Gamepad Handset for Cellphone Tablet TV Box Feature:
1.iPega PG-9057 Game Gun is optimized designed, holding it makes you feel like a real warrior.
2.By holding the gun and turning in either direction, the player on-screen moves correspondingly.
3.It¡¯s also equipped with an analog stick on the muzzle end of the gun-controller, which enables forward and backward movement so you don¡¯t have to walk around your house bumping into things to get around the map, you can even feel the from the gun when shooting.
4.Rather than sitting on your couch and suffering through the pain of your thumbs cramping up, now you can stand up and move around as if you were physically in the game, experience the real pleasure of the game.

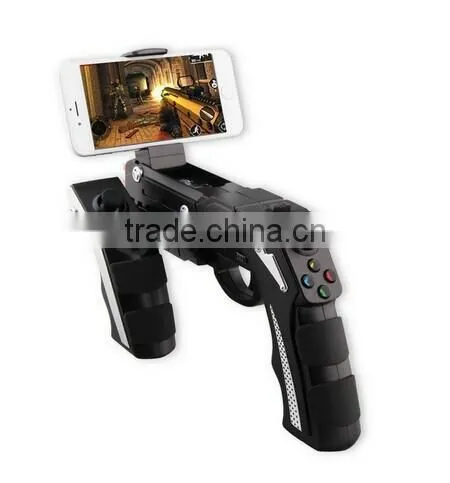

5.It comes with an attachable bracket capable of holding your mobile device at the end of the gun.
6.Simply attach your mobile device or tablet to the bracket, firmly plant your pivot foot and brace for the kick back after firing each shot, the built in will heighten the level of realism when you play.
7.The size, position of our input keys, and strength of were all carefully considered also you can map the function in the game to any key on the gun freely.
8.You will feel comfortable and at ease controlling to game.

Specifications:
Model: PG-9057
Battery: Built-in Lithium 600mAh
Compatible models: Cellphone, Tablet, , PC or Smart TV/TV Box with bluetooth function
Supported OS: Android 3.2, iOS 7 or above
Operating range: 8 meters
Charging time: about 2 hours
Working time: up tob25 hours

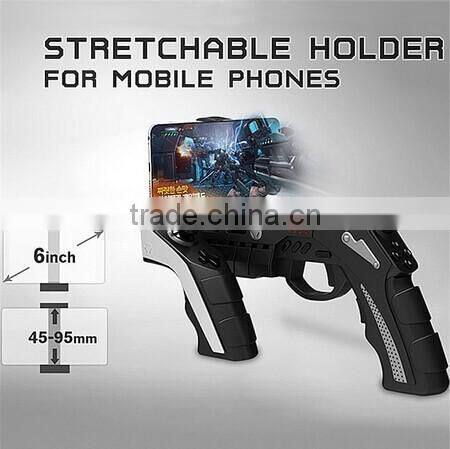

Telescopic stand: 45~95mm (Support up to 6" devices)
Working voltage: DC3.7V
Working current: 25mA~30mA
Input: DC5V 500mA

Package Includes:

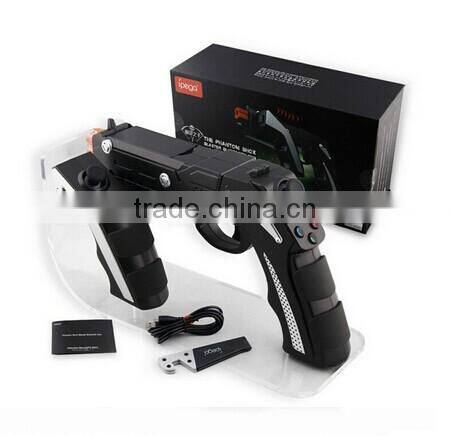

1x Ipega PG-9057 Wireless Bluetooth Game Gun Controller

Product Usage:

Android devices use
1. Select the Use mode: the game gun mode toggle switch to Android;
2. Power Bluetooth search: shutdown state press and hold the HOME button for 3 seconds, then LED1.LED2 blue lights flash at the same time, the handle into the Bluetooth searching state;
3. Pairing Connection: Open Android device you are using Bluetooth search function, such as search to "PG-9057" Bluetooth name, then select the connection, the connection is successful blue light indicator LED1.LED2 page after entering the game need! related function keys mapping settings (simulator games without mapping settings);
4. Set the mapping function keys: enter the game controller settings Page Setup button click Customize game settings button press game gun function key (A / B / X / Y / L1 / L2 / / R1 / R2 / R3) Setting Done to return to the game

After completion of mapping settings

5. button, you can start playing the game;
6. Operation in the game hall platform game, then do not be mapped keys, the keys have been the default settings on the game lobby platform, you can play games operate directly;
7. Motor vibration settings: products with the motor vibration function in the Bluetooth connection OK, enter the game shootout state, adjustment shall be at the motor control switch to turn on the motor vibration function, pull the trigger when the key R2, the motor starts to vibrate. After loosening stop! Depending on the game, the game pulled the trigger key function keys are not the same, such as the need to vibrate when buckle under the trigger button R2, you need to key in the game will feature a game controller R2 keys to set the same method described in point 4 above;
8. Andrews GamePad mode: When Stubbs switch to Andrews mode, shutdown mode, long HOME button for 3 seconds to enter pairing mode, the connection is successful GamePad default mode;
9. Andrews keyboard mode: When you need to switch to keyboard mode in the Bluetooth connection status, press the A key, then press the HOME key can dynamically switch keyboard mode,
10. Andrews mouse mode: In Android keyboard mode or GamePad mode Bluetooth connection status, press the Y key, then press the HOME key can dynamically switch to mouse mode, right-3D control cursor movement, where L1 button to confirm, R1 key is return;

Use iOS device
1. Select the Use mode: the game gun toggle switch to iOS mode;
2. Power Bluetooth search: Hold down the HOME key turned off three seconds, this time LED3.LED4 blue lights flash at the same time, the handle into the Bluetooth searching state;
3. Pairing Connection: open iOS device you are using Bluetooth search function, such as the search for "PG-9057" Bluetooth name, select the connection, the connection is successful indicator LED3.LED4 blue light;
4. The motor vibration settings: products with the vibration of the motor function after Bluetooth connection OK, enter the game shootout state, adjustment shall be at the motor control switch to turn on the motor vibration function, pull the trigger when the key R2, the motor starts to vibrate. After loosening stop! Depending on the game, the game pulled the trigger key function keys are not the same, such as the need to vibrate when buckle under the trigger button R2, you need to key in the game will feature a game controller is set to R2 key (Setting method with Andrews mode);
5. iOS X_KEYBOARD mode: Stubbs switch in iOS mode, in the off state, long press the HOME button for 3 seconds to enter pairing mode, the connection is successful X_KEYBOARD default mode (iOS devices jailbreak MFI certification directly play games) when while in X_KEYBOARD mode, press SELECT button, then press R3 button, brings up the iOS device keyboard interface for keyboard touch operation, specific methods of operation described as follows:

Under x-keyboard mode you can download games in the following ways:
1> Install new tour handle arcade download games: http: // /newgame new amusement arcade After successful installation, you can download and install the game (for non-jailbroken iOS devices);
2> is jailbreak iOS devices from Cydia by adding: "apt.xiaoqi.fm" source, install "flags MFi handle plug-in", can be used.
Add Method: Go to the official website of the flags www.xiaoqi.fm Home> flags Games> iOS version download.

You can see the specific method of operation;

3> above mode function does not rule out official code because gaming platform upgrades and other factors can not be used, the Division I final.

6.iOS iCade mode:

1. iOS phone or tablet device system, be sure to switch the input method for the text input mode, and then iCade mode
Switching pairing, otherwise handle not work properly.
2. pairing method: you must first long press the HOME button for 3 seconds off, press the B button, then press the HOME key to enter pairing mode, the Bluetooth connection after the success was iCade mode.

PC equipment use;
First, confirm whether the built-in Bluetooth PC side, if there is no need to configure the Bluetooth adapter to connect to use. The game gun mode toggle switch to Android; shutdown mode first press the HOME button for 3 seconds to enter the code after a Bluetooth connection to operate a successful game.

Fifth, the battery charge indicator and battery View and sleep / wake-up function:
1. Access Gun Game USB interface charging via power adapter via the supplied USB charging cable;
2.Charge LED1.LED2.LED3.LED4 slow flashing red light at the same time, turns off when charging is complete;
3. Product with electricity viewing, when you press the power button to view: the battery is at 10% to 25% LED1 red light; the battery is at 25% ~ 50% LED1.LED2 red light; the battery power When 50% ~ 75% LED1.LED2L; LED3 red light; the battery is at 75% ~ 100% LED1.LED2L; LED3.LED4 red light;

The sleep / wake function: Game gun is not used within five minutes into hibernation, when the need to re-use basis having the HOME key to wake up and automatically back even into the last usage patterns
