Specifications
1) Dual stream encoding (H.264/MJPEG)2) 1/2.5-inch 2.0 Megapixel Aptina AR0330 CMOS, include 3.6mm fixed lens
1) Dual stream encoding (H.264/MJPEG)
2) 1/2.5-inch 2.0 Megapixel Aptina AR0330 CMOS, include 3.6mm fixed lens
3)IR view distance: 20m(36pcs leds)
3) Main Flow: 2MP:1920*1080@15FPS 1MP:1280*720@30FPS
Minor Flow: 640*360@30fps
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
Image Processing: Auto Exposure (AE); Auto White Balance (AWB); Auto Gain Control (AGC). Alarm action;support email message etc.
Device | |||
Model | IPS-Eye06L | IPS-Eye06S | |
Device Type | 1.0 Megapixel CMOS Sensor | 2.0 Megapixel CMOS sensor | |
Size | 1/4” | 1/2.5” | |
Day&Night | Yes | ||
Color | 3-8lux(IR ON) | ||
IR Cut | Support | ||
Filter | IR-CUT Filter | ||
IR Led | Yes | ||
IR Distance | 8-15M | ||
Lens | |||
Lens | 3.6MM | ||
IRIS | Fixed Aperture F1.2 | ||
Viewing Angle | Horizontal 65° | ||
Video | |||
Compression | H.264 | ||
Resolution & Frame | Main Flow: 1280*720@30fps Minor Flow: 640*360@30fps | Main Flow: 1920*1080 @15fps 1280*720@30fps Minor Flow: 640*360@30fps | |
Code Stream | Support Dual Stream | ||
Code Rate | 32-4096kbps | ||
Bit Rate Type | CBR & VBR | ||
SNR | Above 50DB | ||
Image Enhancement | Automatic White Balance, Backlight Compensation,Luminance, Contrast, Color Adjustment | ||
Video Cover | 4 Region can be set up | ||
Superposition of Words | User Defined | ||
Flip Config | Up/Down, Left-right-flip | ||
Alarm | |||
Audio | NO | ||
Device |
| ||
Audio In/ Out | 1 CH | ||
Audio Compression | G.711/G.726 | ||
Alarm In/ Out | 1CH | ||
Alarm Way | Motion Detection | ||
Alarm Procession | The central control monitor, Got to PTZ preset pos, Send E-mail, Log Record, SD Card storage, etc. | ||
|
| ||
Protocol & Service | TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D | ||
Ethernet Port | Ethernet (10/100 Base-T),RJ-45 connector | ||
Security | IP Address Filter,User Password Protection, User Access Log | ||
Software | |||
WEB Browser | Microsoft Internet Explorer 6.0 or above,google,firefox, etc | ||
Software Management | Multi-channel Network Surveillance System ONVIF Compatibility | ||
Intelligent Software Function | Motion Detect,Miss Object Detection,Suspicious Detection, Moving Object Tracking, Guard Line Detection, etc. | ||
Event Action | Video Capture Saved to Backing Device, Send Email, Send SMS, Zoom in alarm, Pop ap map, Go to PTZ preset pos etc | ||
Mobile Client | Iphone, Android | ||
Remote Access | DDNS, software, P2P | ||
General | |||

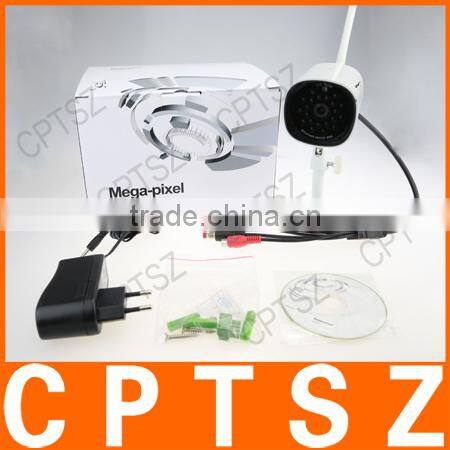

Accessories | Power adapter, Network Cable, Stand, User Manual, Disk, Screw Bag | ||
Power Consumption | DC 12V/1A | ||
Operation Temperature | -10°C——60°C | ||
Operation Humidity | 10%-80% | ||
Weight | 0.415KG | ||
Dimensions | Φ57*11.3mm (Dia*L) | ||
Certification | CE,FCC | ||
