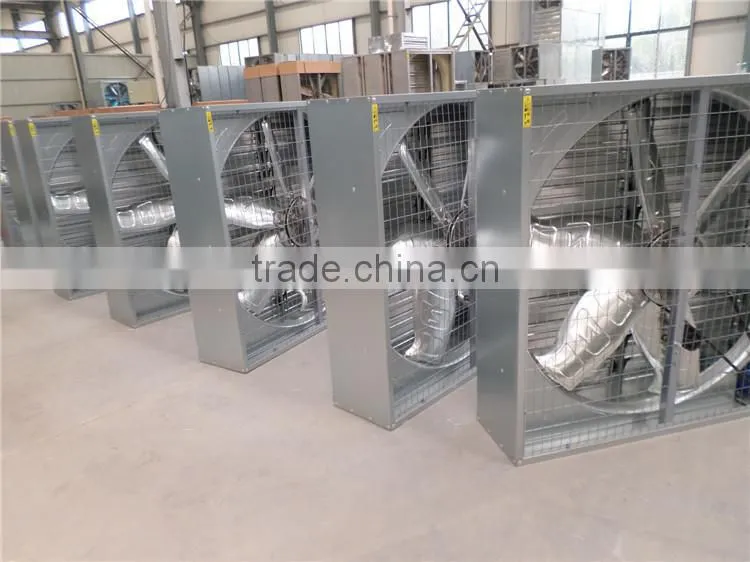

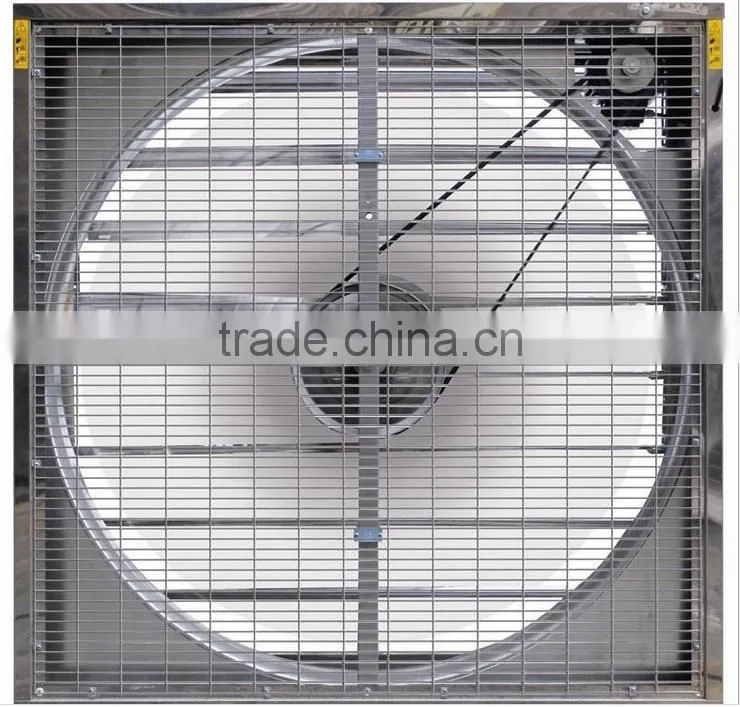

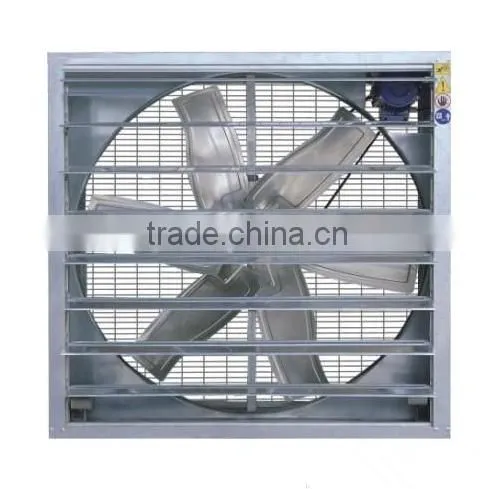

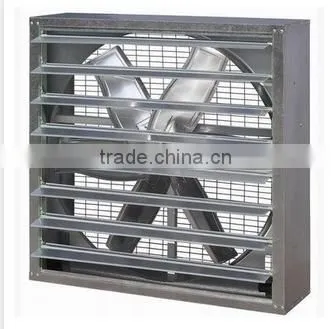

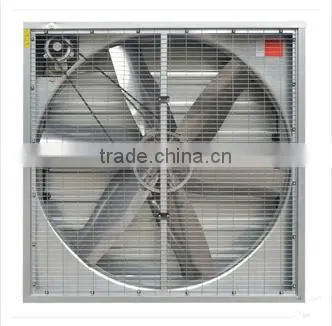

Plant ventilation fan, industrial fan, animal husbandry ventilation fan
| Item |
Propeller Φ |
Complete Size | Propeller Speed | Flow Rate | Noise | Power | Voltage | Frequency | Phase | Carton Size |
| mm | L×H×W (mm) | RPM | m3/h | dB(A) |
(HP) /(KW) |
V | HZ | ph | L×W×H(cm) | |
| XF-1380 | 1270 | 1380×1380×400 | 450 | 44500 | 71 |
1.5HP 1.1KW |
230 380 | 50 60 | 1ph 3ph | 140×140×42 |
| XF-1220 | 1110 | 1220×1220×400 | 480 | 37000 | 65 |
1HP 0.75KW |
122×122×42 | |||
| XF-1060 | 950 | 1060×1060×400 | 500 | 32000 | 60 |
3/4HP 0.55KW |
108×108×42 | |||
| XF-900 | 770 | 900×900×400 | 520 | 28000 | 55 |
1/2HP 0.37KW |
92×92×42 |
1. Huge airflow, Low noise, high efficiency.Good looking, the surface smoothness & gloss without rough edges.
2.Shutters be use counterweight open-close system.Easy to maintenance.
3.Be introduced the advanced technology from Europe, suitable for various nvironment.
4.Fan housing: Strength galvanized steel.
5.Shutters: Strength galvanized steel(Stainless steel for option).Good seal performance,
prevent rain come intothe fan and easy to remove and maintenance.
6.Fan Propeller: 6pcs blades of propeller made from CNC punch.
Rational angles of the blades to supply hugeairflow and low noise.Fan blades with Strength galvanized steel
7.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
8.Belt Pulley:Be made by strength die casting aluminum with once-forming press. Smooth surface of the groove to supply low noise and huge airflow, and extend the working life of the belt.
9.V-Belt: be use USA “GATES” belt to supply performance of high strength & good ductile.
10.Motor pulley: Be made by die casting iron with smooth surface treatment.
It can extend the working life of the belt and supply low noise & huge airflow.
11.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.
12.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience
for installation.

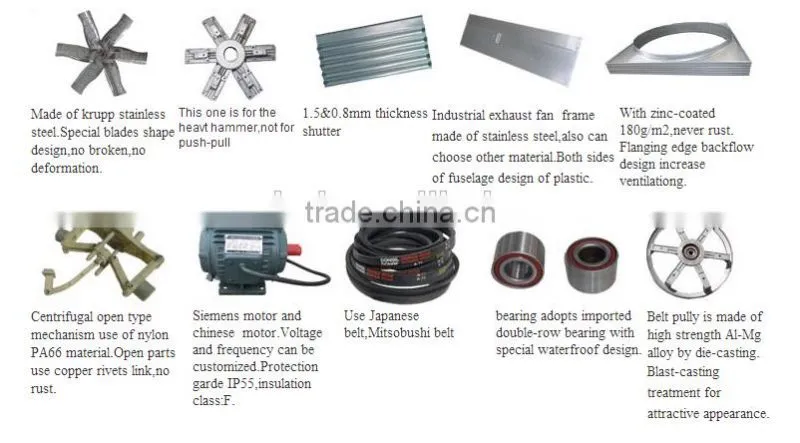

picture of description

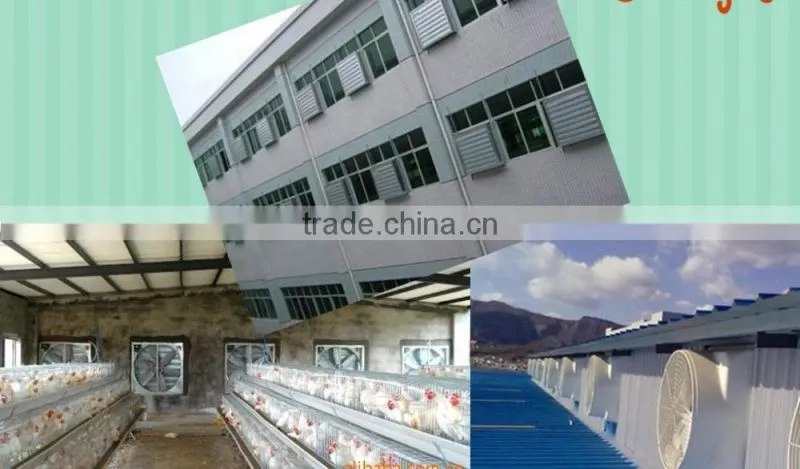

Applications of product
Our factory owns a group of high quality and high-tech professional designers and staff members.
Our competitive Advantages of wheelchair motor
A) Cost advantage
We have our own workshop, metalprocess workshop and many other advanced machines. Key production parts are manufactured by ourselves.
B) Technological advantage
Our R&D center is provincial R&D Center. There are 4 Professor grade engineers and 6 senior engineers in our company.
C) Substantial experience and good service
We professionally produce motors and fans for more than 33 years. And we have done international trade for more than 10 years. So we can supply high quality products and services.
D) High cost performance
We have cost advantage, technological advantage and substantial experience. So our products have high cost performance. You can take the same cost purchase more better goods, or spend less for the same product.
Welcome to the world of motors and fans .

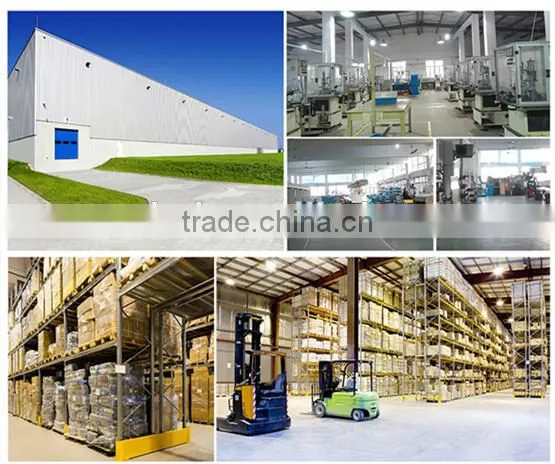

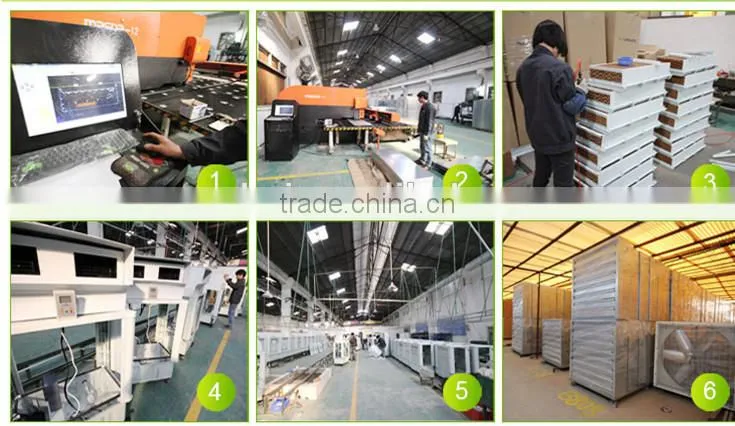

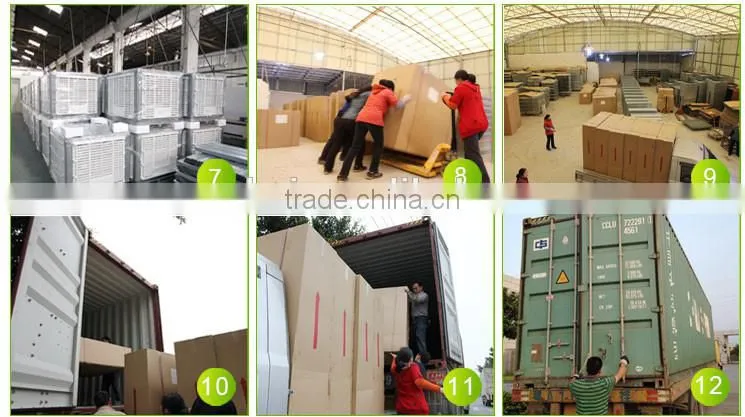

A)Have a glance at our Manufacturing facility of wheelchair motor
We have our own high speed punching machine, digital control machine, grinding macine, automatic coil winding machine, injection machine,and many other advanced equipments. Key production parts are manufactured by ourselves.
For more information, welcome to visit our company at any time.
Q: Are you a trading company or a factory ?
A: We are a factory.
Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers , we use highly galvanized sheet for all ventilation exhaust fans , and screws all use good quality stainless steel , won't be rusted . For plastic products (e.g. air coolers ) we all use new material to make sure the products can be long use . All our products , we use China famous motor brand , the motor can 1 year guarantee , with a correct using , the motor life can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big MOQ and maybe price will be a little higher . Our normal voltage is 380V 50HZ 3phase .
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you really want low price we will suggest you choose lower stage product , in our company , we don't have bad quality products , you can reassure about the quality .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products , it's all by your request .
