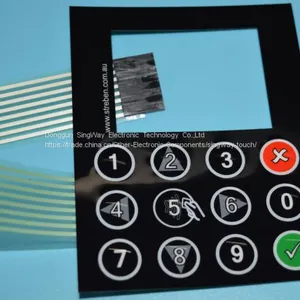

Keypad Membrane Switch Flexible Circuit With 3m Adhesive
US$ 1.2 - 1.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
XWM
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN PORT
Delivery Detail:
15 days
Related Products
-
High Quality Membrane Switch Customized by SingWayUS$ 1.99 - 2.5MOQ: 100 Pieces -
OEM Membrane Keypad Switch With ConnectorUS$ 1.6 - 1.9MOQ: 100 Pieces
-
Customize High Quality Medical Membrane SwitchUS$ 1.5 - 2MOQ: 100 Pieces
-
Screen Printing Resistant Overlay Control Keypads Membrane SwitchUS$ 5.88 - 6MOQ: 100 Pieces
-
Customize Kinds of Membrane SwitchesUS$ 6 - 6.2MOQ: 100 Pieces
Brand Name
OEM
Place of Origin
China
Model Number
XWM
Model NO.: XWM
Material: PET
Application: Telecommunication Equipment, With Remote Control
Detection Method: Reflection Type
Certification: SGS, ISO9001
Delivery Detail: 7-12 Working Days After Drawing Approved
Specification: RoHS SGS
HS Code: 85340090
Type: Flexible
Usage: Control Switch
Number of Switch: Single Control Switch
Brand: OEM
Packaging Detail: Packing According to The Different Products
Trademark: OEM
Origin: Guangdong, China
Product Description
Specifications
We one of the biggest manufacturer and very famous in China.
1. Material (PE, PC)
2. Adhesive 3M
3. LED
4. Nicomatic Connector
A. Material: RoHS compliant material, for example, Autotype, 3M, Nicomatic.
B. Dimension: According to customer 's drawing or design, OEM design.
C. Color: Pantone and Ral color match system.
D. Constrution: Various types to meet customer 's demand.
Technical Parameters
1. Electrical
Maximum Circuit Rating: 35V(DC), 100mA, 1W
Contact Resistance: 10Ω ~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: <5ms
Life: Flat: ≥ 5million times
Tactile: ≥ 1 million times
Duraswitch: ≥ 10million times
Performance:
Electrical
1. Operating voltage: 0-35V DC.
2. Operating current: 100 MA Max.
3. Operating contact resistance: Less than 100 OHMS typical.
4. Contact bounce: Less than 5 Milliseconds typical.
5. Conductors: Printed silver conductive inks or carbon blend.
6. RFI and ESD shielding: Available in most configurations.
Mechanical
1. Life expectancy: 1, 000.000 actuations per switch position
2. Actuation force: 6-24 ounces, range depending on customer specification.
3. Switch travel: . 005 to. 030 typical
4. Overall thickness: . 020 to. 050 typical
Environmental
1. Storage temperature: -40(-40° F) to +70(158° F)
2. Storage altitude: Sea level to 35, 000 feet
3. Operating temperature and attitude: -30(-30° F) to +75(170° F), can be designed to operate in most environment.
We one of the biggest manufacturer and very famous in China.
1. Material (PE, PC)
2. Adhesive 3M
3. LED
4. Nicomatic Connector
A. Material: RoHS compliant material, for example, Autotype, 3M, Nicomatic.
B. Dimension: According to customer 's drawing or design, OEM design.
C. Color: Pantone and Ral color match system.
D. Constrution: Various types to meet customer 's demand.
Technical Parameters
1. Electrical
Maximum Circuit Rating: 35V(DC), 100mA, 1W
Contact Resistance: 10Ω ~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: <5ms
Life: Flat: ≥ 5million times
Tactile: ≥ 1 million times
Duraswitch: ≥ 10million times
Performance:
Electrical
1. Operating voltage: 0-35V DC.
2. Operating current: 100 MA Max.
3. Operating contact resistance: Less than 100 OHMS typical.
4. Contact bounce: Less than 5 Milliseconds typical.
5. Conductors: Printed silver conductive inks or carbon blend.
6. RFI and ESD shielding: Available in most configurations.
Mechanical
1. Life expectancy: 1, 000.000 actuations per switch position
2. Actuation force: 6-24 ounces, range depending on customer specification.
3. Switch travel: . 005 to. 030 typical
4. Overall thickness: . 020 to. 050 typical
Environmental
1. Storage temperature: -40(-40° F) to +70(158° F)
2. Storage altitude: Sea level to 35, 000 feet
3. Operating temperature and attitude: -30(-30° F) to +75(170° F), can be designed to operate in most environment.
