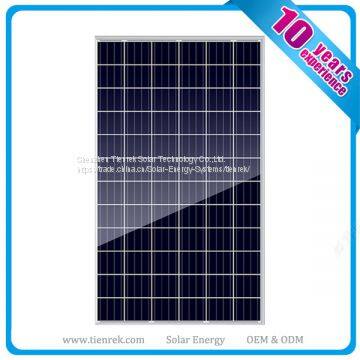

China A Grade High Efficiency Polycrystalline Type 320W Poly Solar Energy

TUV Certified Solar Panels Manufacturers in China Mono 100WP

• ITEM NO.: TR6-320P-72

• Cell Type: Poly-crystalline Silicon Solar cells

• Maximum power (Wp): 320wp

• Maximum power voltage (V): 37.70V

• Maximum power current (A): 8.94A

• Open circuit voltage (V): 45.70V

• Short circuit current (A): 8.49A

• Number of cells (Pcs): 72 (6*12) PCS

• Size of module (mm): 1956 x 992 x 45mm (156*156mm cell)

• Temperature Range: -40°C~+85°C

• NOVT(Nominal Operating Cell Temperature): 45°C±2°C

• Voltage temperature coefficient (VOC): -0.38%/°C

• Current temperature coefficient(ISC): +0.1%/°C

• Power temperature coefficient (Pmp): -0.47%/°C

• Maximum system voltage (V): 1000V

• Surface Maximum Load Capacity: 60m/s(200kg/sq.m)

• Allowable Hail Load: steel ball dropped from 1 meter

• Certificates: TUV, ROHS, CE, ISO

• Output tolerance (%): ±3%

• Weight per piece (kg): 22.0KG

• Glass Type: 3.2mm Tempered Glass

• Junction Box Type: Passed the TUV certified

• Length of Cables (mm): 900mm

• Connector Type: MC4

• Frame (Material, Corners, etc.): Anodized Aluminum Alloy

• Cell Efficiency (%): ≥18.26%

• Module Efficiency (%): ≥16.49%

• FF (%): ≥73%

• Standard Test Conditions: AM1.5 100mW/cm2 25’C

• Warranty:12years for 90% power ,25years for 80% power;
