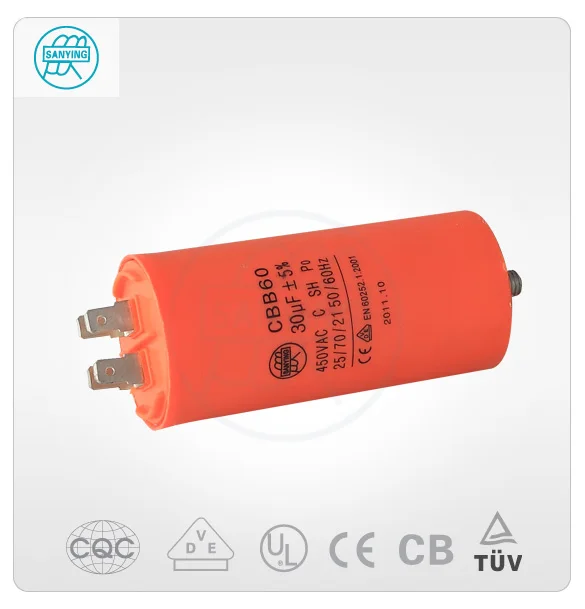

Help CenterCbb60 2 Pins Orrange Color Capacitor With Screw
Related Products
-
Lead Life 3000~10000 Hours Excellent Motor Run CapacitorNegotiableMOQ: 1000 Pieces -
Motor Run AC Capacitors for General Purpose ApplicationsNegotiableMOQ: 1000 Pieces
-
General Polypropylene Motor Run AC CapacitorsNegotiableMOQ: 1000 Pieces
-
Stable Performance Motor Run AC CapacitorsNegotiableMOQ: 1000 Pieces
-
General Purpose Run AC CapacitorsNegotiableMOQ: 1000 Pieces
MAIN TECHNICAL PARAMETER for Used in washing device ac capacitor for cbb60 2 pins orrange color capacitor with screw
| Configuration & Shell | Plastic Shell,Dry,Flame Retardant |
| Temperature | -40°C ~ +80°C |
| Capacitance Range | 0.5μF-150μF |
| Capacitance Tolerance | ±5 % |
| Dissipation Factor | Tanδ≤0.002 |
| Nominal Frequency | 50/60Hz |
| Factory Testing Voltage & Time | T-T: 2.0Un 10s;T-C: 2000VAC 10s |
| Insulation Resistance |
T-T:≥3000MΩ.μF T-C:≥1000MΩ.μF |
| Rated voltage | 250 ~ 630VAC |
| Dissipation Factor | tg§≤0.001(at 100Hz) |
| Endurance Voltage |
Between the electodes : 2.0 Un 10S Between the electodes and the sheel: 2200VAC
|
| Safety Class | PO |
| Life Class | B,C |
| Series Connection Inductance | It can be interconnected as required. |
Our Services
More than 20 years' professional experience about UL TUV VDE RoHS Approval CBB60 CBB61 CBB65 250v SH AC Motor Run Capacitor
Many certificates approval,UL,TUV,VDE,ISO,CE,CQC,RoHS,etc
Any inquiries will be timely answered within 24 hours
Structure For CBB60 Series:
Certification
Our model to choice:
The aim of servicre
We are in strict compliance with the contract in terms of the package, the transport, the delivery and other items. In addition,all the problems found by the customer when inspecting or using the product can be recovered and processed in time after we receiving the customer's information.We will put forward the treatment measures in one working day if you are in the Taizhou.If you are outside the Taizhou, the treatment measures can be made in 2 working days.
