dutch woven wire mesh with low price
- 50000 Square Meter / Square Meters per Month
- tianjin,qingdao
- T/T L/C PayPal Other
- 15 days
- Factory BBQ mesh Perforated crimped wire mesh for barbecue with best price and quality
- Hot Selling!High Quality Cheap Chain Link Fence top barbed wire/cyclone fence
- Alibaba Verified China Factory Popular Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- China Hot Sale High Quality Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- Alibaba.com Golden Supplier High Quality Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- Alibaba Made In China Anping Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
Product Details
Brand Name: | bashan | Place of Origin: | China | Model Number: | H65,H80 |
Material: | Stainless Steel Wire | Type: | Weave Wire Mesh | Application: | Filters |
Technique: | Welded Mesh | Wire Diameter: | 0.02-2mm | Weave Style: | Plain Weave |
Product Description
Product Description
Key Specifications/Special Features:
Product Name: High Tensile Spring Steel Screen Wire Mesh
Material: stainless steel wire 304/316L
Color: stainless steel colour
Standard;JB/T5979-92、Q/9D193-1998、ISO4783/1--1990
Grade : As request
Used: Used for gas, liquid filtration and other media separation.
High Tensile Spring Steel Screen Wire Mesh
Our company produces military and civilian metal wire mesh products have more than 60 years of history, with the domestic advanced screen equipment, process equipment and high-precision detection means, wire mesh specifications complete, and a strict and reliable quality assurance system to ensure that the screen product quality The wire mesh is mainly used for solid particle sieving, fluid filtration and decoration, dustproof, skeleton support and so on.
The specifications of wire mesh:
Mesh NO. | (mm)Aperture size | (mm)Wire Dia | Screening area (%) | Mesh/inch | (Kg/m²) |
5# | 4 | 1 | 64 | 5.08 | 2.52 |
6# | 3.35 | 0.8 | 65 | 6.12 | 2.15 |
3.35 | 0.63 | 71 | 6.38 | 1.39 | |
3.15 | 0.8 | 64 | 6.43 | 2.26 | |
3.15 | 0.58 | 72 | 6.85 | 1.26 | |
7# | 2.8 | 0.71 | 51 | 7.24 | 2 |
2.8 | 0.56 | 69 | 7.56 | 1.3 | |
2.5 | 0.62 | 64 | 8.12 | 1.71 | |
2.5 | 0.5 | 69 | 8.47 | 1.16 | |
8# | 2.36 | 0.56 | 65 | 8.7 | 1.5 |
2.36 | 0.45 | 71 | 9.04 | 1 | |
10# | 2 | 0.5 | 64 | 10.2 | 1.69 |
2 | 0.45 | 59 | 10.6 | 1.18 | |
1.9 | 0.6 | 58 | 10.2 | 2.01 | |
1.9 | 0.5 | 63 | 10.6 | 1.46 | |
1.8 | 0.45 | 64 | 11.3 | 1.26 | |
12# | 1.7 | 0.45 | 63 | 11.8 | 1.31 |
1.7 | 0.4 | 66 | 12.1 | 1.06 | |
1.6 | 0.45 | 61 | 12.4 | 1.38 | |
1.6 | 0.4 | 64 | 12.7 | 1.12 | |
1.5 | 0.4 | 62 | 13.4 | 1.17 | |
14# | 1.4 | 0.4 | 60 | 14.1 | 1.24 |
1.4 | 0.355 | 64 | 14.5 | 1 | |
1.32 | 0.4 | 59 | 14.8 | 1.3 | |
1.25 | 0.4 | 57 | 15.4 | 1.35 | |
1.25 | 0.315 | 54 | 16.2 | 0.88 | |
16# | 1.18 | 0.4 | 56 | 16.1 | 1.41 |
1.18 | 0.315 | 52 | 17 | 0.92 | |
1.12 | 0.355 | 58 | 17.2 | 1.19 | |
1.12 | 0.28 | 54 | 16.1 | 0.69 | |
1.06 | 0.355 | 56 | 16 | 1.11 | |
1.06 | 0.28 | 53 | 19 | 0.81 | |
18# | 1 | 0.355 | 54 | 18.8 | 1.3 |
1 | 0.25 | 54 | 20.3 | 0.69 | |
0.95 | 0.355 | 53 | 19.5 | 1.35 | |
0.9 | 0.355 | 51 | 20.2 | 1.4 | |
20# | 0.85 | 0.315 | 53 | 21.8 | 1.19 |
0.85 | 0.224 | 53 | 23.7 | 0.65 | |
0.8 | 0.315 | 51 | 22.8 | 1.24 | |
0.8 | 0.2 | 64 | 25.4 | 0.56 | |
0.75 | 0.315 | 50 | 23.8 | 1.29 | |
0.75 | 0.28 | 53 | 24.7 | 1.06 | |
25# | 0.71 | 0.28 | 51 | 25.7 | 1.11 |
0.71 | 0.2 | 61 | 27.9 | 0.61 | |
0.67 | 0.28 | 50 | 26.7 | 1.15 | |
0.63 | 0.25 | 51 | 28.9 | 0.99 | |
0.63 | 0.2 | 58 | 30.8 | 0.68 | |
30# | 0.6 | 0.25 | 50 | 29.9 | 1.02 |
0.6 | 0.18 | 59 | 32.6 | 0.58 | |
0.56 | 0.224 | 51 | 32.4 | 0.89 | |
0.56 | 0.18 | 57 | 34.3 | 0.61 | |
0.53 | 0.224 | 49 | 33.7 | 0.93 | |
0.53 | 0.18 | 56 | 35.8 | 0.64 | |
35# | 0.5 | 0.224 | 48 | 35.1 | 0.98 |
0.5 | 0.16 | 57 | 38.5 | 0.54 | |
0.475 | 0.16 | 53 | 38.9 | 0.55 | |
0.45 | 0.18 | 51 | 40.3 | 0.72 | |
0.45 | 0.14 | 58 | 43.1 | 0.46 | |
40# | 0.425 | 0.16 | 53 | 43.4 | 0.61 |
0.425 | 0.14 | 57 | 45 | 0.49 | |
0.4 | 0.16 | 51 | 45.4 | 0.64 | |
0.4 | 0.14 | 56 | 47 | 0.51 | |
0.375 | 0.16 | 49 | 47.5 | 0.69 | |
0.375 | 0.125 | 56 | 50.8 | 0.44 | |
45# | 0.355 | 0.14 | 51 | 51.3 | 0.55 |
0.355 | 0.125 | 55 | 52.9 | 0.45 | |
0.315 | 0.14 | 49 | 55.8 | 0.6 | |
0.315 | 0.125 | 51 | 57.7 | 0.49 | |
50# | 0.3 | 0.14 | 46 | 57.7 | 0.62 |
0.3 | 0.112 | 53 | 61.6 | 0.42 | |
60# | 0.25 | 0.125 | 44 | 67.7 | 0.58 |
0.25 | 0.1 | 51 | 72.6 | 0.4 | |
0.236 | 0.125 | 43 | 70.4 | 0.61 | |
0.224 | 0.125 | 41 | 72.8 | 0.63 | |
0.224 | 0.09 | 51 | 80.9 | 0.36 | |
70# | 0.212 | 0.125 | 40 | 75.4 | 0.65 |
0.212 | 0.09 | 49 | 84.1 | 0.37 | |
0.2 | 0.125 | 39 | 78.2 | 0.68 | |
0.2 | 0.08 | 51 | 90.7 | 0.32 | |
0.19 | 0.125 | 36 | 80.6 | 0.69 | |
80# | 0.18 | 0.125 | 35 | 83.3 | 0.74 |
0.18 | 0.071 | 51 | 101 | 0.28 | |
0.17 | 0.112 | 36 | 90.1 | 0.62 | |
0.17 | 0.063 | 53 | 109 | 0.24 | |
0.16 | 0.112 | 35 | 93.4 | 0.64 | |
0.16 | 0.063 | 51 | 114 | 0.25 | |
100# | 0.15 | 0.1 | 38 | 102 | 0.56 |
0.15 | 0.063 | 50 | 119 | 0.26 | |
0.14 | 0.09 | 37 | 110 | 0.49 | |
0.14 | 0.063 | 48 | 125 | 0.27 | |
0.132 | 0.09 | 35 | 114 | 0.51 | |
120# | 0.125 | 0.09 | 34 | 118 | 0.53 |
0.118 | 0.05 | 36 | 128 | 0.18 | |
0.112 | 0.08 | 34 | 132 | 0.46 | |
0.112 | 0.063 | 41 | 145 | 0.32 | |
140# | 0.106 | 0.071 | 36 | 144 | 0.4 |
0.106 | 0.05 | 40 | 163 | 0.22 | |
0.1 | 0.071 | 34 | 149 | 0.41 | |
0.1 | 0.05 | 44 | 169 | 0.23 | |
0.095 | 0.063 | 36 | 161 | 0.35 | |
170# | 0.09 | 0.063 | 35 | 166 | 0.36 |
0.09 | 0.05 | 40 | 181 | 0.25 | |
0.085 | 0.056 | 36 | 180 | 0.31 | |
0.08 | 0.056 | 36 | 187 | 0.32 | |
0.08 | 0.04 | 44 | 212 | 0.19 | |
200# | 0.075 | 0.05 | 33 | 194 | 0.33 |
0.075 | 0.045 | 39 | 212 | 0.24 | |
0.071 | 0.056 | 31 | 200 | 0.34 | |
0.067 | 0.05 | 33 | 217 | 0.3 | |
230# | 0.063 | 0.045 | 34 | 235 | 0.26 |
0.063 | 0.04 | 37 | 247 | 0.22 | |
0.06 | 0.045 | 33 | 242 | 0.27 | |
0.056 | 0.04 | 34 | 265 | 0.23 | |
270# | 0.053 | 0.04 | 33 | 273 | 0.24 |
0.053 | 0.032 | 39 | 300 | 0.17 | |
0.05 | 0.036 | 34 | 295 | 0.21 | |
0.05 | 0.03 | 39 | 317 | 0.16 | |
0.048 | 0.032 | 36 | 318 | 0.18 | |
325# | 0.045 | 0.036 | 31 | 314 | 0.22 |
0.045 | 0.028 | 38 | 348 | 0.11 | |
0.04 | 0.03 | 32 | 363 | 0.18 | |
400# | 0.038 | 0.025 | 36 | 403 | 0.14 |
500# | 0.025 | 0.025 | 31 | 508 | 0.14 |
0.028 | 0.022 | ||||
600# | 0.02 | 0.02 | 635 | 0.13 |
Note: Screen material: H68, H80, QSn6.5-0.4, SUS304, SUS316, SUS316L, SUS304HP
According to user requirements to provide screen to add series size.
Detailed Images:

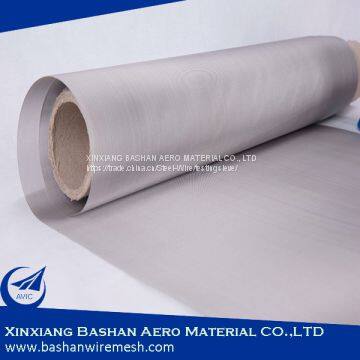

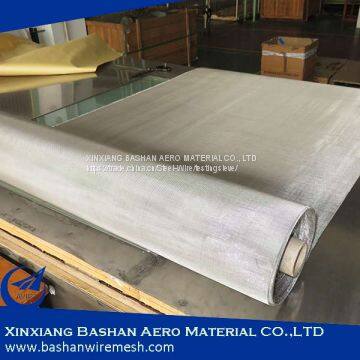

SUS304 SUS316 Series Stainless Steel Wire Mesh:
Other Products:
Brass wire mesh Nickel wire mesh
Our Company:
Xinxiang Bashan Aero Material Co., Ltd.
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Our Certifications:
1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Packing & Delivery:
SUS304 SUS316 Series Stainless Steel Wire Mesh
Our most professional packaging Transport of large trucks to the seaport
