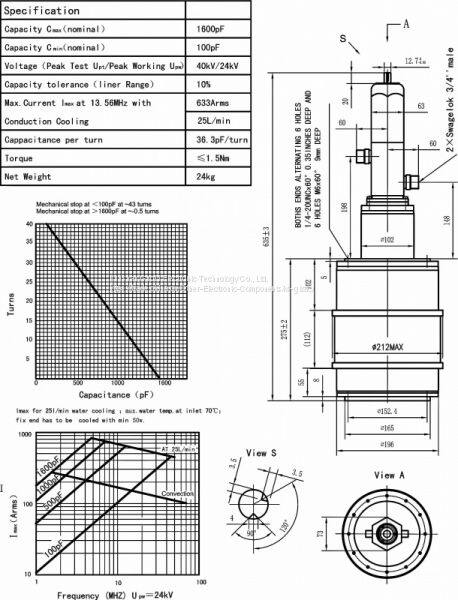

Variable Vacuum Capacitor CKTBS1600/28/790

vacuum capacitor CKTBS1600/28/790 Cross reference

comet old type: CV3W-1600E/40
comet new type: CVLA-1600BW/40-AAE-HN

The CKTBS1600/28/790 capacitor use vacuum as dielectric with ceramic envelope ,which have the following features:High voltage , Small size , High Q value, Stabilization capability , High reliability ,Low price.
The capacitor is Variable ceramic vacuum capacitors widely used in influence heating ,medium heating ,the equipments for communication transmitters and broadcasting etc
