Xinxiang Bashan Aero Material Co., Ltd: Xinxiang, Henan, China; Main products: stainless steel wire, wire thread insert, screen cloth mesh, EDM brass wire, Filtration Equipment, Components, testing sieve

Home > Products > wire mesh > Stainless Steel Wire Mesh With 30m Roll Length for Sieving

Stainless Steel Wire Mesh With 30m Roll Length for Sieving

Name: Stainless Steel Wire Mesh With 30m Roll Length for Sieving
Brand: bashan
Availability: InStock

FOB Price

US$ 4.0 - 40 / Square Meter

10 Square Meters(Min. Order)

Port tianjin,qingdao
Payment TermsT/T L/C PayPal Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	bashan	Place of Origin	China
Model Number	H65,H80	Material	Stainless Steel Wire
Type	Weave Wire Mesh	Application	Filters
Technique	Welded Mesh	Wire Diameter	0.02-2mm
Weave Style	Plain Weave

Product Description

Product Description

Key Specifications/Special Features:

Product Name: High Tensile Spring Steel Screen Wire Mesh

Material: stainless steel wire 304/316L

Color: stainless steel colour

Standard；JB/T5979-92、Q/9D193-1998、ISO4783/1--1990

Grade : As request

Used: Used for gas, liquid filtration and other media separation.

High Tensile Spring Steel Screen Wire Mesh

Our company produces military and civilian metal wire mesh products have more than 60 years of history, with the domestic advanced screen equipment, process equipment and high-precision detection means, wire mesh specifications complete, and a strict and reliable quality assurance system to ensure that the screen product quality The wire mesh is mainly used for solid particle sieving, fluid filtration and decoration, dustproof, skeleton support and so on.

The specifications of wire mesh:

Mesh NO.	(mm)Aperture size	(mm)Wire Dia	Screening area (%)	Mesh/inch	(Kg/m²)
5#	4	1	64	5.08	2.52
6#	3.35	0.8	65	6.12	2.15
6#	3.35	0.63	71	6.38	1.39
	3.15	0.8	64	6.43	2.26
	3.15	0.58	72	6.85	1.26
7#	2.8	0.71	51	7.24	2
7#	2.8	0.56	69	7.56	1.3
	2.5	0.62	64	8.12	1.71
	2.5	0.5	69	8.47	1.16
8#	2.36	0.56	65	8.7	1.5
8#	2.36	0.45	71	9.04	1
10#	2	0.5	64	10.2	1.69
10#	2	0.45	59	10.6	1.18
	1.9	0.6	58	10.2	2.01
	1.9	0.5	63	10.6	1.46
	1.8	0.45	64	11.3	1.26
12#	1.7	0.45	63	11.8	1.31
12#	1.7	0.4	66	12.1	1.06
	1.6	0.45	61	12.4	1.38
	1.6	0.4	64	12.7	1.12
	1.5	0.4	62	13.4	1.17
14#	1.4	0.4	60	14.1	1.24
	1.4	0.355	64	14.5	1
	1.32	0.4	59	14.8	1.3
	1.25	0.4	57	15.4	1.35
	1.25	0.315	54	16.2	0.88
16#	1.18	0.4	56	16.1	1.41
	1.18	0.315	52	17	0.92
	1.12	0.355	58	17.2	1.19
	1.12	0.28	54	16.1	0.69
	1.06	0.355	56	16	1.11
	1.06	0.28	53	19	0.81
18#	1	0.355	54	18.8	1.3
	1	0.25	54	20.3	0.69
	0.95	0.355	53	19.5	1.35
	0.9	0.355	51	20.2	1.4
20#	0.85	0.315	53	21.8	1.19
20#	0.85	0.224	53	23.7	0.65
	0.8	0.315	51	22.8	1.24
	0.8	0.2	64	25.4	0.56
	0.75	0.315	50	23.8	1.29
	0.75	0.28	53	24.7	1.06
25#	0.71	0.28	51	25.7	1.11
25#	0.71	0.2	61	27.9	0.61
	0.67	0.28	50	26.7	1.15
	0.63	0.25	51	28.9	0.99
	0.63	0.2	58	30.8	0.68
30#	0.6	0.25	50	29.9	1.02
30#	0.6	0.18	59	32.6	0.58
	0.56	0.224	51	32.4	0.89
	0.56	0.18	57	34.3	0.61
	0.53	0.224	49	33.7	0.93
	0.53	0.18	56	35.8	0.64
35#	0.5	0.224	48	35.1	0.98
35#	0.5	0.16	57	38.5	0.54
	0.475	0.16	53	38.9	0.55
	0.45	0.18	51	40.3	0.72
	0.45	0.14	58	43.1	0.46
40#	0.425	0.16	53	43.4	0.61
	0.425	0.14	57	45	0.49
	0.4	0.16	51	45.4	0.64
	0.4	0.14	56	47	0.51
	0.375	0.16	49	47.5	0.69
	0.375	0.125	56	50.8	0.44
45#	0.355	0.14	51	51.3	0.55
	0.355	0.125	55	52.9	0.45
	0.315	0.14	49	55.8	0.6
	0.315	0.125	51	57.7	0.49
50#	0.3	0.14	46	57.7	0.62
50#	0.3	0.112	53	61.6	0.42
60#	0.25	0.125	44	67.7	0.58
60#	0.25	0.1	51	72.6	0.4
	0.236	0.125	43	70.4	0.61
	0.224	0.125	41	72.8	0.63
	0.224	0.09	51	80.9	0.36
70#	0.212	0.125	40	75.4	0.65
	0.212	0.09	49	84.1	0.37
	0.2	0.125	39	78.2	0.68
	0.2	0.08	51	90.7	0.32
	0.19	0.125	36	80.6	0.69
80#	0.18	0.125	35	83.3	0.74
80#	0.18	0.071	51	101	0.28
	0.17	0.112	36	90.1	0.62
	0.17	0.063	53	109	0.24
	0.16	0.112	35	93.4	0.64
	0.16	0.063	51	114	0.25
100#	0.15	0.1	38	102	0.56
100#	0.15	0.063	50	119	0.26
	0.14	0.09	37	110	0.49
	0.14	0.063	48	125	0.27
	0.132	0.09	35	114	0.51
120#	0.125	0.09	34	118	0.53
	0.118	0.05	36	128	0.18
	0.112	0.08	34	132	0.46
	0.112	0.063	41	145	0.32
140#	0.106	0.071	36	144	0.4
140#	0.106	0.05	40	163	0.22
	0.1	0.071	34	149	0.41
	0.1	0.05	44	169	0.23
	0.095	0.063	36	161	0.35
170#	0.09	0.063	35	166	0.36
170#	0.09	0.05	40	181	0.25
	0.085	0.056	36	180	0.31
	0.08	0.056	36	187	0.32
	0.08	0.04	44	212	0.19
200#	0.075	0.05	33	194	0.33
200#	0.075	0.045	39	212	0.24
	0.071	0.056	31	200	0.34
	0.067	0.05	33	217	0.3
230#	0.063	0.045	34	235	0.26
230#	0.063	0.04	37	247	0.22
	0.06	0.045	33	242	0.27
	0.056	0.04	34	265	0.23
270#	0.053	0.04	33	273	0.24
270#	0.053	0.032	39	300	0.17
	0.05	0.036	34	295	0.21
	0.05	0.03	39	317	0.16
	0.048	0.032	36	318	0.18
325#	0.045	0.036	31	314	0.22
325#	0.045	0.028	38	348	0.11
	0.04	0.03	32	363	0.18
400#	0.038	0.025	36	403	0.14
500#	0.025	0.025	31	508	0.14
500#	0.028	0.022	31	508	0.14
600#	0.02	0.02		635	0.13

Note: Screen material: H68, H80, QSn6.5-0.4, SUS304, SUS316, SUS316L, SUS304HP
According to user requirements to provide screen to add series size.

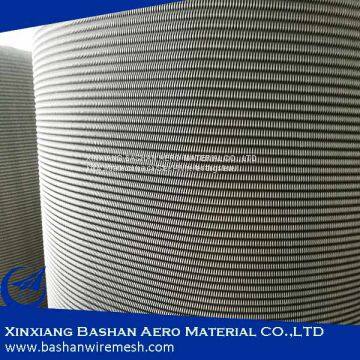

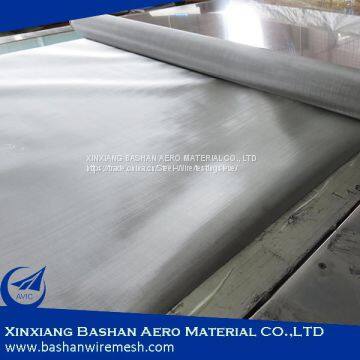

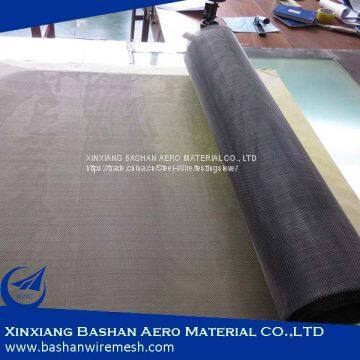

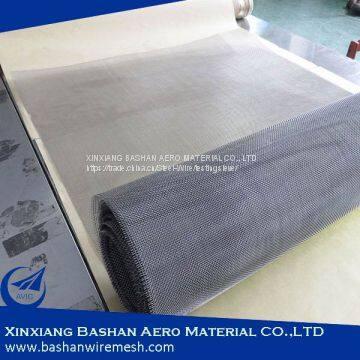

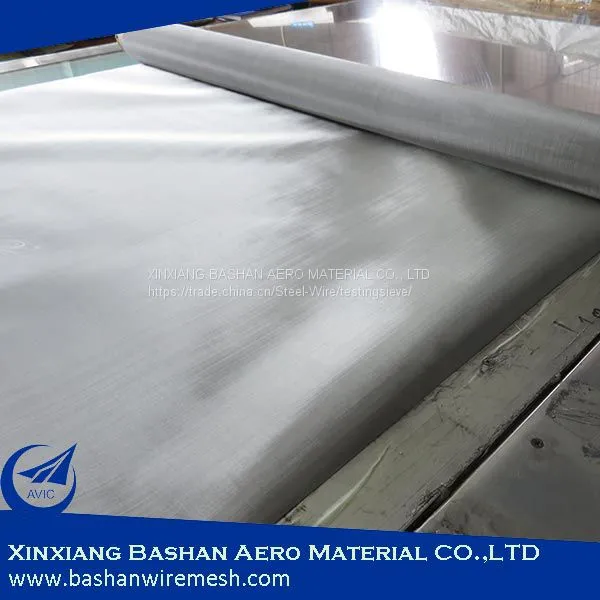

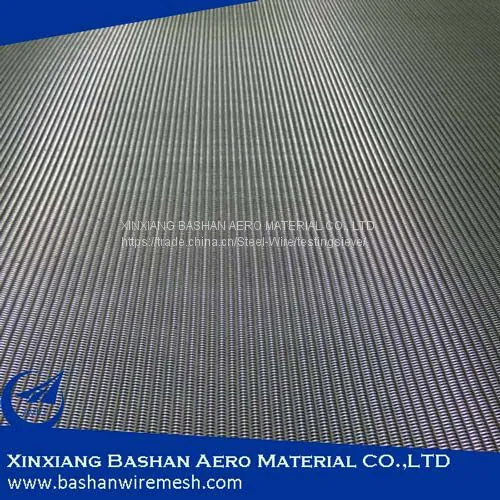

Detailed Images:

SUS304 SUS316 Series Stainless Steel Wire Mesh:

Other Products:

Brass wire mesh Nickel wire mesh

Our Company:

Xinxiang Bashan Aero Material Co., Ltd.

In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Our Certifications:

1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93

Packing & Delivery:

SUS304 SUS316 Series Stainless Steel Wire Mesh

Our most professional packaging Transport of large trucks to the seaport
