Home > Products > ABC strain Clamps > Wanxie NXJG-1Q Airal Insulation Strain Clamp Wedge-type Resistant Clip

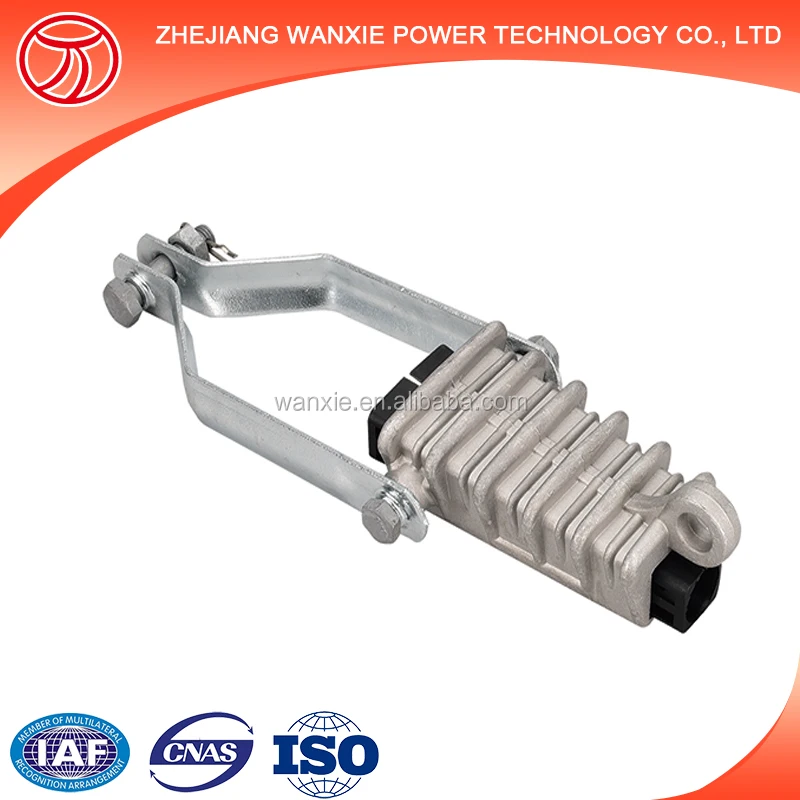

Wanxie NXJG-1Q Airal Insulation Strain Clamp Wedge-type Resistant Clip
US$ 1 - 20
/ Piece
1000 Pieces(Min. Order)
- Ningbo/Shanghai
- T/T L/C Credit Card PayPal Other Cash
- 10 days
You May Like
-
Wanxie NXJG-2Q Wedge Type Insulation Strain Clamp for 10KV JKLYJ Wire
-
Wanxie NXJG-3Q Wedge Insulation Strain Clamp Tension Clamp Dead End Clamp
-
Wanxie NXJG-4Q Wedge Strain Clamp Overhead Insulation Wire Clamp
-
Wanxie NXJG-4C Wedge Strain Clamp Insulation Tension Clamp
-
Insulation Wedge Type Strain Clamp for ACSR
-
NXJG-2C Strain Clamp Dead End Clamp Tension Clamp for ACSR Wire Fitting
Product Details
| Brand Name | Wanxie | Place of Origin | China | |
| Model Number | NXJG-1Q | Material | Aluminium | |
| Usage | Heavy Duty | Standard or Nonstandard | Nonstandard | |
| Structure | Suspension Clamp |
Product Description
Packaging & Delivery
| Packaging Details | Carton, Standard export packing or According to customer's requirement |
|---|---|
| Delivery Time | Shipped in 5 days after payment |
Product Description
Application
NXJ Series is suitable for strain clamp insulation string of 10kV aerial insulation aluminium core wire JKLYJ terminal or two ends fixing and tighten aerial insulation.
Structure feature
1,The shell made of anti-oxidate high strength aluminum alloy.
2,The core of wedge made of insulating reinforce plastics, withstand voltage : ≥18kV not breakdown one min.
3,Not remove the insulation layer,AI-core wire are current use.
4,Without waste power
5,Wedge structure
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
