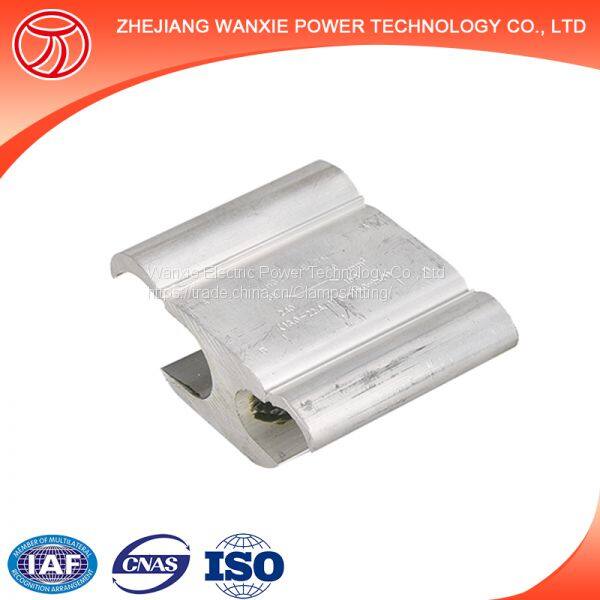

Help CenterWanxie LH31 Variety Connection Wire Clamp Parallel Groove Clamp Aerial Wire Clip
Related Products
-
Wanxie LH32 H Type Aluminium Connectors Parallel Groove ClampsUS$ 1 - 20MOQ: 1000 Pieces -
Wanxie LH41 H Type Wire Connector Energy Saving Wire Clamp Aluminium Cable ClampUS$ 1 - 20MOQ: 1000 Pieces
-
Wanxie LH52 H Type Aluminium Alloy Clamp Aluminium Cable Parallel Groove ClampsUS$ 1 - 20MOQ: 1000 Pieces
-
Wanxie LH53 Parallel Groove Clamp H-Type Aluminium Wire ClipUS$ 1 - 20MOQ: 1000 Pieces
-
H ConnectorUS$ 1 - 20MOQ: 1000 Pieces
Performance Feature
1. Small resistance, saving energy, safe and reliable operation
2. With special tools for installation, to ensure the quality of the installation
3. suitable for a variety of wires connection
Application
LH series specific forms parallel groove clamp is suitable for unendure force splicaing and branch on the aerial wire, beinig used with insulation cover, it's action is insulation protection.

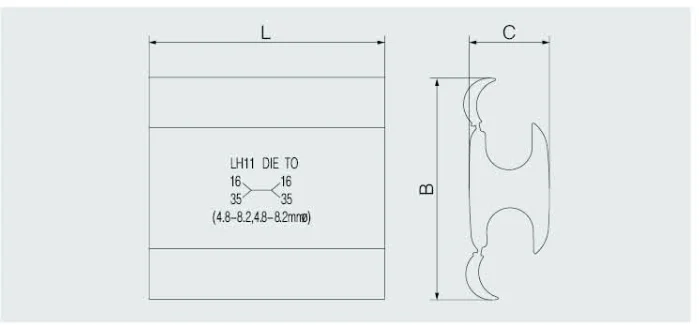

Specification
Catalog No. | Specification | Crimp | Type of insulation silicone rubber | |||||
A core hitch | B core hitch | Moulding-die | Number of times | Length(mm+1) | ||||
outside diameter(mm) | Dia(mm2) | outside diameter(mm) | Dia(mm2) | |||||
LH11 | 4.8-8.2 | 16-35 | 4.8-8.2 | 16-35 | 0-0 | 2 | 44 | LHZ-1 |
LH21 | 8.3-14.0 | 50-95 | 4.8-9.6 | 16-50 | 1-2 | 3 | 63 | LHZ-2 |
LH22 | 10.0-14.0 | 50-95 | 10.0-14.0 | 50-95 | 1-2 | 3 | 63 | LHZ-2 |
LH31 | 13.0-22.4 | 95-240 | 4.8-11.4 | 16-70 | 3-5 | 3 | 63 | LHZ-2 |
LH32 | 13.0-22.4 | 95-240 | 11.6-16.0 | 70-150 | 3-5 | 3 | 63 | LHZ-2 |
LH41 | 16.2-22.4 | 150-240 | 16.2-22.4 | 150-240 | 3-5 | 4 | 114 | LHZ-3 |
LH51 | 22.4-25.9 | 300-400 | 10.0-14.5 | 70-120 | 3-5 | 3 | 89 | LHZ-3 |
LH52 | 22.4-25.9 | 300-400 | 14.6-18.0 | 120-185 | 3-5 | 3 | 89 | LHZ-3 |
LH53 | 22.4-25.9 | 300-400 | 18.9-22.4 | 185-240 | 3-5 | 4 | 118 | LHZ-3 |
LH54 | 22.4-25.9 | 300-400 | 22.4-25.9 | 300-400 | 3-5 | 4 | 118 | LHZ-3 |

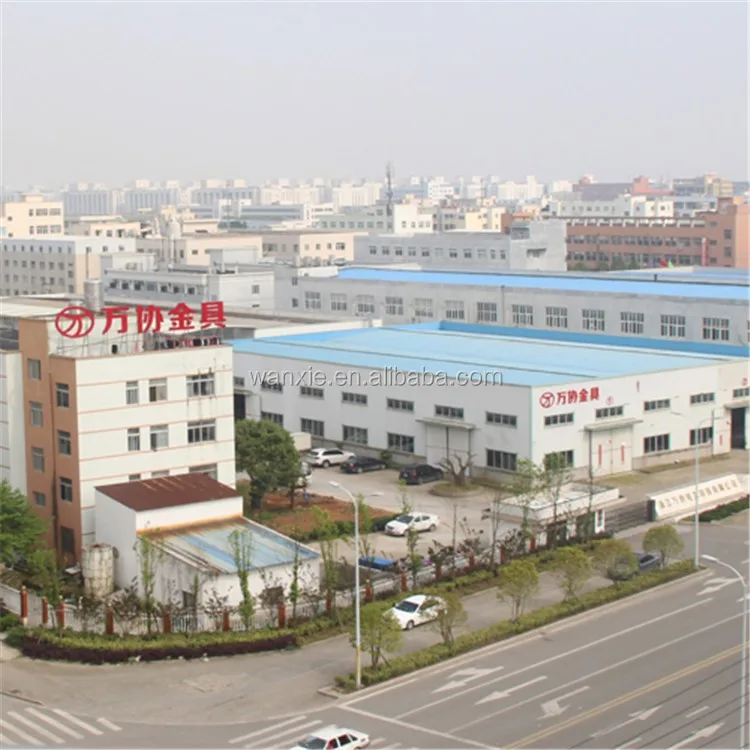

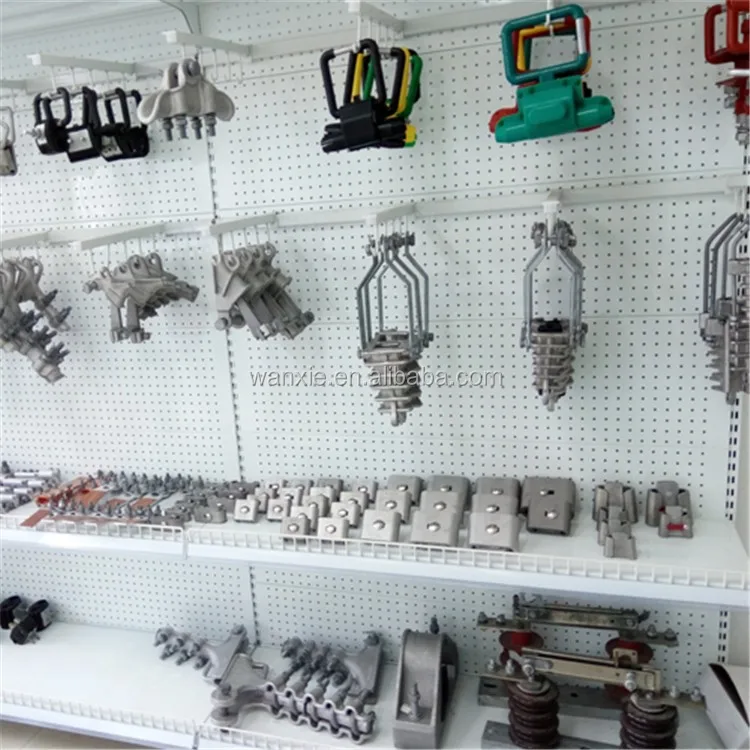

Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
