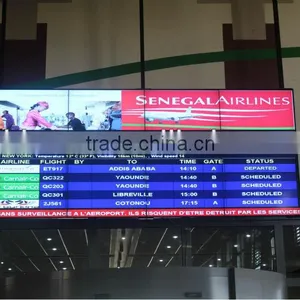

55 inch high light panel lcd video wall,lcd splicing wall

Specifications

55" lcd video wall
+indoor use
+full HD 1080p
+wide screen
+CE GOT

55 inch high light panel lcd video wall,lcd splicing wall  (Full HD 1920x 1080, optimal A+LCD panel)

Product NO.:   HQ550-V)

















55'' DID Samsung Full highly defination LCD video wall







Features:



Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.



Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV



One Screen,Four Image,Image Roaming,M*N*4 dispaly



HD video wall unit--- High brightness,high contrast,High gamut .



Flexible structure design ---easy installation ,extensible,arbitrary combination



Stable performance,suitable working for a long time







Specifications
Model No.					hq550-v
Panel Size					55" LG DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight)
Display area					1210(W)*680.8(H)(mm)
Aspect Ratio					16:9
Max Resolution Support					1920x1080
Color					8Bit,16.7M
Brightness (nits)					700cd/m2
Contrast					4000:1
Visual Angle (H/V)					178°
Response Time					<=6ms
Life(hrs)					>60,000(hrs)
Input and output
DVI					1
HDMI					1
VGA					1
YPbPr					1(BNCx3)
S-video					1(BNCx2)
Composite Video Input/(AV)					3(BNCx3)
Composite Video Output					2(BNCx2)
Control signal input and loop out					RS232(RJ45-8)
Split Screen					Support Picture in Picture(PIP/POP)
Power
Power Supply					AC100V~240V
Maximum Power Consumption					250W
Standby Power Consumption					<=3W
Temperature
Working Temperature					0°C~50°C
Working Humidity					20%-80%
Dimension					1215.3mm × 686.1mmx116.2mm
Video Wall Controller(Built-in each Screen)
Model No.	HQ550-V
Input	CVBS	1*BNC port, support PAL / NTSC all formats
	VGA	1*D15 port, support SVGA / XGA / WUXGA
	DVI	1*DVI-I port,support SVGA / XGA / WUXGA
	HDMI	5*BNC ports, support SVGA / XGA / WUXGA
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port,support SVGA / XGA / WUXGA
Operate mode	Panel key operation(need customization)
	Standard RS232 port( provide free control software)
	ADD Code
Engineering software	XK _LCD_CONTROL_Manager, RS232 interface control (1 input, 2 looping out)
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	307×283×55(mm)
Weight	About 3.5KG



We provide servise:



1. Customized requirment is available , OEM&ODM are welcome.



2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .



3. Warranty: one year overall unit ( Non-artificial damage )



Trade terms:



1.Price: Price coveres cost of controller &software,based on EXW SHENZHEN



2.Lead time:within 5-15working days after payment.



3.Payment terms:T/T,Western union,L/C.
