46 Inch Seamless tv Wall

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Chimee
Model Number	HQ460-V	Type	TFT
Application	Indoor	Panel Size	46 inch
Max Resolution	1920 * 1080	Viewing Angle	178 /178
Pixel Pitch	0.53025 x 0.53025	Color	16.7M
Contrast Ratio	1400:1	Brightness	500cd/m2
Response Time	5ms	Input Voltage	AC110V-240V, 50~60Hz

Product Description

product name: 46 inch seamless tv wall

narrow bezel 3.5mm(500cd/m2 or 700cd/m2)or 5mm(500cd/m2 or 700cd/m2)

Model NO HQ460-V

Panel size 46'' Samsung DID LCD Screen (narrow bezel 3.5mm&5mm)

Aspect Ratio 16:9

Max Resolution Support 1920*1080

Color 8Bit,16.7M

Brightness (nits) 500cd/m2 or 700cd/m2

Contrast 4000:1

viewing angle(HxV) 178°

Response Time 5ms

panle life >50,000hours

Panel Brand Samsung or LG LCD Screen

Active Area 1018.08(H) x 572.67(V)

backlight LED

HDMI Input 1

VGA Input 1

DVI Input 1

Composite Video Input/Output(AV) BNCx2

Control Signal input and loop out RS232(RJ45-8)

Split Screen Support Picture in Picture

Hardware solutions

Can be customized

Built-in pc solution
Solutions	1037U	i3	i5	i7
CPU	Intel Celeron 1037U	4th Gen Intel Core i3	4th Gen Intel Core i5	4th Gen Intel Core i7
Chipset	NM70	H81	H81	H81
RAM	DDR3/1600/4G	DDR3/1600/4G	DDR3/1600/4G	DDR3/1600/8G
Hard disk	128GSSD or 500G HDD
Graphics	Intel HD Audio	Integrated with CPU	Integrated with CPU	Integrated with CPU
Audio	RTL 662 HD Audio
Network	RTL 8111 Giga Ethernet controller
WIFI	150M 802.11A/B/G/N
Speaker	2 build-in high quality stereo speakers(3W or 5W)
Supported OS	Windows7/8/8/1/Lastest stable version of fedora or Ubuntu

Input

CVBS

3*BNC inputs, support

PAL/NTSC, 2*BNC loop outputs

VGA

1* D15 port, support SVGA/XGA/WXGA

YPbPr

1* YPbPr Input, Support PAL/NTSC

Y/C

2* BNC inputs, support PAL/NTSC

Output

LVDS

Support single or double LVDS output,

and WUXGA(1920*1080)

Operate Mode

Panel key operation (Need customization)

Infrared Remote Control Operation

Standard RS232 port (provide free control

software)

Engineering Software

Customized

Temperature

-20°C ~ 50°C

Humidity

5% ~ 95%

Power Supply

AC 110V ~ 240V, 50/60Hz

Power Consumption

Max 300W, according to different screen models

Processor Size

307×282×53.8 (mm)

Weight

19Kg to 45Kg

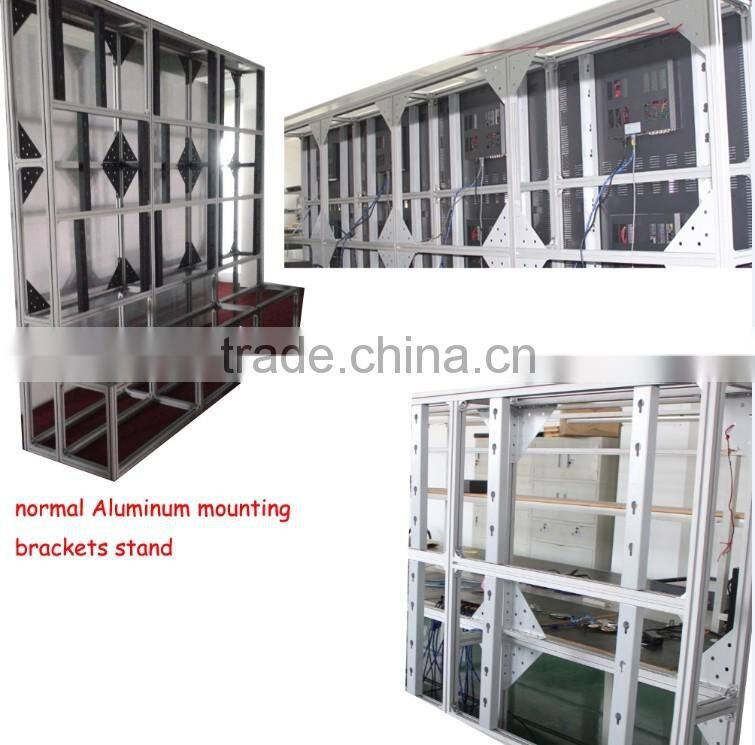

2kinds of mounting brackets

one:

Two
