Shenzhen Chimee Technology Co., Ltd.: Shenzhen, Guangdong, China; Main products: LCD & LED related products for digital signage advertising player, all in one computer, monitor, touch all in one computer, kiosk, touch monitor, touch table only for export

Home > Products > Touch Screen&Intractive Kiosk > 55inch i3 CPU Full HD Gaming PC Touch All in One Computer Table

55inch i3 CPU Full HD Gaming PC Touch All in One Computer Table

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port shenzhen
Payment TermsMoney Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock, Used	Type	All-In-One
Screen Size	Other, 55"	Processor Brand	Intel
Memory Capacity	Other, ≥ 4GB	Hard Drive Capacity	320GB
Graphics Card Type	Integrated Card	Display Type	LCD
Widescreen	Yes	Optical Drive Type	Other, up to customer's option
Processor Main Frequency	1.6GHZ OR 2.8GHZ	Brand Name	CHIMEE
Model Number	HQ55CSK-2	Place of Origin	Guangdong, China

Product Description

Product Name: 55inch i3 CPU Full HD Gaming PC touch all in one computer table

Product No:HQ55CSK-2

Product Description

Screen Specification

Panel Size(Diagonal)	54.64 inch
Display Area(HxV)	1209.6mm x 680.4mm
Outline Dimension(HxV)	1286.0mm x 745.0mm
Display Colors	16.7M
Resolution	1920 x 1080
Pixel Pitch	0.630 x 0.630
Contrast Ratio	1000:1
Brightness(cd/m2)	700
Responsive Time	<5.5ms
Viewing Angle(H/V)	178°/178°
Life Time(minimum)	50,000 hours

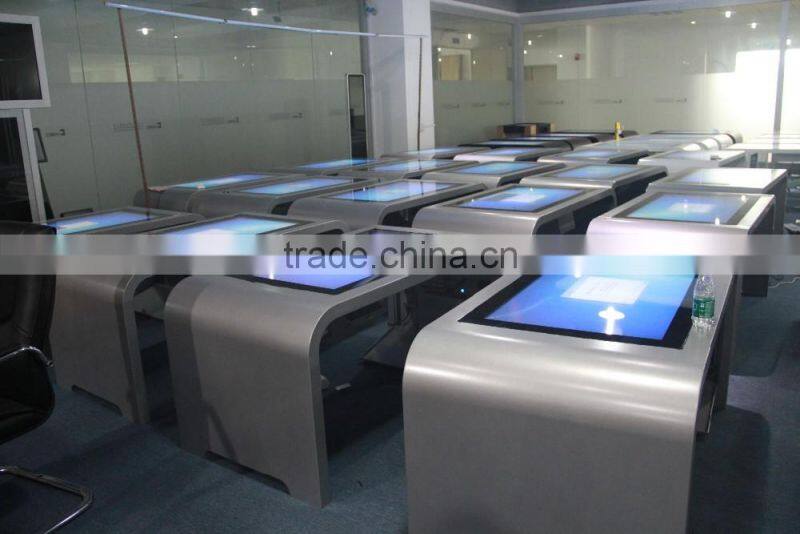

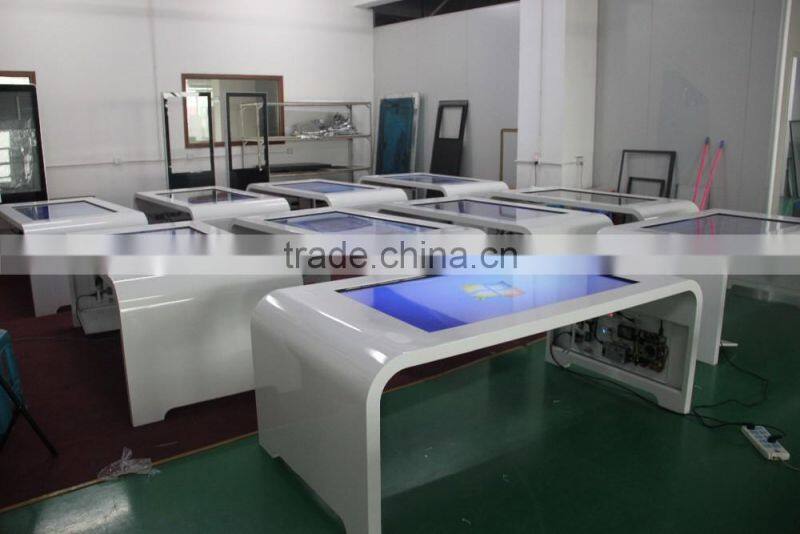

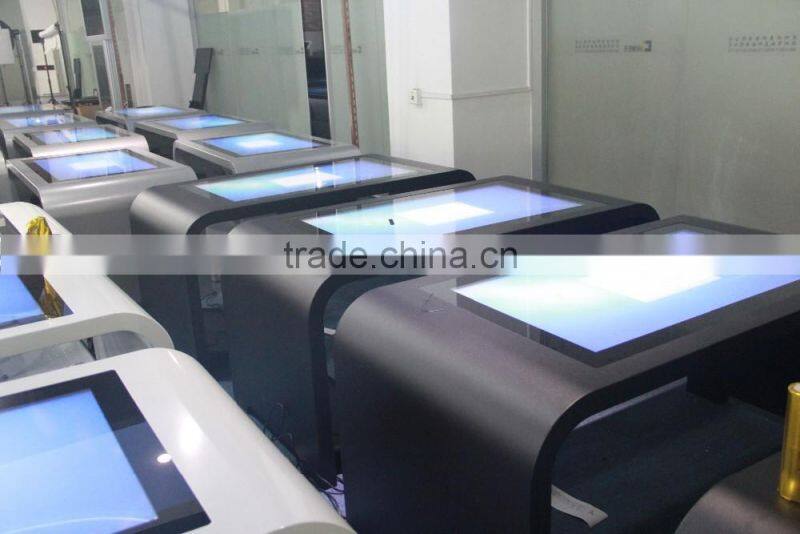

Product Picture

Product features:

1. Out enclosure is made by high class metal and painted

by environment protecting material.Outer enclosure color

can be customized.

2. Adopt high transparent tempered glass with

2mm--8mm thickness, protecting the LCD screen been

damaged or scraped.

3. Can be fixed on the wall by VESA holes and wall

mounting brackets or on the groud by screws to

protect the player being pushed down by people.

4. With Capacitive Touch Screen, IR Multi Touch Screen.

5. Can be added with A4 Printer or Thermal Printer.

Hardware solutions

Can be customized

Built-in pc solution
Solutions	1037U	i3	i5	i7
CPU	Intel Celeron 1037U	4th Gen Intel Core i3	4th Gen Intel Core i5	4th Gen Intel Core i7
Chipset	NM70	H81	H81	H81
RAM	DDR3/1600/4G	DDR3/1600/4G	DDR3/1600/4G	DDR3/1600/8G
Hard disk	128GSSD or 500G HDD
Graphics	Intel HD Audio	Integrated with CPU	Integrated with CPU	Integrated with CPU
Audio	RTL 662 HD Audio
Network	RTL 8111 Giga Ethernet controller
WIFI	150M 802.11A/B/G/N
Speaker	2 build-in high quality stereo speakers(3W or 5W)
Supported OS	Windows7/8/8/1/Latest stable version of fedora or Ubuntu

Touch monitor

Can be customized

IR TOUCH SCREEN SPECIFICATIONS
Detectable Touch Points	True Multi-Touch(Detects over 32 touch points simultaneously)
	Ultimate	50+Touch Points
	Plus	32+Touch Points
	Standard	12 Touch Points
	Basic	6 Touch Points
	Dual	2 Touch Points
Glass	3mm/4mm Mighty Glass
Sample Rate	Up to 250fps(depends on frame size)
Finger Touch Accuracy	2.7mm
Touch Activation Force	No pressure required
Power Supply	USB Powered
Data Interface	USB 2.0(Full speed),compatible with USB 3.0/USB 1.1 PORT
Operating System	Windows7/8/vista/xp,Mac OS X,Ubuntu/ Fedora Android (need to be customized)
Touch Durability	Unlimited
Waterproof	Anti-Spill, customizable to IP66
Programming Interface	Windows Native Touch/TUIO/SDK

-----------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------

PROJECTED CAPACITIVE TOUCH PANEL
ITMES	SPECIFICATIONS	NOTE
Touch Point	10points (under 42inch) 60points(>=55inch)
Structures	Glass/Glass
Total Thickness	2.7±0.15mm (Cover_1.8mm & Sensor_0.7mm)
Operation Conditions	-20℃~+70℃ at Min 45% to Max 85% RH
Input Method	Finger or Cap.Stylus
Resolution	25ppi(Min)	Based on WIN7 definition ppi (Pixel per inch)
Accuracy	Within 2.5mm each target & 10% Jitter limit on moving	Based on WIN7 definition ppi (Pixel per inch)
Transparency	85±5%	By BYK-ardner at 550nm
Haze	3%(Maximum)	By BYK-ardner at 550nm
Size	13.3inch to 84inch
