Home > Products > Peeling Lathe > Veneer Peeling Lathe
Veneer Peeling Lathe
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Veneer peeling lathe | |
| Place of Origin | Jiangxi, China | Brand Name | XINGDA | |
| Model Number | BQ1215 | Voltage | 380V or else | |
| Power(W) | 5500 | Dimension(L*W*H) | 7000(L)*1900(W)*2500(H)mm | |
| Weight | 12ton | Certification | Patent | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

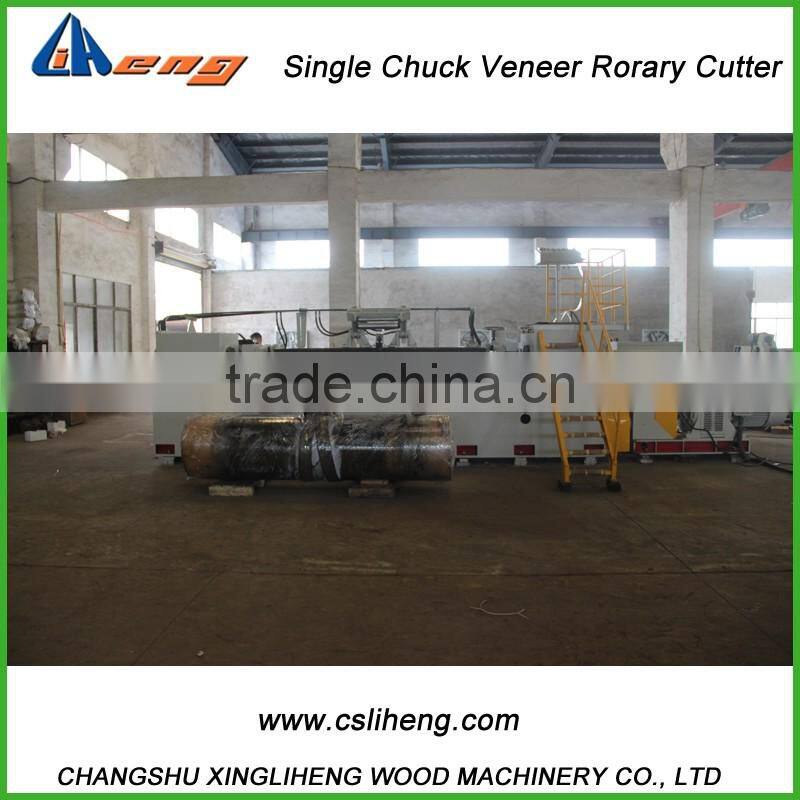

BQ1215 Single Chuck Veneer Peeling Lathe
Usage:
It is one of the main machines in plywood production. Usually used to peel the wooden log.
Characteristics:
1. This veneer peeling lathe dopts servo motors.
2. Hydraulic system has been used to drive the chuck.
3. It is much safer and better in maneuverability by the control buttons on electric cabinet.
4. Customized machines are available according to different clients from different countries.
Technical parameters:
Model | BQ1215 | ||
Max. Peeling Length (mm) | 1400mm | ||
Max. Peeling Diameter (mm) | 800mm | ||
Final Wooden Core Dia. (mm) | 100mm | ||
Veneer Thickness (mm) | 0.5~3mm | ||
Rotating Speed of Shaft (rpm) | 0~240 | ||
Power (kw) | 55 | ||
Dimensions (L*W*H) mm | 7000(L)*1900(W)*2500(H) | ||
Net Weight (kg) | 12000kg |

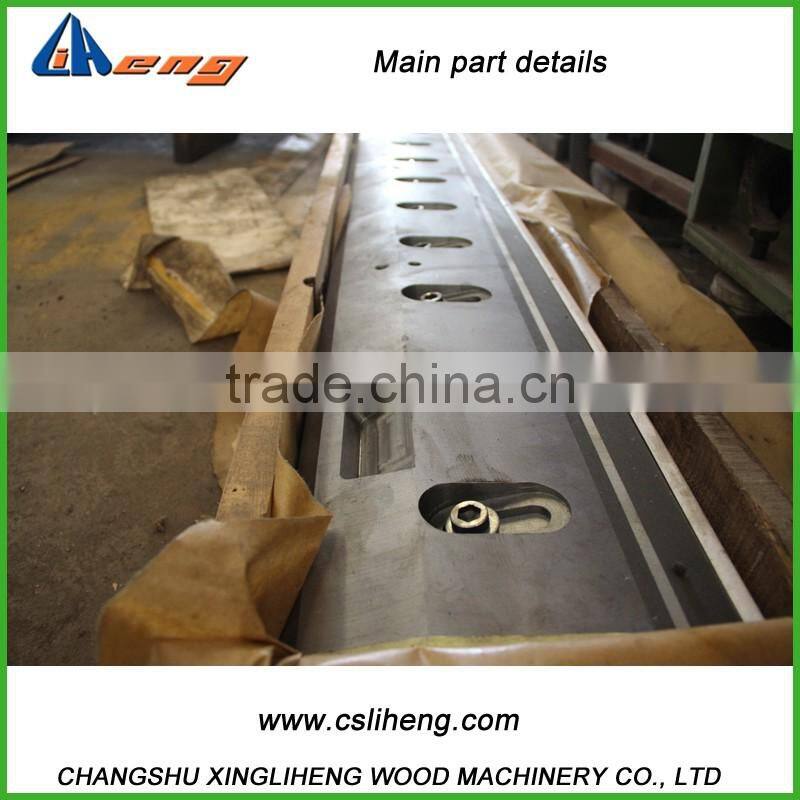

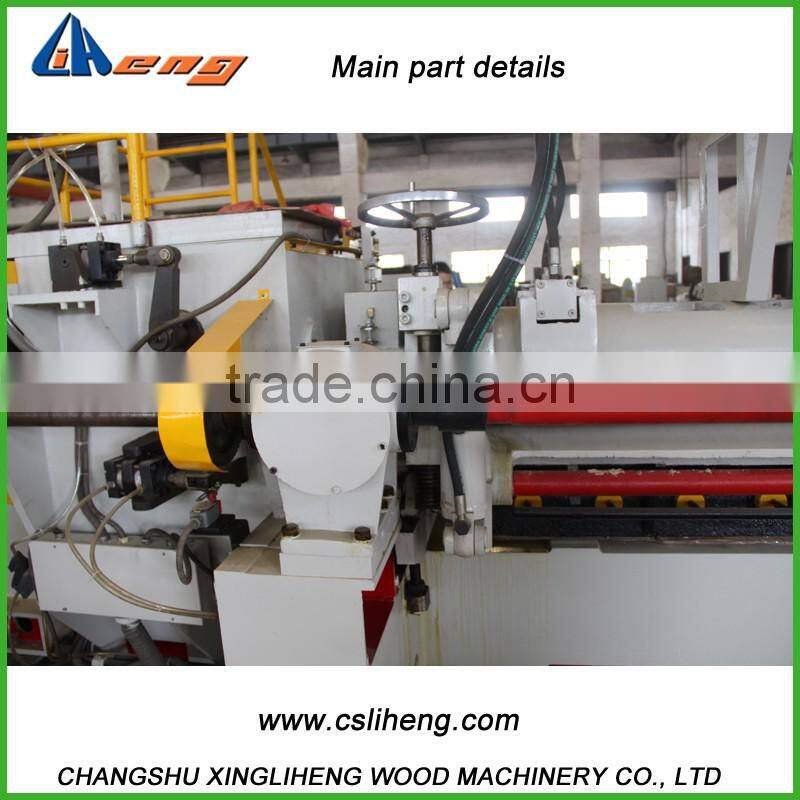

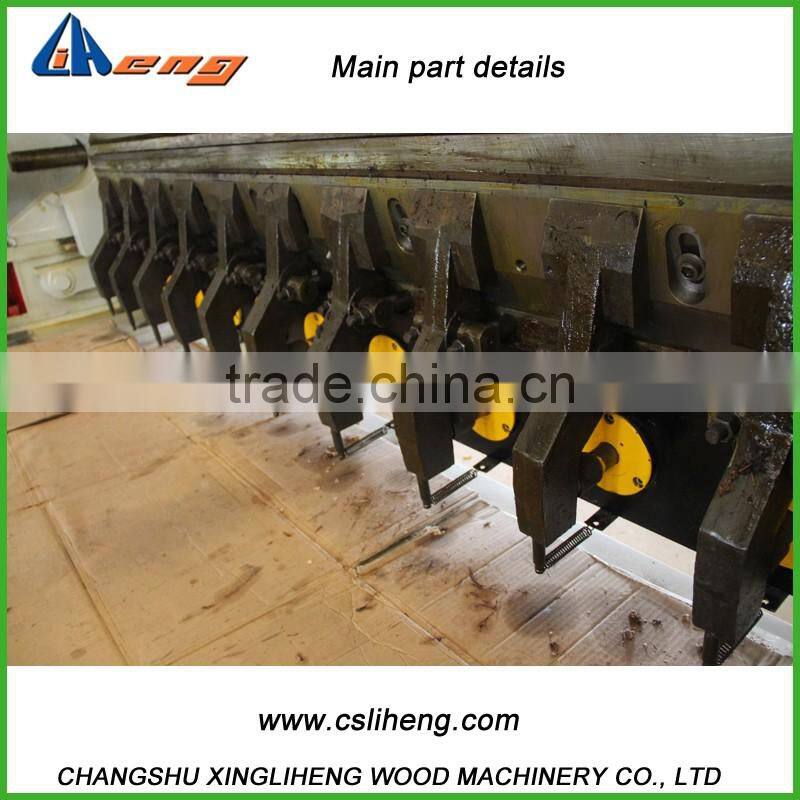

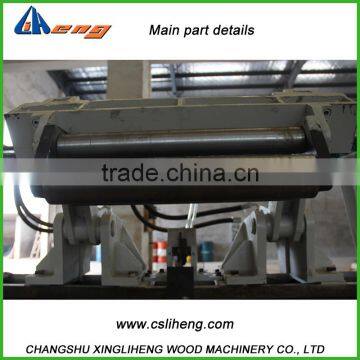

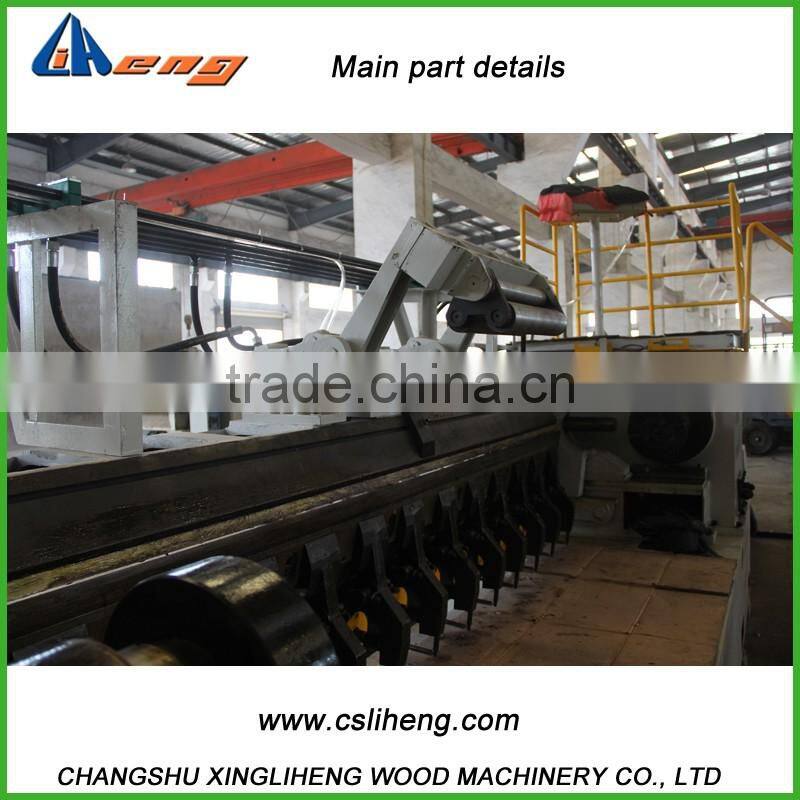

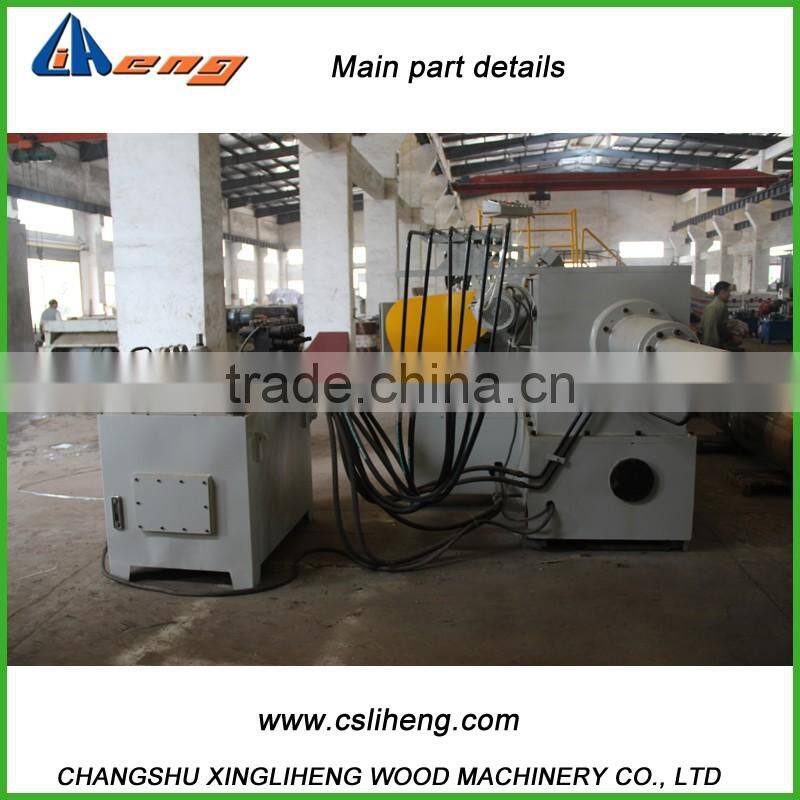

Veneer Peeling Lathe pictures
Lead time: 55 days
Loading port: Shanghai
Packing: Unpacked/wooden case for electric cabinet
Packing type: SKD (semi-knock down)
We have been in this industry for more than 20 years. Rich experiences in manufacturer , ability to export, insalltion, after sales services. This veneer peeling lathe in of top quality in China which can provide you high quality veneer with stable and accurate sizes. Reliable and stable in work makes this veneer peeling lathe be worthy of your investment.
Contant details:
Contact Us
- Changshu Xingliheng Wood Machinery Co., Ltd.
- Contact nameTony Tau Chat Now
- AddressYunan Village, Haiyu Town, Suzhou, Jiangsu
