BXQS1810N CNC Spindless Veneer Peeling Machine
Usage:
It is one of the main machines in plywood production. Usually used to peel the small diameter wooden logs.
Characteristics:
1. This veneer peeling machine is of top quality in China, stable and accurate.
2. CNC type which is easy to operate, high efficiency, improve the utilization of wood logs.
3. It is much safer and better in maneuverability by the control buttons on electric control panel.
4. Customized machines are available according to different clients from different countries.
Technical parameters:
Model | BXQS1810N | ||
Max. Peeling Length (mm) | 1050mm | ||
Max. Peeling Diameter (mm) | 350mm | ||
Final Wooden Core Dia. (mm) | 30mm | ||
Veneer Thickness (mm) | 0.5~3mm | ||
Rotating Speed of Shaft (rpm) | 35~65 | ||
Power (kw) | 16.5 | ||
Dimensions (L*W*H) mm | 2400(L)*1600(W)*1050(H) | ||
Net Weight (kg) | 3000kg |

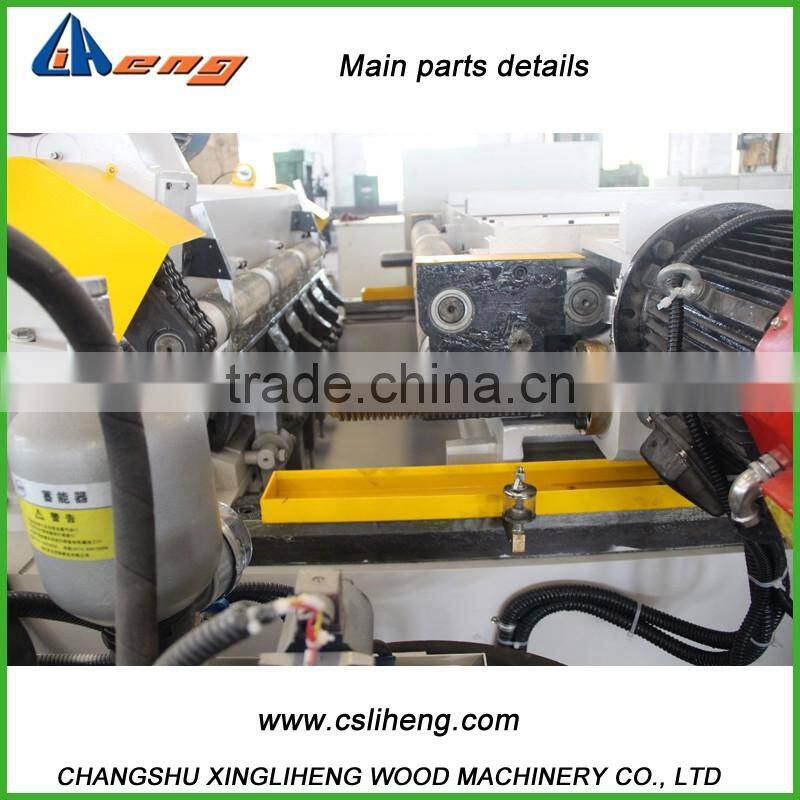

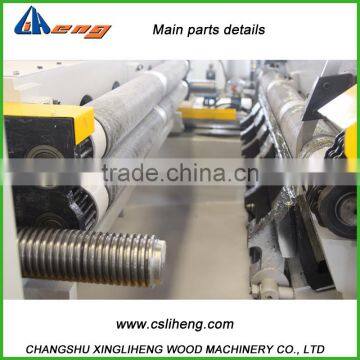

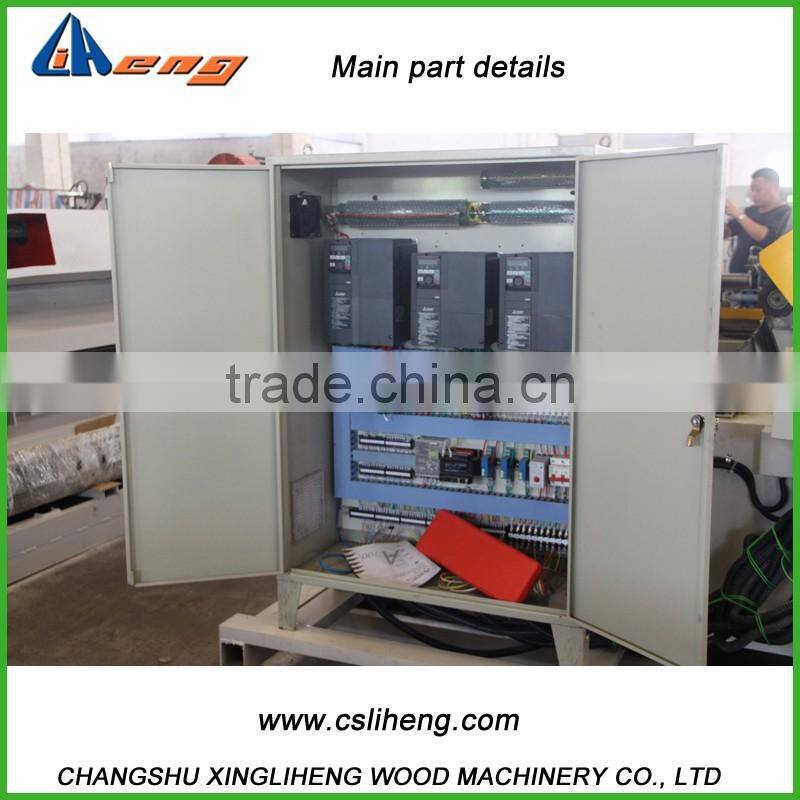

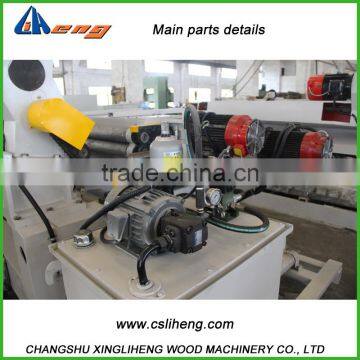

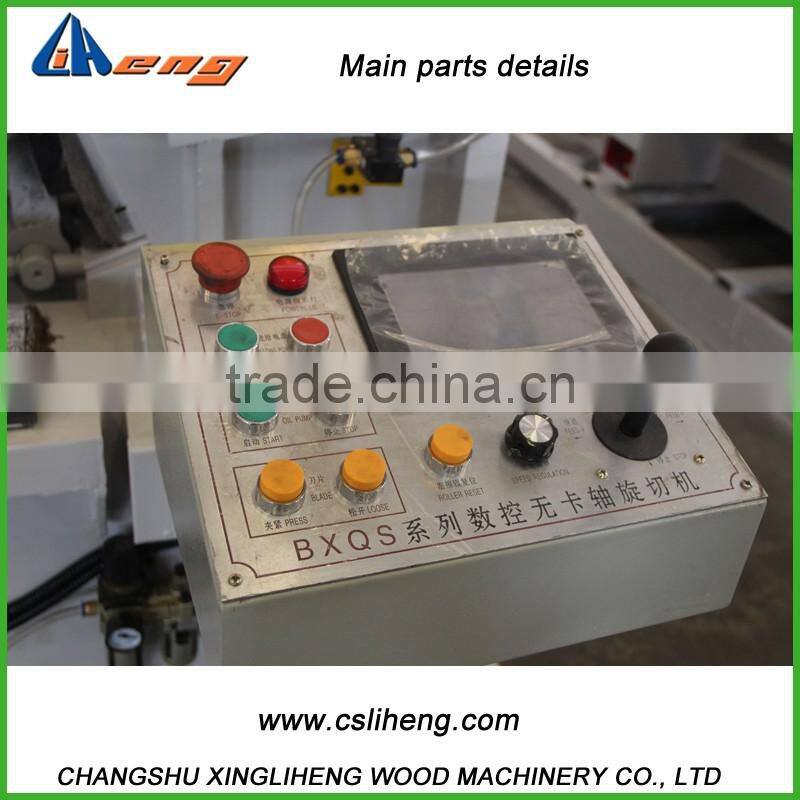

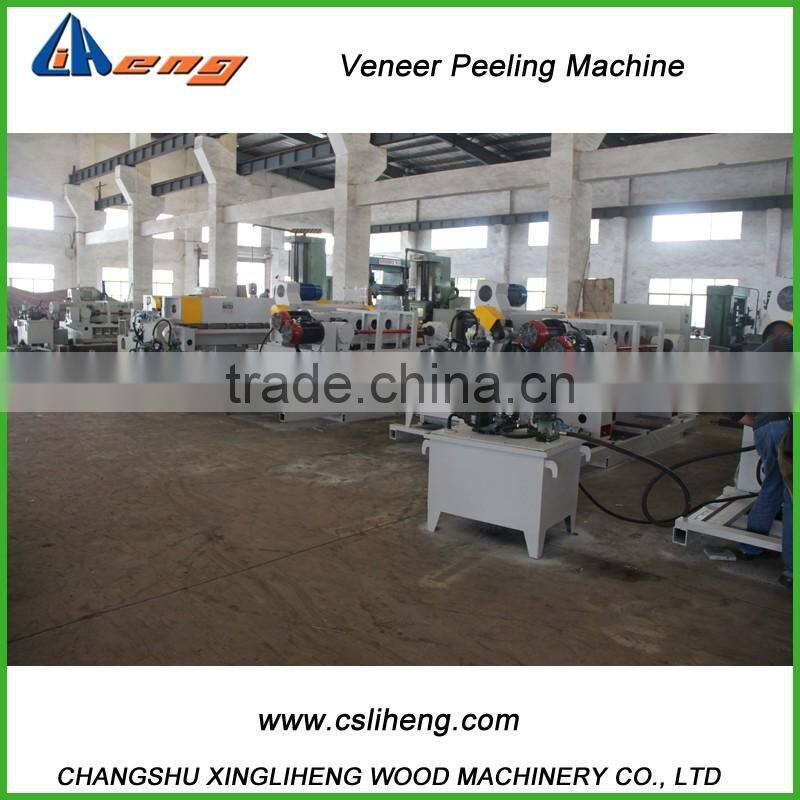

CNC Spindless Veneer Peeling Machine pictures
Lead time: 40 days
Loading port: Shanghai
Packing: Unpacked/wooden case for electric cabinet
Packing type: SKD (semi-knock down)
We have been in this industry for more than 20 years. Rich experiences in manufacturer , ability to export, insalltion, after sales services. This veneer peeling machine in of top quality in China which can provide you high quality veneer with stable and accurate sizes. Reliable and stable in work makes this veneer peeling machine be worthy of your investment.
