JYSD3600 Edge Cutting Machine for Veneer Packs

JYSD-3600 Edge Cutting Machine for Veneer Packs

Usage:

This edge cutting machine is specially designed to cut edges of sliced veneer packs before veneer splicer. It enjoys the advantage of high efficient by double knife cutting.

Characteristics:

1. This edge cutting machine is built with two straight knives which is more easier to operate and more efficient.

2. The knife holder and press beam has been specially treated to make them durable without shape changes.

3. Our rich expierences and professional team will provide full plan to you according to your specific needs on the edge cutting machine.

4. The transmission parts of this edge cutting machine are composed of 4 parallel high-precision guides and 2 high-precision screws which can ensure high working speed with small heat generation, lower noise and high precision.

5. Commonly we adopt Chinese top branded electric parts on our edge cutting machine. And we can also adopt world famous branded electric parts according to your request.

6. Optical grating positioning provides accurate cutting on size which can be adjusted by 0.1mm.

7. 10.1' touch screen and PLC controlling provide easy operation and quick reaction.

Technical parameters:

Model: JYSD3600

Applicable veneer length: 3600mm

Applicable veneer width: 15~350~650mm

Total power:10.5kw

Dimensions (L*W*H): 5600*2100*1900

Weight: 10000kg

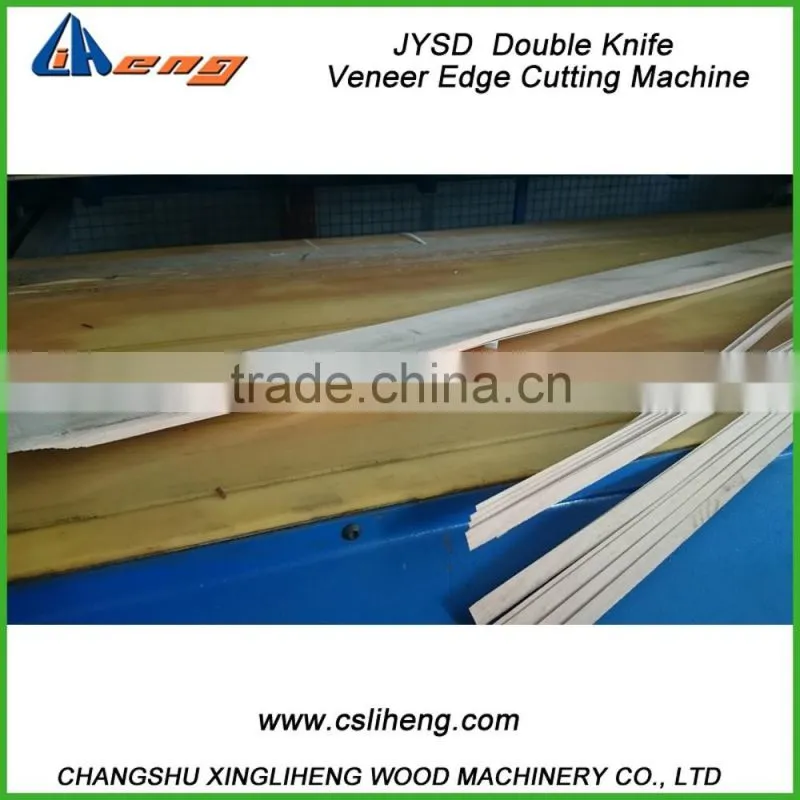

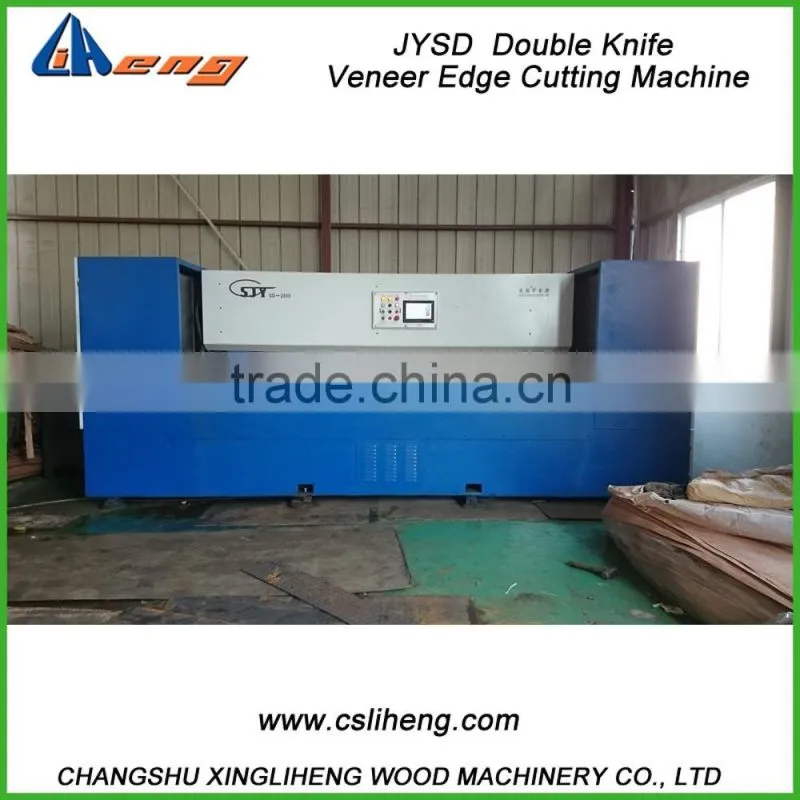

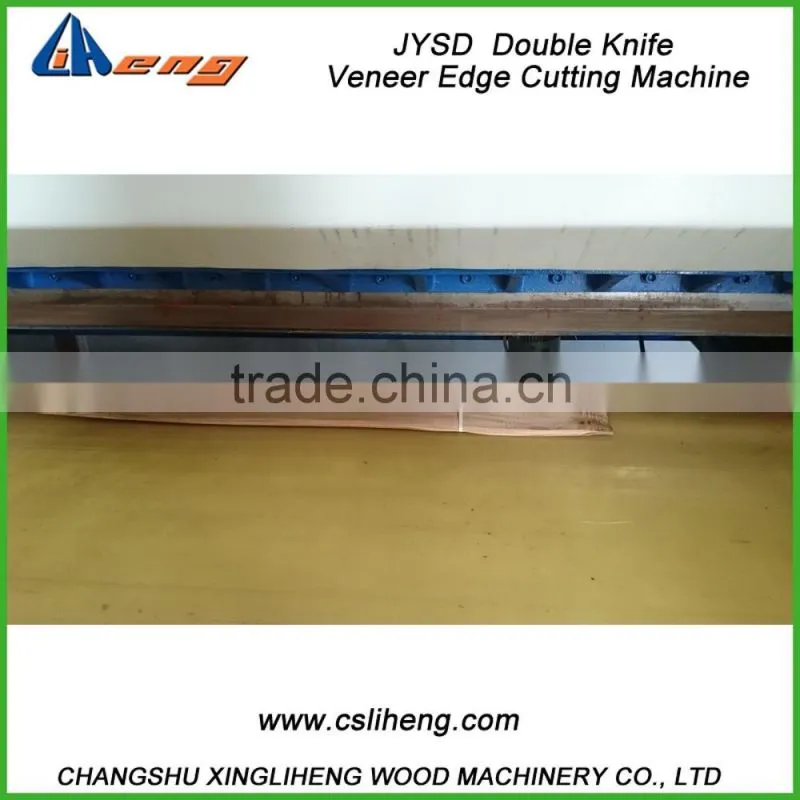

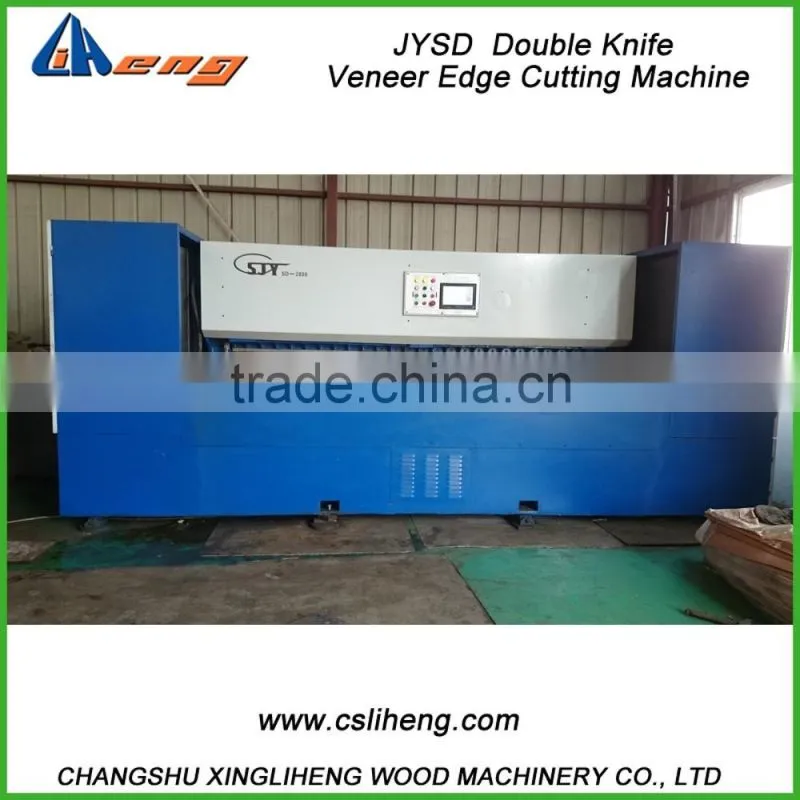

Edge cutting machine for veneer packs pictures

We provide top quality edge cutting machine in China. Our skilled workers and professional designing team are key parts here. Most of the edge cutting machines have been exported and gained reputations from our clients. Please feel free to contact us for more details and welcome to visit us in China!
