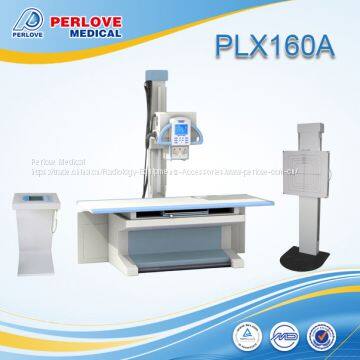

40khz X ray chest machine PLX160A with control console

Usage of stationary 200ma high frequency medical x ray devices

  High Frequency medical X-ray equipment is combined with  type of high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc.

It is  diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine. The machine is especially suitable for photography without power supply, such as the special outdoor environment and emergent incidents.

Paramters of stationary 200ma high frequency medical x ray devices

Table radiography of stationary 200ma high frequency medical x ray devices

Grid density :103L/INCH;  Grid ratio:8:1

Focusing distance:120cm  Stationary type: 15"×18"(import)

Bucky stand radiography  of stationary 200ma high frequency medical x ray devices

Grid density :103L/INCH;  Grid ratio:10:1

Focusing distance:150cm Stationary type:18"×18"(import)

Power supply : 380V±10%  50Hz, Capacity: ≥30KVA

Operation method : close-table graphic program controlled LCD touch  screen operation ;wireless remote control exposure

(Optional: control console of close-table graphic program controlled LCD touch screen operation)

Features of stationary 200ma high frequency medical x ray devices (PLX160A  )

1. It is installed with close-table graphical colorful LCD touch screen, wireless remote control exposure, make the operator easy to use..

2. We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low , to protect the patient better.

3. Adopt the technology of kV and mAs numeral Closed loop control , Real-time control of the microprocessor , which ensure the accuracy and repeatability of the output dose.

4. Be equipped with radiography parameter of multi-part, multi-posture, multi-body type’s  adult ,child physical characteristic, the operator can modify and save the parameter by himself, which make the operation more conveniently.

5. Possess multiple automatic protection and fault clue function, make the operation more safe and reliable.

6. The radiography table can float in any direction, electromagnetic braking, position the patient more convenience and accuracy.

7. X-ray generator component can move round the axis of X-ray generator, crossarm and Pillar stand , be convenient with side and slanting direction projection and radiography of patient on the stretcher.

8. Be equipped with the bucky stand, which is used in the radiography of the head, chest, belly, pelvic cavity, backbone and periphery.

9. Control console of graphic program controlled LCD touch screen is optional, which can set the radiography parameter and exposure in another room.

x ray machine In carton,wooden case,standard exporting package
