Kaishan Screw Air Compressor LG Standard Series - Original Plant Real Products

Kaishan Screw Air Compressor LG Standard Series - Original Plant Real Products thumbnail-1
Kaishan Screw Air Compressor LG Standard Series - Original Plant Real Products photo-1
CNY 10000 - 500000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kaishan
Place of Origin:
China
Model Number:
LG
Contact Supplier Request Quote Chat Now
Kaishan Air Compressor Co. LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kaishan
Place of Origin China
Model Number LG
Certification ISO90001-2008
Type Screw
After-sales Service Provided Engineers available to service machinery overseas
Warranty The whole machine is guaranteed for one year and the host is guaranteed for five years
Weight See details
Dimension(L*W*H) See details
Condition New
Voltage 380V or customizing
Mute Yes
Lubrication Style Oil-less
Power Source AC Power
Configuration Stationary

Excellent supply of open mountain LG standard series screw air compressor - mountain manufacturer's official website

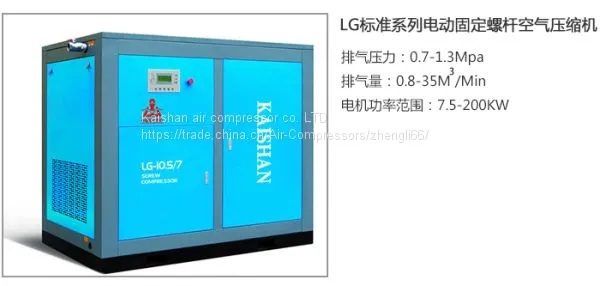

LG standard series electric fixed screw air compressor

Exhaust pressure: 0.7-1.3 Mpa

Air volume: 0.8-35m3 / Min

Air volume: motor power range: 7.5-200 kW

Fixed electric screw air compressor is widely used in factories, mines, water conservancy, transportation, shipbuilding, urban construction, energy, military industry and other industries.

In developed countries such as Europe and the United States, the power use mobile screw air compressor, it can be said that 100% is the screw air compressor.

In China, the screw air compressor is replacing other kinds of air compressor at an alarming rate.

The series screw air compressor has the following main advantages:

Economic operation costs:

The system adopts zero - 100% exhaust volume adjustment.

When the amount of air is decreased, the discharge volume decreases, and the electric current of the motor decreases as well.

When the air is not used, the screw air compressor runs, and the empty car stops automatically.

When air volume increases, recovery of heavy car.

Excellent energy efficiency.

Good environmental adaptability:

Supernormal cooling system design, especially suitable for high temperature and high humidity in Asia.

Vibration isolation technology and excellent noise reduction measures, make, teck screw air compressor installation without special foundation, as long as the room ventilation and maintenance of small, will be able to place your screw air compressor.

High efficiency and reliable imported main engine, adopt K jet oil twin screw air compressor head.

Design features of K series screw rotor type:

Applied the technology of a new generation of K series screw rotor patent type line, the structure of bilateral asymmetric, Yin Yang rotor rotor, the lines of all for circular arc curve and its envelope, determine the gear ratio of fully considering the different demands of different power, low power (45 kw or less) models for 4:5, high-power (55 kw) or higher to suffer.

This patent rotor has outstanding advantages compared with existing other rotors:

A complete realization of "curved surface" meshing, which can help form the hydrodynamic lubrication film, reduce the transverse leakage through the contact zone, and improve the efficiency of the air compressor of the screw.

And improve the processing and inspection performance of the rotor.

Second, using "big rotor, bearing, low speed" design train of thought, speed is lower than other brands of 30 ~ 50%, can reduce the noise and vibration, reduce exhaust temperature, improve the rotor rigidity, prolong service life, reduce the sensitivity to oil and impurities carbide.

3. Power range of 4 ~ 355KW, of which 18.5 ~ 250KW are all straight lines without gearbox, 200KW and 250KW are more 4-pole motor straight, and the speed is low to 1480 RPM.

4. Fully meets and even exceeds the requirements of gb19153-2003, the national standard for the efficiency of the volume type screw air compressor.

Features of variable frequency screw air compressor machine:

Adopt international famous brand inverter module, adopt special improved lifting speed characteristic of the special motor, adopting a particularly suitable for the PID parameters of screw air compressor, the control software has experienced hundreds of screw air compressor, parameter setup is simple, the man-machine interface of goodwill.

In order to adapt to humid heat zone climate, special design is made for the cooling of inverter.

In order to support users to set up their own working pressure, the filter area of filter element of oil and gas separator is increased.

MODEL
kw
m3/min
Mpa
kg
mm
LG-1.2/8
LG-1.0/10
LG-0.8/13		 7.5 1.2
1.0
0.8		 0.8
1.0
1.3		 400 1100×800×1500
LG-1.7/8
LG-1.5/10
LG-1.2/13		 11 1.7
1.5
1.2		 0.8
1.0
1.3		 450 1100×800×1500
LG-2.4/8
LG-2.2/10
LG-1.8/13		 15 2.4
2.2
1.8		 0.8
1.0
1.3		 500 1100×800×1500
LG-3/8
LG-2.7/10
LG-2.3/13		 18.5 3
2.7
2.3		 0.8
1.0
1.3		 600 1200×880×1550
LG-3.6/8
LG-3.2/10
LG-2.7/13		 22 3.6
3.2
2.7		 0.8
1.0
1.3		 650 1200×880×1550
LG-5/8
LG-4.5/10
LG-3.7/13		 30 5
4.5
3.7		 0.8
1.0
1.3		 900 1300×1100×1660
LG-6/8
LG-5.6/10
LG-4.8/13		 37 6
5.6
4.8		 0.8
1.0
1.3		 1050 1300×1100×1660
LG-7.5/8
LG-6.9/10
LG-6/13		 45 7.5
6.9
6		 0.8
1.0
1.3		 1150 1300×1100×1660
LG-10/8
LG-8.7/10
LG-7.5/13		 55 10
8.7
7.5		 0.8
1.0
1.3		 1600 1820×1160×1550
LG-13/8
LG-14.5/7
LG-12/10		 75 13
14.5
12		 0.8
0.7
1.0		 1800 2240×1160×1620
LG-16/8
LG-14.5/10
LG-12/13		 90 16
14.5
12		 0.8
1.0
1.3		 1900 2560×1300×1620
LG-20/8
LG-17/10
LG-15/13		 110 20
17
15		 0.8
1.0
1.3		 2400 2760×1340×1710
LG-22/8
LG-20/10
LG-17/13		 132 22
20
17		 0.8
1.0
1.3		 2500 2760×1340×1710
LG-27/8
LG-25/10
LG-20/13		 160 27
23
20		 0.8
1.0
1.3		 3000 2860×1640×1800
LG-35/8
LG-30/10
LG-27/13		 200 35
30
27		 0.8
1.0
1.3		 3800 2860×1640×1800
LG-44/8
LG-38/10
LG-33/13		 250 44
38
33		 0.8
1.0
1.3		 4500 3430×1950×2090
LG-55/8 315 55
0.8		 4500 3430×1950×2090
LG-62/8 355 62
0.8		 4500 3430×1950×2090
