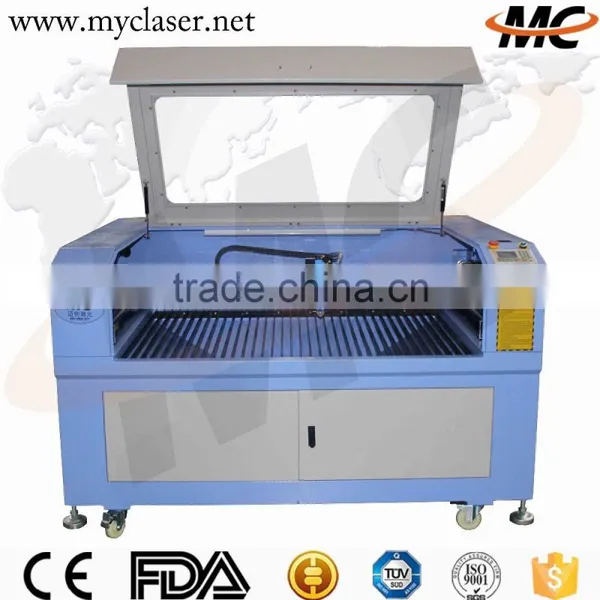

MC1390 stainsless steel / carbon steel / wood / acrylic laser cutting machine
laser cutting machine Feature:
HIWIN square rail, square tube framework machine body, new high efficiency laser tube, red light positioning, advanced DSP control system, ensure high speed, high precision operation, and high work efficiency!
laser cutting machine Technical Parameters:
Model | MC1390 | Option |
Working Area | 1300*900mm | According to Demands |
Laser Power | 40w/60w/80w/100w/150w/180w | |
Laser Type | CO2 Sealed Laser Tube , 10.6μm | |
Cooling Type | Water Cooling | |
Engraving Speed | 0-60000mm/min | |
Cutting Speed | 0-40000mm/min | |
Laser Output Control | 0-100% set by software | |
Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | |
Highest Scanning Precision | 4000DPI | |
Locating Accuracy | ≤+0.01mm | |
Controlling Software | DSP Control System | |
Graphic Format Supported | DST PLT BMP DXF AI ,etc | |
Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | |
Color Separation | Yes | |
Drive System | High-precision 3-phase Stepper Motor | |

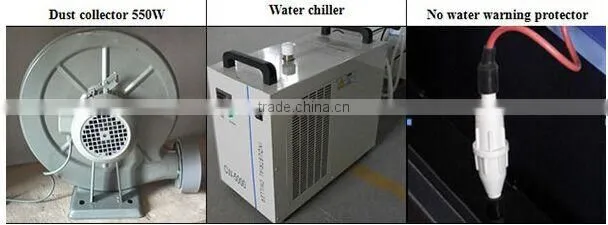

Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | |
Power Supply | AC110V/220V+10%,50HZ/60HZ | |
Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) | |

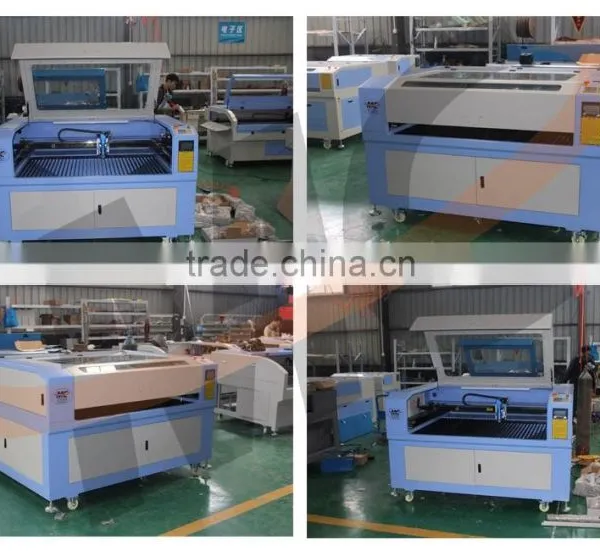

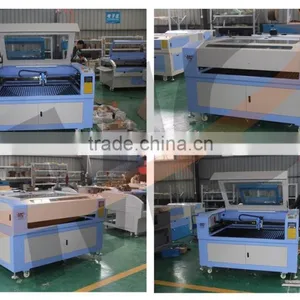

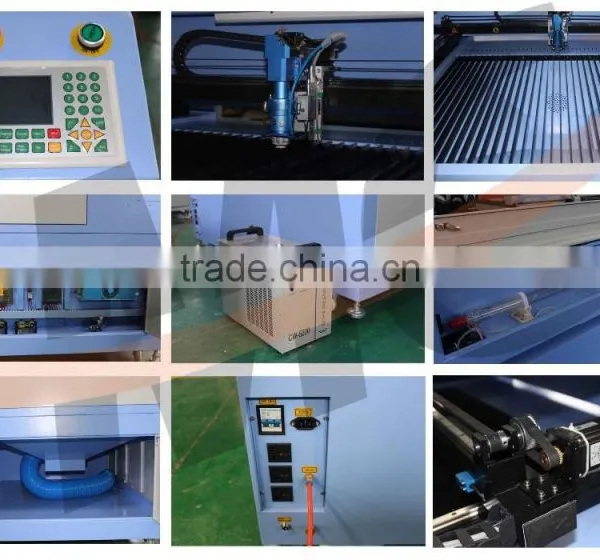

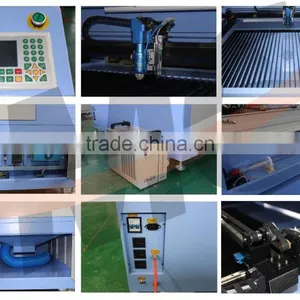

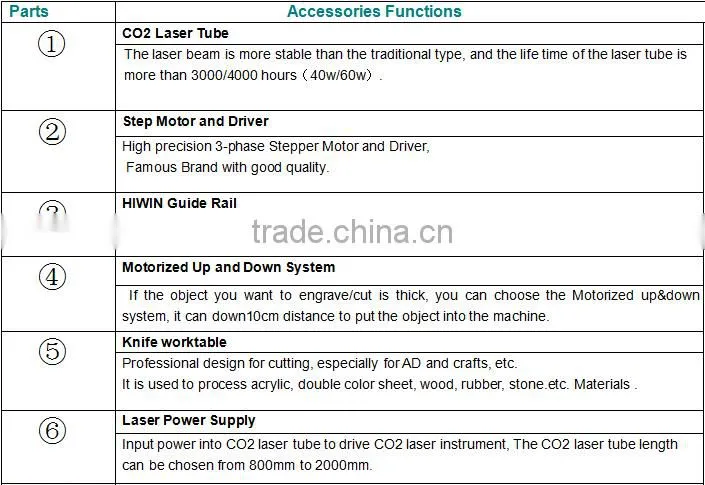

Parts of laser cutting machine :
laser cutting machine Applicable materials:
Acrylic , perspex, glass, wood, stone, marble, gravestone, rubber, leather,fabric, paper, cltoh, dual-colour boards.etc
laser cutting machine Applicabe industries:
1. Stone Industry: marble, granite, white marble etc.
2.Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
3. Advertisement Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.
4. Model Industry: sand table constructtion model,plane model etc.
5. Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.
6. leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.
7. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.

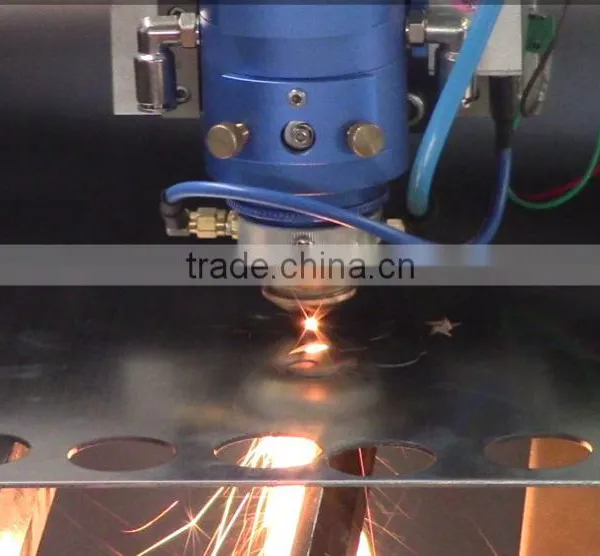

laser cutting machine Samples show :

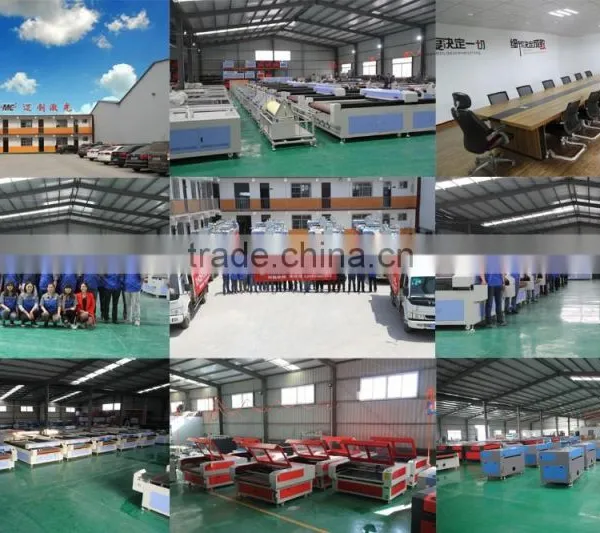

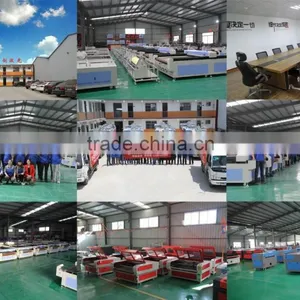

Factory and office panorama:
