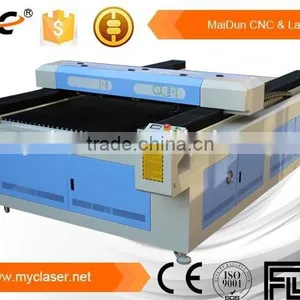

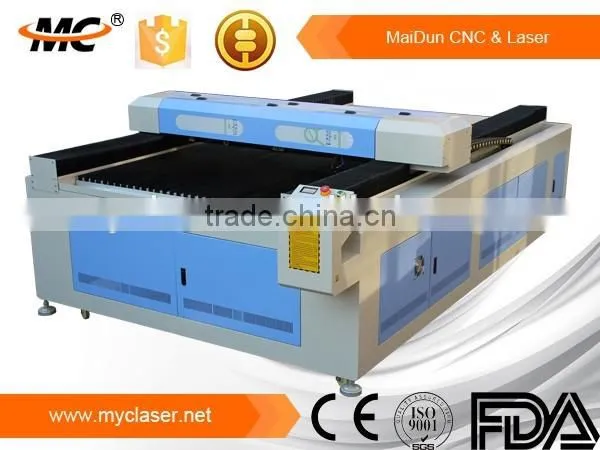

MC1325 260w / 280w mix cutting laser machine lowest price
cnc laser cutting machine
1) metal cutting machine features:
Two heads can be engraved or cut off at the same time. Or one of two heads work alone. please attention that dual head to do same things is operated by control system. to some extend, high efficiencey in a short producing time.
2) metal cutting parameters :
Model |
MC1325 |
Option |
Working Area |
1300*2500mm |
According to Demands |
Laser Power |
60w/80w/100w/130w//150w |
|
Laser Type |
CO2 Sealed Laser Tube , 10.6μm |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
0-100% set by software |
|
Min. Engraving Size |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Accuracy |
≤+0.01mm |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
|
Compatible Software |
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
|
Color Separation |
Yes |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
|
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
|
Working Environment |
Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
|

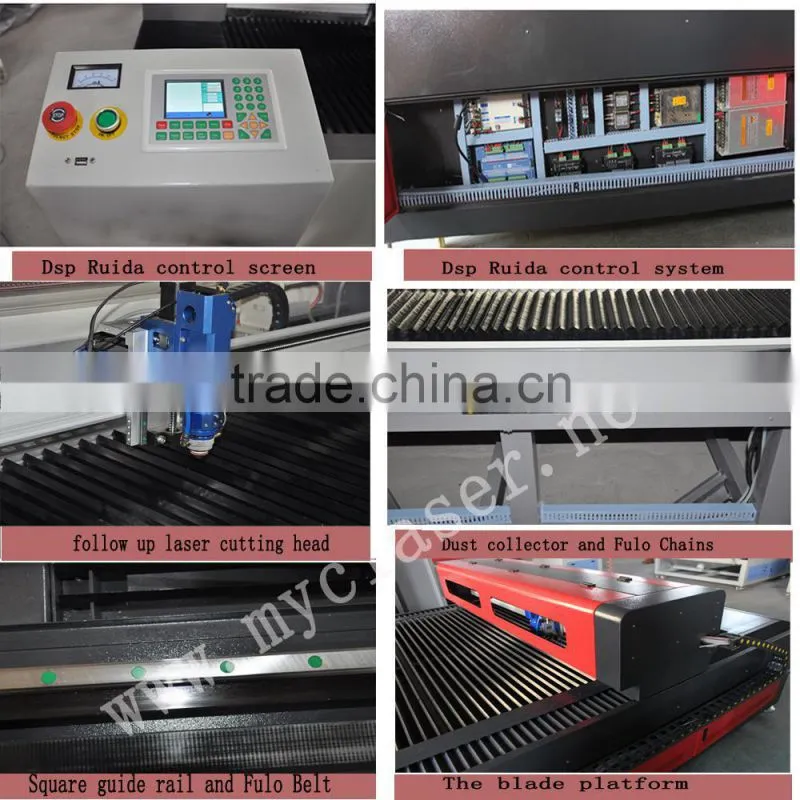

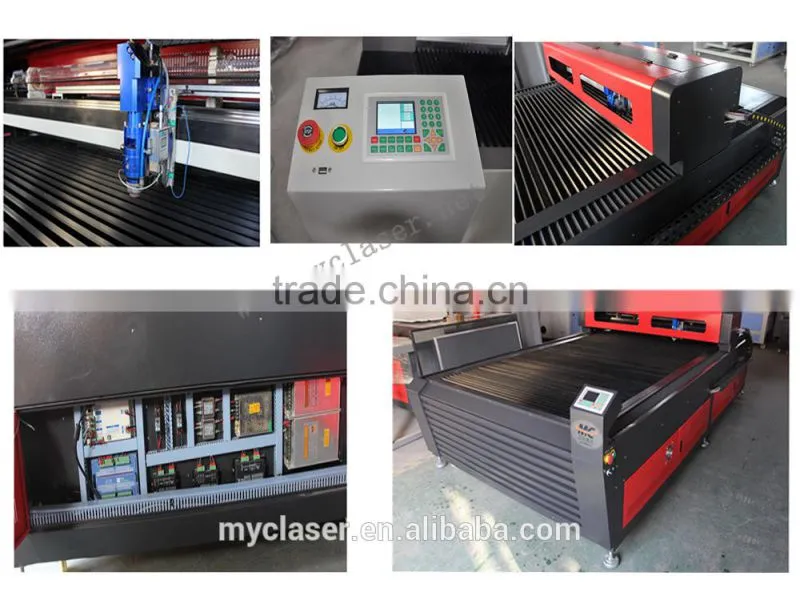

3) metal cutting machine advantages:
- MC 1325 is a mixing cutting machine, widely used in metal and nonmetal cutting and engraving.
- Japan Yaskawa Servo motor to ensure the high precision, running stable and long-operation.
- Special follow up laser cutting head, which can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision.
- RDCAD/CAM Laser Work control system with English Color screen display and compatible with USB, PC and various memeries.
- HIWIN square rail with high precision and stable of cutting.
- The weight of the cutting machine is about 1.2tons, much heavier than others, to reduce the precision error caused by machine vibration.
-
Low running cost which is about 5KVA/hour.

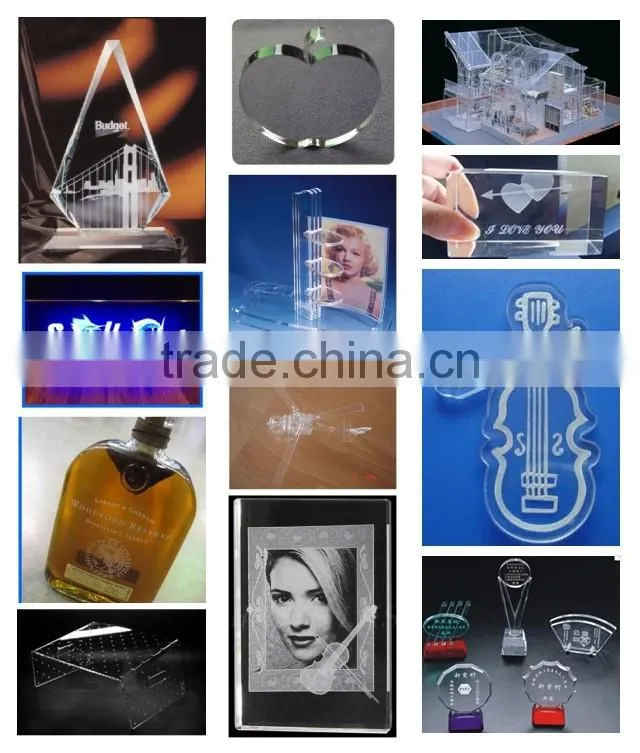

4) metal cutting machine applicable materials:
Acrylic , perspex, glass, wood, stone, marble, gravestone, rubber, leather,fabric, paper, cltoh, dual-colour boards.
5) metal cutting machine applicable industries:
1.artcrafts: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
2. advertisement: double color board,acrylic engraving and cutting,label engraving,crystal etc.
3. model industry: sand table constructtion model,plane model etc.
4. packing:rubber engraving,plastic,doubling plate,die board cutting etc.
5. leather and cloth process:compound leather,man-made leather,fabric,fur ,toy etc.
6. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.

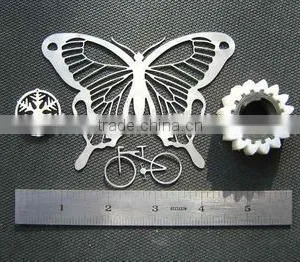

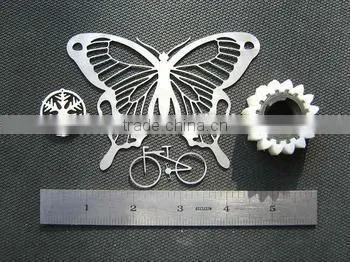

6) metal cutting machine laser sample:
Laser power |
150w |
||||
Material |
Acrylic |
MDF |
Plywood |
Stainless steel |
Carbon steel |
Cutting thickness |
30mm |
10mm |
18mm |
1.5mm |
1.5mm |
Material |
Cutting thickness |
Cutting speed (mm/min) |
|
Stainless steel |
0.5mm |
2700 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
|
Carbon steel
|
0.5mm |
3000 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
Acrylic |
10mm |
300 |
20mm |
90-120 |
|
MDF |
10mm |
300-400 |
8)Our services of metal cutting machine 150watt co2 laser
1)Guarantee for 24 months except comsumable parts .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2)when receiving the your money, we will prepare machine for you,it will spend 2-3days, to get the shipping pictures for you.
3)24-hour technical support Internet or by Telephone, free instructions and Problem solving.
4)Free installation and fully test before sending and free training for operators
9)Packaging and shipping of metal cutting machine 150watt co2 laser
1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
cnc laser cutting machine

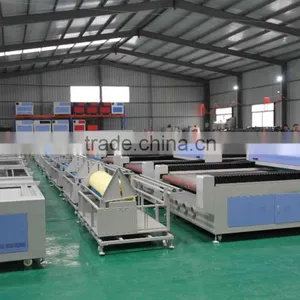

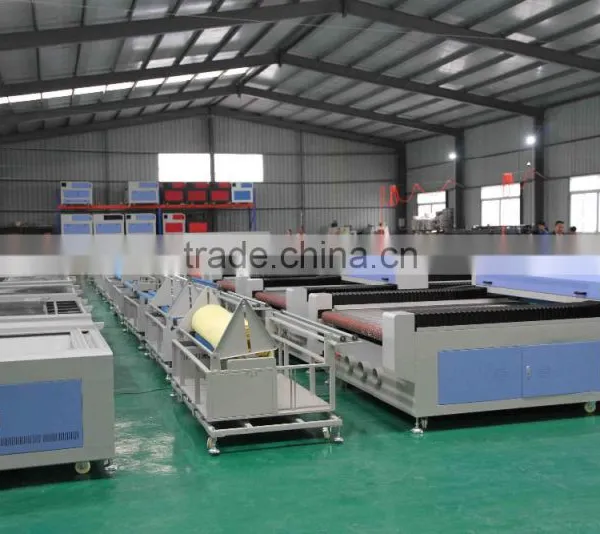

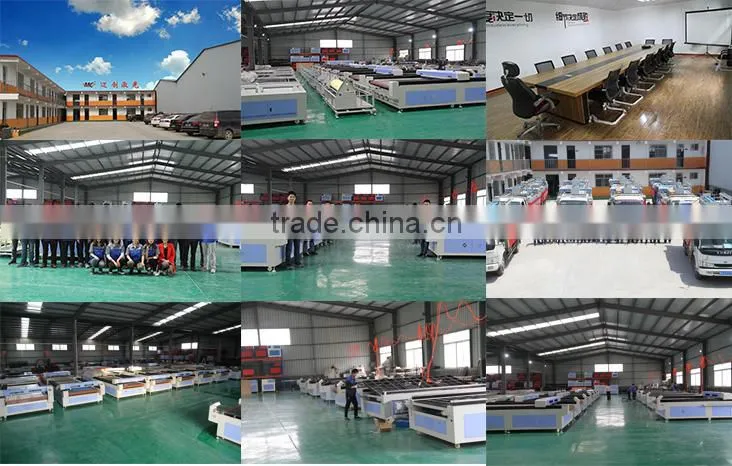

10)Factory and certification:
