Hobby CO2 Laser Cutting wood Machines Price CNC laser cutter MC 1325
Laser cutting machine
Technical parameters of wood Laser Cutting Machine
Processing area |
1300mm*2500mm |
Laser power: |
60w/80w/100w/150w/180w for option |
Laser type |
co2 laser tube |
Cooling type |
water cooling |
Engraving Speed |
0-40000mm/min |
Cutting Speed |
0-60000mm/min |
Laser Output Control |
0-100% set by software |
Min. Engraving Size |
English Letter: 1.0mm*1.0mm |
Highest Scanning Precision |
4000DPI |
Locating Accuracy |
≤+0.01mm |
Controlling Software |
DSP Control System |
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
Compatible Software |
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
Color Separation |
Yes |
Drive System |
High-precision 3-phase Stepper Motor and leadshine |
Auxiliary parts |
Exhaust Fan and Air Exhaust Pipe |
Power Supply |
AC110V/220V±10%,50HZ/60HZ |
Working Environment Temperature |
0-45C |
Humidity |
5-95%( No Condensate Water) |
Total power: |
≤1200W |
Laser cutting machine

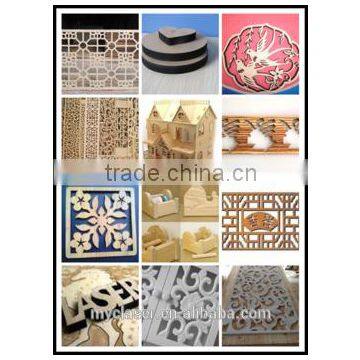

Applicabe industries of wood Laser Cutting Machine
1. Stone Industry: marble, granite, white marble engraving etc.
2. Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
3. Advertisement Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.
4. Model Industry: sand table constructtion model,plane model etc.
5. Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.
6. Leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.
7. Other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.
Features of wood Laser Cutting Machine
Laser cutting machine
- High efficiency laser tube, the laser beam is more stable than the traditional type, and the life time is more than 10000 hours.
- Independent laser tube cabinet, protect tube and easy change
- Transparent Flameproof tempered glass watching door, easy checking work process.
- More scientific design and high-strength steel-frame structure, which increase the fuselage strength and prevent the machine from distortion during long term work.
- Stainless steel working table, avoid rust.
- HIWIN square rail, high accuracy.
- Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function.
- USB offline control system, which makes the operation more convenient and faster.
- Easy operation and maintenance.

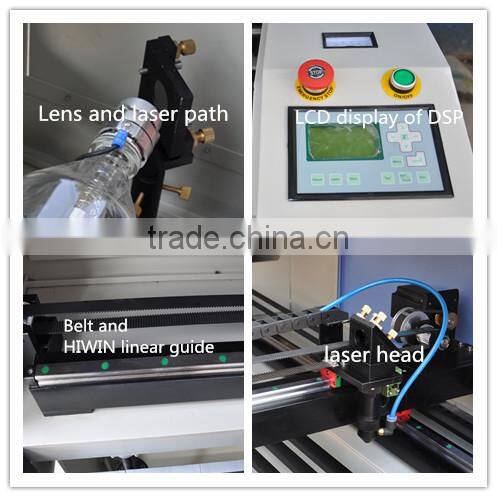

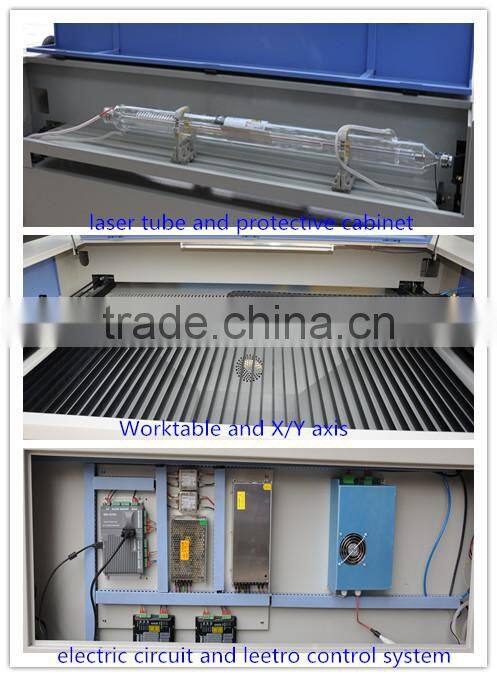

Detail pictures of wood Laser Cutting Machine
Opitional device of wood Laser Cutting Machine
- Auto-focus device(optional part: red ) next to laser head, mainly to confirm automatically the distance between laser head and processing materials before cutting.
- Red dot postion shows you where the laser beam work in.
- Motorized up and down worktable: you can put on less than 25mm materials on the surface of worktable.
- Water chiller is used to cool laser tube down during working
- less than 80w laser power, it is better to choose Cw3000 water chiller.
- more than 80w laser power, it is better to choose Cw5000 water chiller
Auxillary parts of wood Laser Cutting Machine

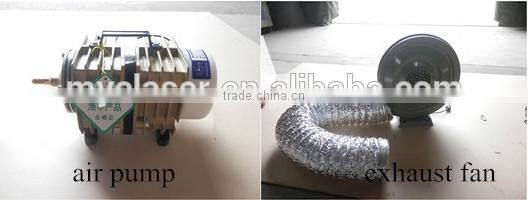

- Air pump is used when to process acrylic, glass,fabric, stone,etc. to keep high quality processing effect.
- Exhuast fan mainly used to exhaust smoke or dust, specially to engrave or cut off wood,fabric,etc.

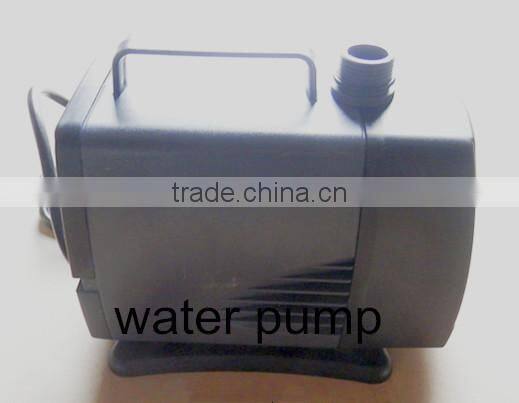

- Water pump (water chiller )used to cool the CO2 laser tube
Shipping and Packaging
1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping
time.
2.All the spare parts of the machine were covered by some soft materials,mainly
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding
Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport
We offer
•Sea Transportation
•Land Transportation
•Air Transportation
If you are interested in our products or our services, please contact us, you will get the best reliable products in reasonable prices.
Looking foward to cooperate with you soon.
