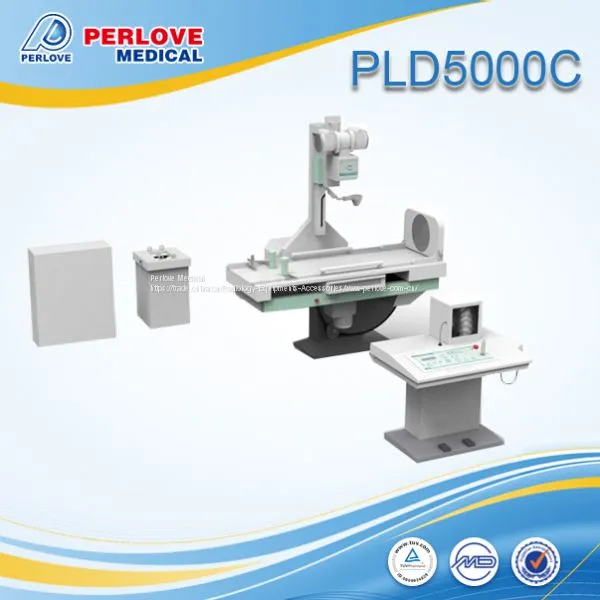

Help CenterDistributor of Gastrointestional X Ray System PLD5000C for ERCP
Related Products
-
25kw C-arm Machine PLX7100A for Cervical Spine ImmobilizationUS$ 1 - 1000000MOQ: 1 Set -
Affordable X-ray Equipment for Gastro-intestional PLD5800CUS$ 1 - 1000000MOQ: 1 Set
-
Famous Brand Digital Xray System PLD7200B With Imported GeneratorUS$ 1 - 1000000MOQ: 1 Set
-
High Frequency Mono Block Generator for Small C-arm PLX112EUS$ 1 - 1000000MOQ: 1 Set
-
Radiology Room X Ray Machine Table PLXF52US$ 1 - 1000000MOQ: 1 Set
Usages of high frequency x ray machine price in pakistan
This surgical x ray machine must only be operated by the professional who has necessary radiation knowledge and get professional training.
This machine is used to photograph patient’s esophagus, chest, gastrointestinal, abdomen, limbs etc for common radiography, Beam Limiting Device radiograph and high KV radiography.
Technical parameters of high frequency x ray machine price in pakistan
Power condition |
|
Three phase four line |
AC 380V ± 38V, 50Hz ± 1Hz |
Power inner resistance |
no more than 0.17∏ |
Power content |
no less then 50kVA |
Using environment |
|
Environment temperature |
10℃-40 ℃ |
Relative humidity |
30%-85% |
Atmosphere air pressure range |
70KPa-106KPa |
X-ray high voltage generator |
|
Maximum Power |
40kW |
Dual-focus |
1.0/2.0 |
kV Range |
44~125kV |
Inverter Frequency |
50HZ |
mA Range |
Exposal:32~500 mA Fluoroscope:0.5~5 mA |
mAs Range |
Large focus:4~400mAs; Small focus :0.64~320mAs |
Heating Power |
300W |
Monitor |
14" high definition medical monitor |
Features of high frequency x ray machine price in pakistan
1.The console applies LCD display photograph term, the device have the mA, kV of photograph table projection chosen are controlled by procedure interlock, be separate ,not disturb.
2.Use the microprocessor limited-time control, to achieve the precise control of the expose time.
3.Select the exposure tube current at the same time to determine the focus.
4.This machine adopts mA, KV, s three parameters free matching work method.
5.The limit time of fluoroscope of this machine is controlled by program.
6.Expose mode of this machine use two-step hand-swicth control mod, hand swicth control circuit adopt a safe voltage control.
x ray machine In carton,wooden case,standard exporting package
