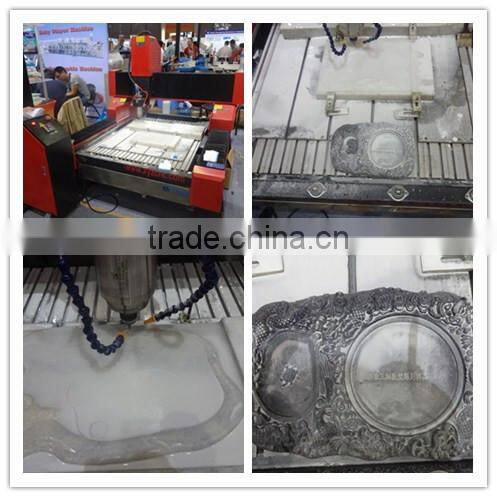

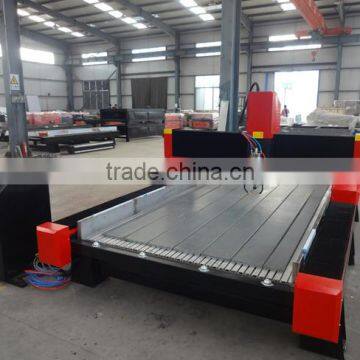

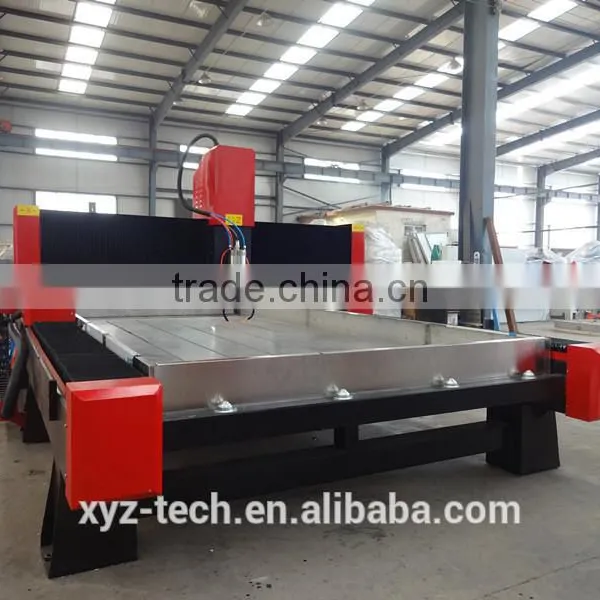

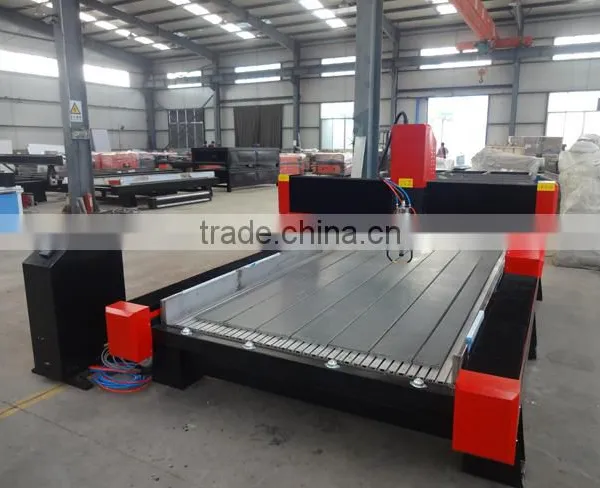

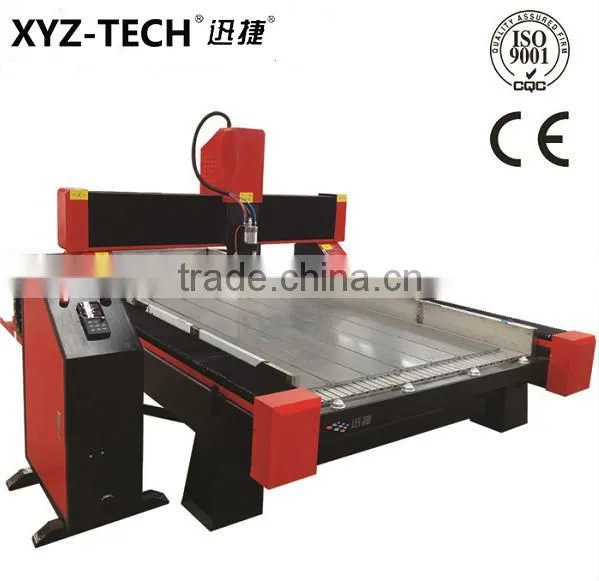

1325 stone processing 3 axis DSP off-line controlled cnc router / wood working machinery price
Feature
1. Adopting linear guide rail which can adjust gap and change track, the life can be as long as 10 years. Comprehensive performance is the best.
2. Cast iron platform with the box structure to ensure high rigidity and precision;
3. High performance, high power spindle motor, low noise, strong cutting ability;
4.Compatible Type 3, Artcam, Castmate, Wentai etc. CAD/CAM design software;
5.Have the function of power restored, power outages continued carving, processing time
forecast function,humanized design.
Parameter
Model: | XJ1325 |
Machine body: | Whole cast iron |
Transmission | XYaxis use rack-gear,Z axis ball screw |
X,Y-axis working area : | 1300*2500mm |
Z-axis working area: | 150 or 200 mm |
Cut thickness of material: | ≤40mm |
Max. Speed: | 8000mm/min |
Working speed : | 0-6000mm/min |
Mechanical precision: | 0.01mm |
Compatible Software: | Type 3 software , Artcut software , Artcam software |
Power source: | AC220/50HZ |
Driver type: | Stepper motor (XYZ-85BYG motor) |
Memory: | Without or DSP |
Spindle: | 3.0KW(100mm)variable speed , water-cooled motor |
Spindle speed: | 0-24000rpm |
Blade diameter: | 3.175mm,4mm,6mm |
Control system: | NCSTUDIO or DSP(USB interface) |
Command: | G code ,u00,mmg,plt,HPGL |
Running circumstance temperature: | 0-45°C |
Relative humidity: | 30%-75% |
Optional: | Rotary axis , vacuum table and dust collector |
All products have CE.
9 Year gold supplier on alibaba
1.What will you do if some parts broken within guarantee time(1 year)?
We will send free parts to clients or clients send the parts back to us,we repair
them then send them back.
2.What if some parts or machine broken without guarantee time?
You need to pay for spare parts’ agent cost & the shipping cost.
3.Can you produce machine as per clients requirements ?
Yes,we can
4.Provide OEM service?
Yes, we do.
