jinan 1825 multifunction top professional cnc router machine guangzhou price
1. Main Introduction of jinan 1825 multifunction top professional cnc router machine guangzhou price

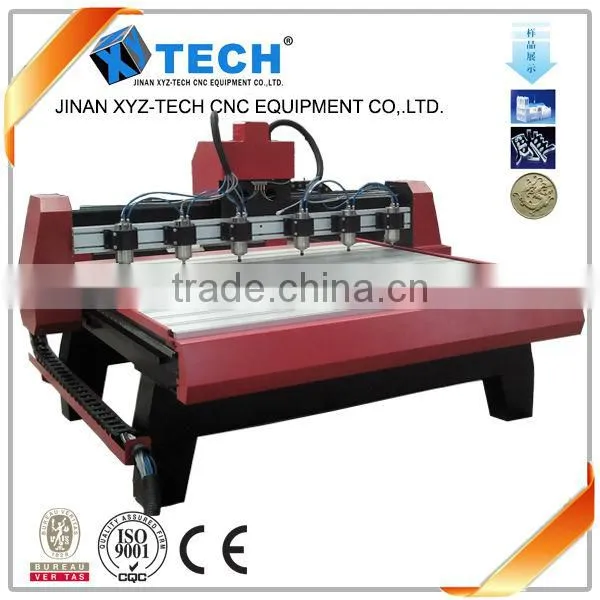

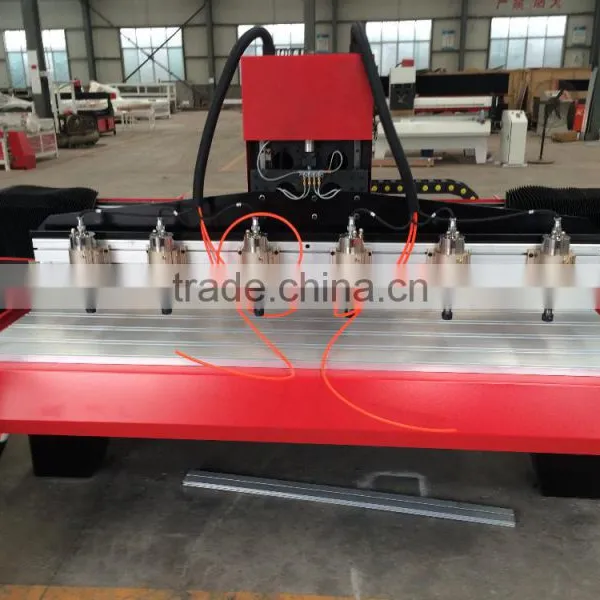

The machine has one head with six spindles,the six spindles can do six simliar patterns at the same time,so you could save lots processing time and can realise mass production.

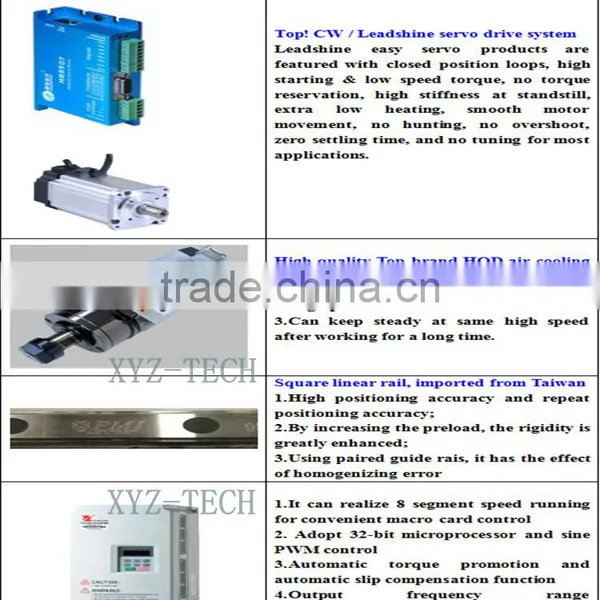

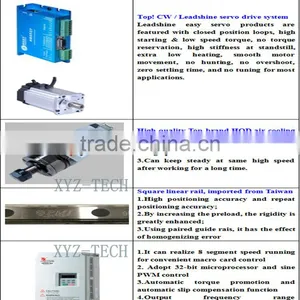

2. Top components of jinan 1825 multifunction top professional cnc router machine guangzhou price
1) Driver device with high subdivision, running at high speed of 35000mm/min, can realize the synchronization of the curve line and straight line processing.
2) configured with splendid control cabinet, operate easily.
3) configured with 2.2-3.0kw inverter-driven constant power spindle motor cooled by water with the high speed, good performance, large torque, high efficiency.
4) adopt DSP controlling system, can work without computer and transimit files directly from USB flash disk with large capacity and large LCD display.
5) own functions of restoring from power off and saving from break point. and function of automatic tool sensor etc.
6) support 9 coordinates positioning, user friendly designing.
7) compatible with Type3, ArtCam, Pore, UG and other software of CAD/CAM
3. Technical Parameter of jinan 1825 multifunction top professional cnc router machine guangzhou price
1 |
Spindle motor |
1.5kw water Cooling spindles*6 sets |
||
2 |
Working Mode |
Stepper motor |
||
3 |
Control system |
NC studio control system |
||
4 |
Drive Mechanism |
Gear-wheel on x,y axis |
||
5 |
Table surface |
T- slot extrusions |
||
6 |
Frame |
Wholly wheel structure |
||
7 |
Motion Positioning accuracy |
±0.03/300mm |
||
8 |
Repositioning Accuracy |
±0.05mm |
||
9 |
Max motion speed |
50,000mm/min |
||
10 |
Max engraving speed |
25,000mm/min |
||
11 |
Rotation speed of Spindle |
2,4000rpm/min |
||
12 |
Z-axis setting |
Auto Z origin tool high sensor |
||
13 |
Dictate Formate |
G code, *.u00, *.mmg, *.plt |
||
14 |
Operating Voltage |
3 phase 380V |
||
15 |
Software |
Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software |
||
16 |
Packing Size |
3350*1950*1990mm |
||
17 |
Lubrication System |
Oil lubrication system |
||
18 |
Net weight/ Gross Weight |
1227kg/ 1240kg |
||
19 |
Noise Level |
Racing |
LAeep dB(A)72±1 |
|
20 |
Engraving |
LAeep dB(A)80±2 |
||
Engraving Peak |
LAeep dB(C)95 |
|||
Optional Parts |
Dust Collecting System |
|||
Vacuum Table with Air Pump (For XJ-1224,1325) | ||||
Mist Sprayer and flume | ||||
Rotary device with Dia80mm/100mm/200mm | ||||
DSP System w/Portable Control Pad (128MB) | ||||
1) What payment you accept?
1,T/T inadvance 2.western union 3 . Trade Assurance
2) I did not imported before , how should i do ?
You only need pay to us , we will arrange all the things to you and teach you how to do .we will
prepare all the documents to you , you don't need worry , because we know what you need .
3) Do You Arrange the ship For us?
Yes ,for FOB or CIF price, we will arrange shipment for you.
4) How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
If you have any interesting and question about cnc router machine,Pls kindly contact me directly and welcome to visit our factory!
