Specifications
metal engraving and cutting machine1Professional cnc control system
2engraving and cutting machine
3CE
4engraving&cutting

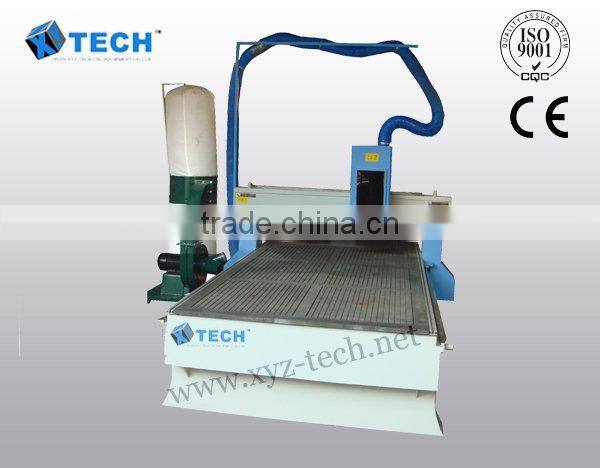

XJ1325 Professional metal engraving and cutting machine(CE)
description:
>The Lathe bed is one-piece cast Iron and will never warp. >Two-motor drive system ensures quick, even, stable operation
>The vacuum cleaning system offers a clean working environment and better quality
>High performance Subdivision stepper motor operates smoothly at maximum speed.
>Highly accurate gears allow for engraving characters as small as 1.5mm
>The unique calculating system realizes speedy, accurate, curvy operation
>Large Water-cooled High-Frequency High-Power Motor features low noise, constant speed, and long operational life
>12 Month Warranty on parts and Labour
Technical specification:
Model | XJ1325/XJ2030 |
Working Area | 1300×2500×200mm/ 2,000×3,000×200mm |
Spindle Motor | 3kw/4kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option) |
Working Mode | Stepper motor |
Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system |
Drive Mechanism | Gear-wheel on x,y axis |
Table Surface | Vacuum table o& T-slot extrusions |
Frame | wholly steel structure |
Motion Positioning Accuracy | ± 0.03/300mm |
Repositioning Accuracy | ± 0.05mm |
Max Motion Speed | 50,000mm/min |
Max Engraving Speed | 30,000mm/min |
Rotating Speed of Spindle | 2,4000rpm |
Z-axis setting | Auto Z origin tool high sensor |
Dictate Formate | G code, *.u00, *.mmg, *.plt |
Operating Voltage | 3phase 380v |
Software | Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software |
Packing Size | 3350×1950×1990mm |
Optional Parts | Dust Collecting System |
Vacuum Table with Air Pump (For XJ-1224,1325) | |
Mist Sprayer and flume | |
Rotary device with Dia80mm/100mm/200mm | |
DSP System w/Portable Control Pad (128MB) |
Proper Features
Lathe bed is cast wholly and firmly and will not deform. Imported ball screw rod and round guide rail to ensure accuracy High speed driver stepper motor could enhance work efficiency Dust-proof and water-proof device makes the machine be preventive from dust and water and favorable for maintenance..... Humanlistic design,the machine can be disassembled,so it is easilly transported. Applicablematerial:microlite,naturalgranite,seeing stone,marble,bowlder,bluestone ,rostone,glass,aluminum,iron,plastic and wood etc.
Update Date:2011-3-26 2:57:13
