high quality 3636 mini desktop cnc router motor spindle cnc router spindle motor

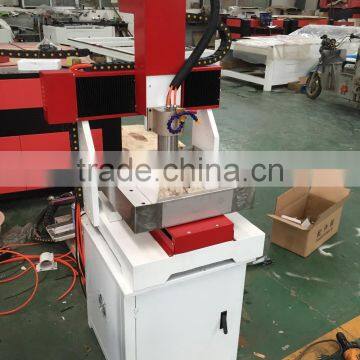

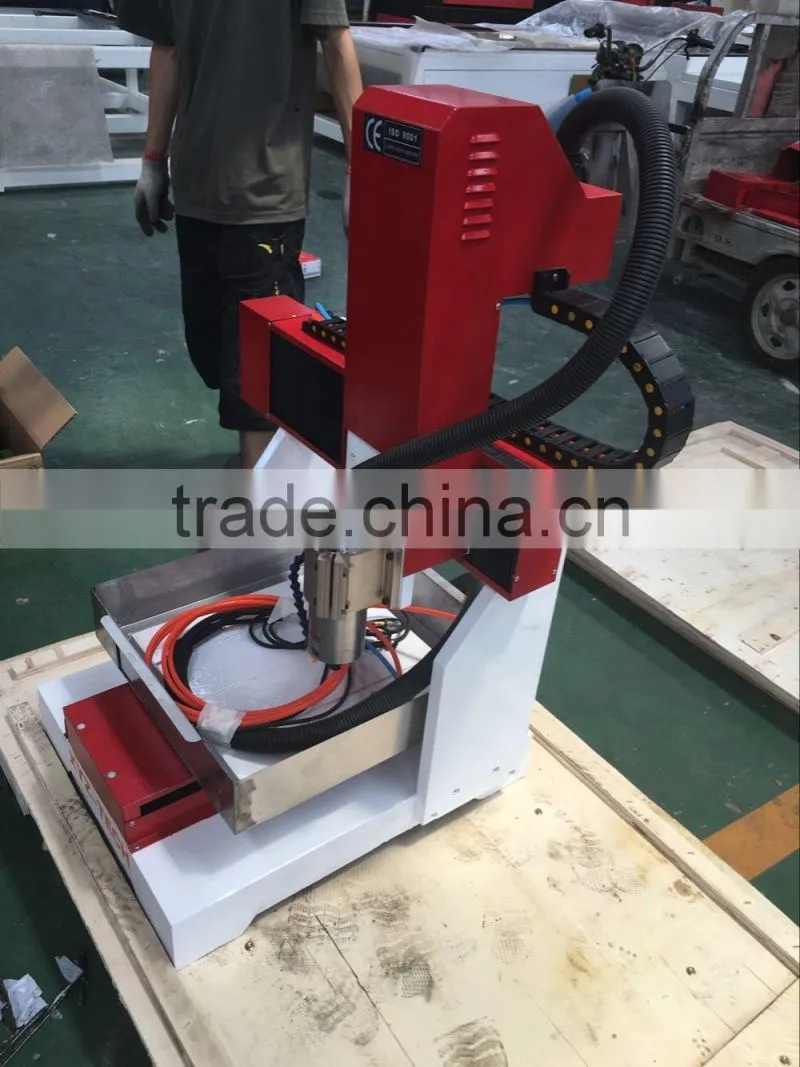

1.The real machine pictures:
2.The parameters of cnc router:
Model | XJ3636 |
Working Area | 360*360*100mm |
Structure,Table Material | Casting iron |
Spindle Motor | 2.2kw Water-Cooling Spindle |
Inverter | Fuling Inverter |
Rotating Speed of Spindle | 2,4000RPM |
Working mode | 450A Stepper motor and driver |
Drive mechanism | Taiwan imported balls crew for x,y,z axis |
Linear guide rails | Square rails from Taiwan |
Motion positioning accuracy | ± 0.02/300mm |
Repositioning accuracy | ± 0.0254mm |
Max motion Speed | 10,000mm/min |
Max working speed | 6,000mm/min |
Engraving Tools | ER11 collect(Ø3.175mm, Ø6mm) |
Dictate Formate | G code, *uoo, *mmg, *plt,*nc |
Operating voltage | AC220V/50~60Hz |
Control system | NC Studio control system |
Interface | USB |
Flash Memory | 128M |
Software | JDPaint, ArtCAM, Type3 software Optional |
Packing | Standard Plywood Package for Export |
Packing Size | 1.45*0.85*1.08m |
Net weight | 200KGS |
Gross weight | 230KGS |
Chuck | with |
Delivery Time | 7-14 Working Days |
Machine Color | Red&White, Red&Black, Blue&White |
Payment Terms | T/T (30% T/T Advance Payment, 70% T/T Balance Payment Before Delivery) |
3.The features of cnc router:
1).Internalast lathe bed, solid and stable, without distortion.
2). Imported ball screws ensures stable and smooth movement of the machine.
3). Water-cooling brushless spindle, low noise, vigorous cutting strength
4). Suision driver ensures fast speed and high accuracy.
5). Dust-proof and water-proof design ensures the maintenance more easily.
4.Applicable area:
microlite,nature granite,stone,marble,bowlder,rostone,glass,aluminum,iron,and wood etc.
Industry:stone prcessing,metal processing,mould making,sign making and so on.
5.Samples:
Perhaps you do not know whether our machine can process your materials or
not? Feel free ask me
My WhatsApp: 008618765893695

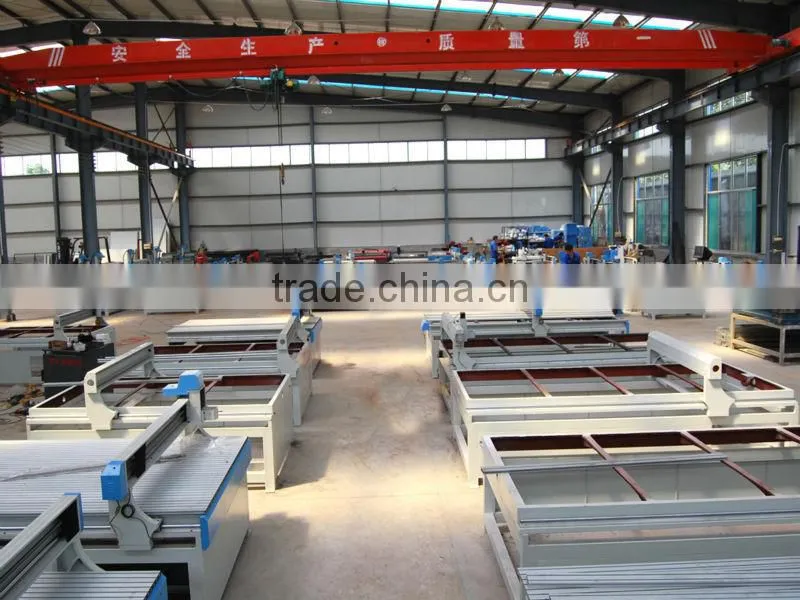

6.Company Information:
Our company was established in 1994,we are manufacture and specilized in laser engraving and cutting
machine,cnc router,plasma cutting machine and cutting plotter.
From 2007,we have expanded our bussiness
to worldwide.In the past 12 years,so many clients all over the world cooperated with us and built a good
business realtions.We have much experiece on our after-sale problems.
7.Certification:
8.FAQ:
1. How long is the delivery time?
For standard machines, it would be 7- 12 working days; For nonstandard machines
and customized machines according to clients specific requirements, it would be longer.
2. How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, Alibaba Secure payment, Paypal.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For
EXW price, clients need to arrange shipment by themselves or their agents.

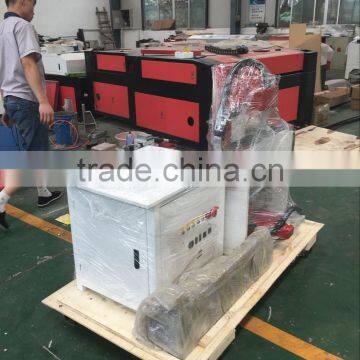

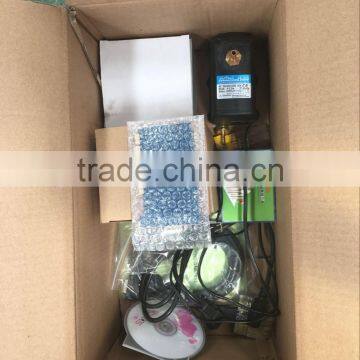

9.Packaging:
10.Our service:
♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 18 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery
Maybe this model can not meet all your demands. It does not matter, tell me the information about your material. We will recommend the most suitable machine for you.
